Remove/Install Antenna - AR82.70-P-8951GW

Model 463 (except 463.202/236/241/242/248)

as of model year 2013 up to model year 2019

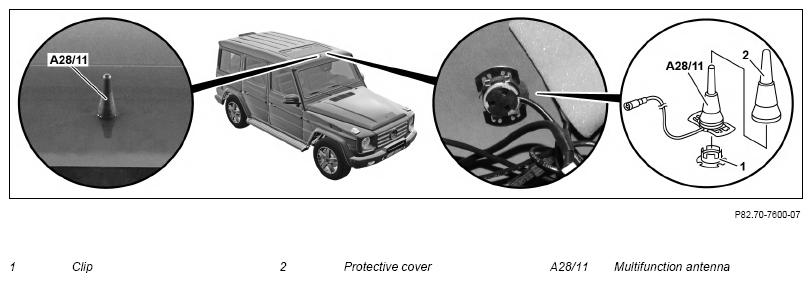

Fig 1: Antenna Components Location - Model 463 (Except 463.202/236/241/242/248) As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove overhead control panel control unit	Hang overhead control panel control unit to side only. The electrical connectors need not be detached.	AR82.20-P-1000GW
2	Disconnect electrical connector from multifunction antenna (A28/11)
3	Detach protective sleeve (2) from multifunction antenna (A28/11)	Press on protective sleeve (2) using assembly tool. Assembly tool II	Fig 2
4	Detach clip (1)
5	Release multifunction antenna (A28/11) using assembly tool and remove downwards	Push in multifunction antenna (A28/11) from below until it securely engages in outer skin of roof. Assembly tool I	Fig 3
6	Install in the reverse order

Fig 2: Identifying Assembly Tool II (210 589 05 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Assembly Tool I (210 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
