Remove/Install AUX Jack - AR82.60-P-1026GW
Model 463
as of model year 2013 up to model year 2019
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove center console | AR68.20-P-2000GW | |

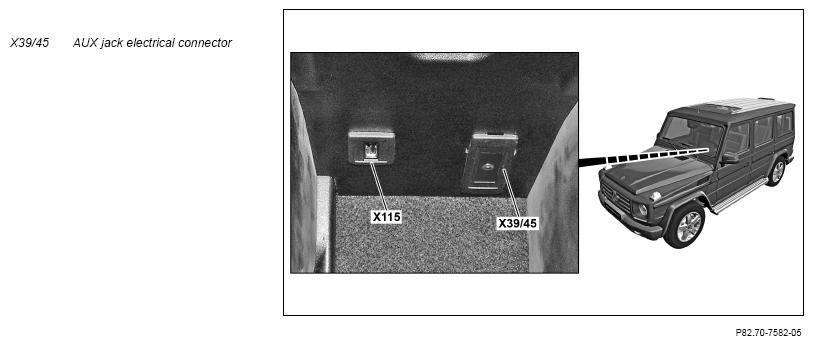

| 2 | Disconnect AUX connection electrical connector (X39/45) from center console | ||

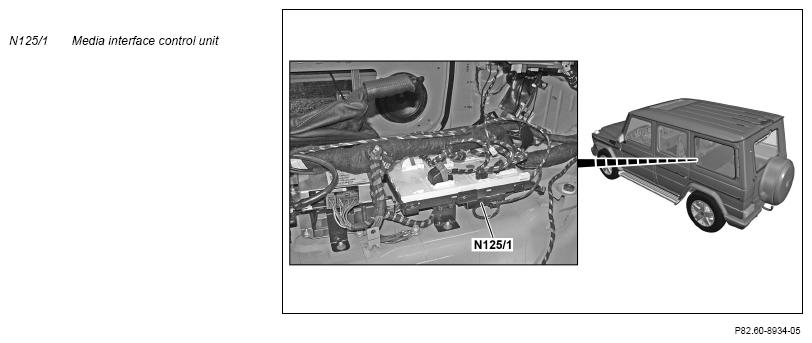

| 3 | Disconnect electrical connector from Media Interface control unit (N125/1) | ||
| 4 | Install in the reverse order | ||
| 5 | Read out and clear the fault memory using Star Diagnosis | ||
| AD00.00-P-2000-04A |
