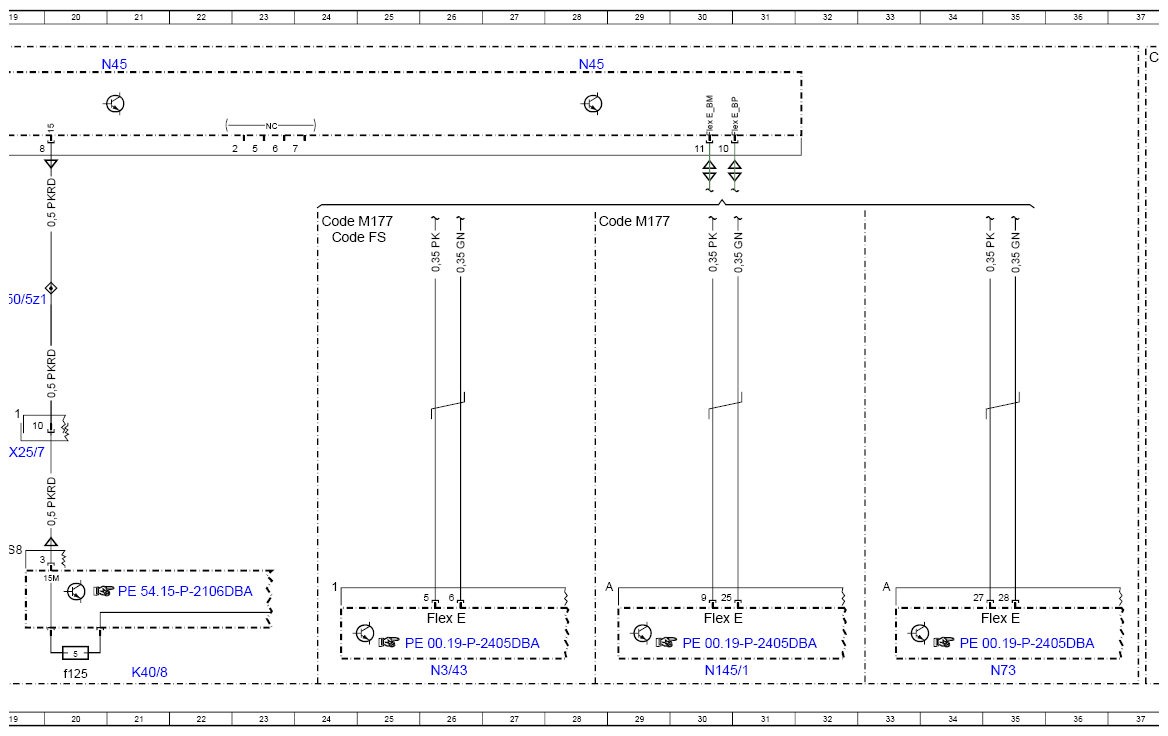

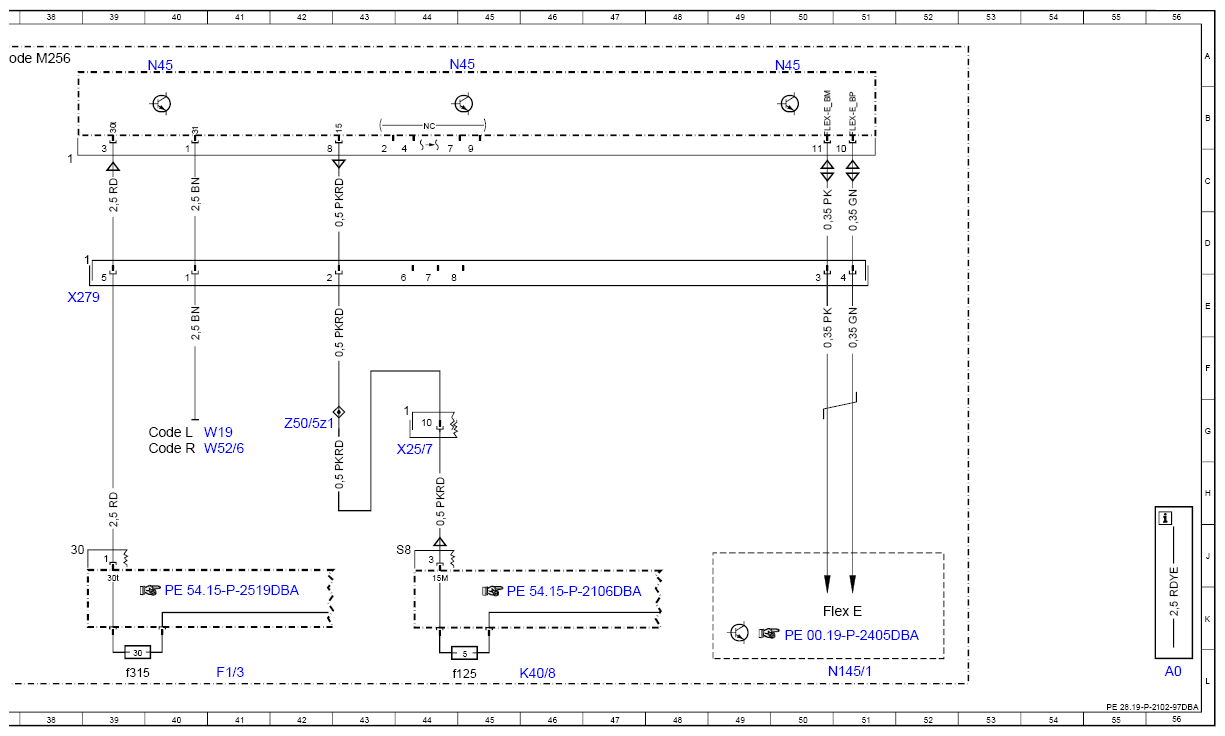

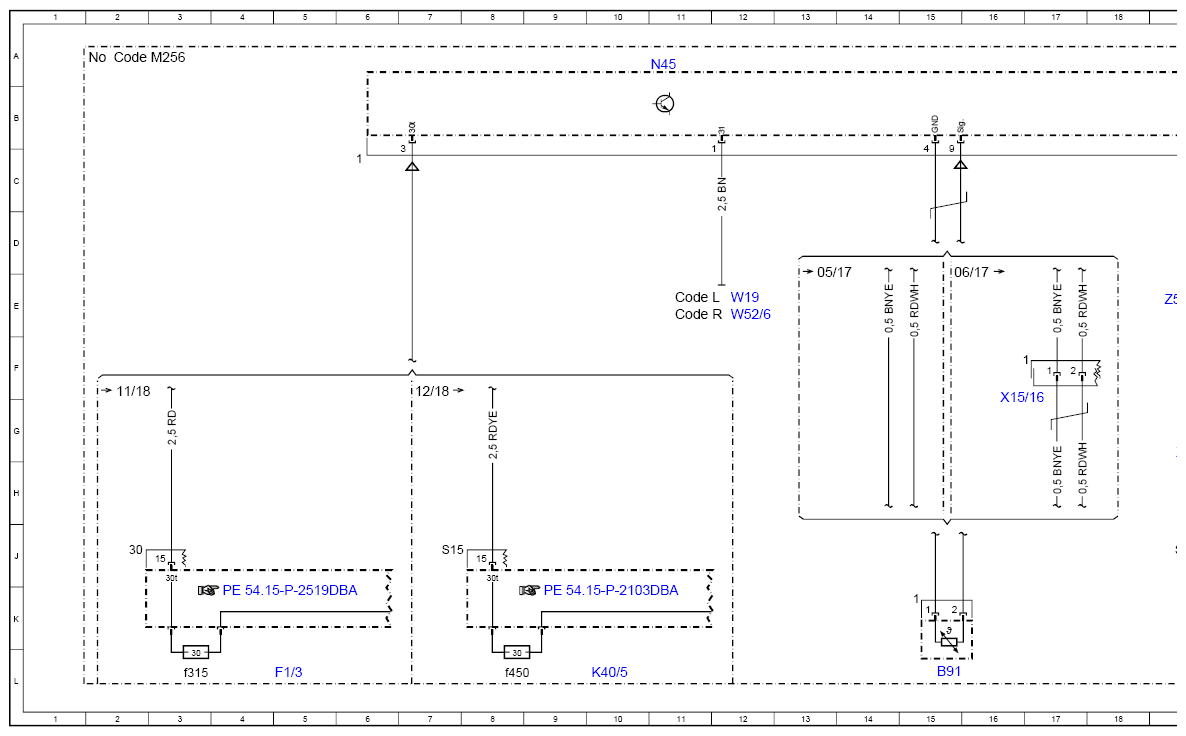

Wiring Diagram For All-Wheel Drive Control Unit - PE28.19-P-2102-97DBA
Model 213 with engine 177 with transmission 725.096 up to model year 2021
with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M40 (Displacement 4.0 liter) Control unit N45
Model 213 with engine 256 with transmission 725 up to model year 2021
with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Control unit N45
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| B91 | Transmission oil temperature sensor | 15L |
| Code FS | STATION WAGON | 24D |
| Code L | LEFT-HAND DRIVE | 40G |
| Code L | LEFT-HAND DRIVE | 11E |
| Code M005 | 4MATIC | |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 24D |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 28D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 37A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 2A |
| Code R | RIGHT-HAND DRIVE | 40G |
| Code R | RIGHT-HAND DRIVE | 11E |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3 | Passenger-side A-pillar fuse box | 41L |
| F1/3f315 | Fuse 315 | 3L |
| F1/3f315 | Fuse 315 | 39L |
| Flex E | Chassis FlexRay | 26K |
| Flex E | Chassis FlexRay | 30K |
| Flex E | Chassis FlexRay | 35K |
| Flex E | Chassis FlexRay | 50K |
| K40/5 | Rear fuse and relay module | 10L |
| K40/5f450 | Fuse 450 | 8L |
| K40/8 | Engine fuse and relay module | 21L |
| K40/8 | Engine fuse and relay module | 46L |
| K40/8f125 | Fuse 125 | 20L |
| K40/8f125 | Fuse 125 | 45L |
| N145/1 | Drive unit control unit | 30L |
| N145/1 | Drive unit control unit | 51L |
| N3/43 | AMG sports suspension control unit | 26L |
| N45 | All-wheel drive control unit | 11A |
| N45 | All-wheel drive control unit | 28A |
| N45 | All-wheel drive control unit | 21A |
| N45 | All-wheel drive control unit | 40A |
| N45 | All-wheel drive control unit | 50A |
| N45 | All-wheel drive control unit | 44A |
| N73 | Electronic ignition switch control unit | 35L |
| W19 | Right front seat crossmember ground point | 40G |
| W19 | Right front seat crossmember ground point | 12E |
| W52/6 | Right center longitudinal member ground point | 40G |
| W52/6 | Right center longitudinal member ground point | 12E |
| XI5/16 | Transmission oil temperature sensor electrical connector | 16G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 19G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 44G |
| X279 | All-wheel drive control unit electrical connector | 39E |
| Z50/5z1 | Tml. 15 connector sleeve | 19E |
| Z50/5z1 | Tml. 15 connector sleeve | 42G |
