Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary - AR40.20-P-0301LW

Model 205

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

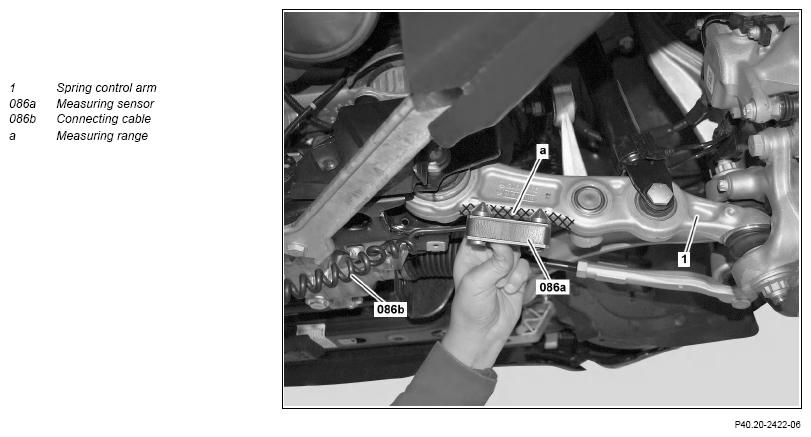

Shown on model 205 except code M005 (4MATIC) on front axle

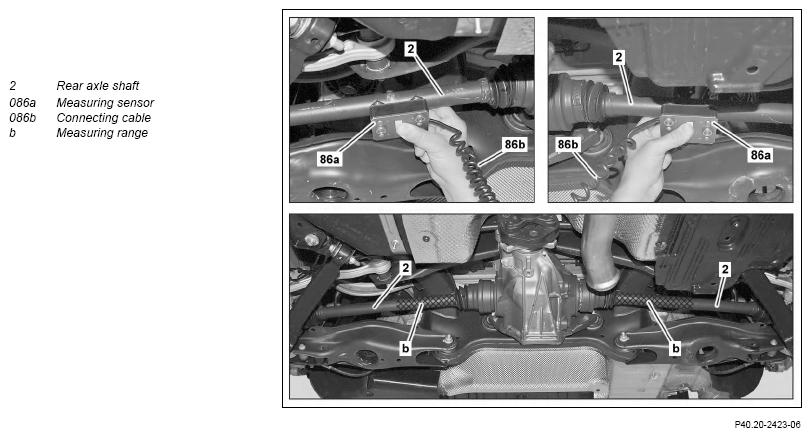

Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code M005 (4MATIC) on rear axle

Courtesy of MERCEDES-BENZ USA

	Check
1	Check condition of vehicle.	Before the vehicle level check, it must be ensured that none of the suspension components are damaged or exhibit wear. For the vehicle level check, all vehicle parts must be installed and the vehicle completed and in a ready to drive condition. The vehicle must not be loaded.
2	Check and correct tire pressure.
			AP40.15-P-4061A
3	Drive the vehicle onto measuring station and secure using parking brake.
4	Unlock turn and slip plates.
5	Remove rear axle underfloor paneling.	Model 253.992/993	AR61.30-P-1001RFW
		Model 293	AR61.30-P-1001EQ
6	Clean measuring ranges (a, b).
7	Place measuring sensor (086a) in measuring range (a) and measure vehicle level at measuring point 1 (front left) and measuring point 2 (front right).	The connecting cable (086b) for the measurement sensor (086a) must face towards the vehicle center. Otherwise the measurement will be inaccurate. Save measured values.
8	Place measuring sensor (086a) in measuring range (b) and measure vehicle level at measuring point 3 (rear left) and measuring point 4 (rear right).	The connecting cable (086b) for the measurement sensor (086a) must face towards the vehicle center. Otherwise the measurement will be inaccurate. Save measured values.
9	Check maximum permissible difference in vehicle level between left and right side of vehicle at front axle.	Assign suspension data Model 293	AR40.20-P-0203EQC
		Assign suspension data Model 213	AR40.20-P-0203LWA
		Assign suspension data Model 253	AR40.20-P-0203LWB
		Assign suspension data Model 205 Model 205 with code 489 (AIRMATIC) Model 213 with code 489 (AIR BODY CONTROL) Model 253 with code 489 (AIR BODY CONTROL) The specified test tolerance applies only when checking the vehicle level but not for calibration.	AR40.20-P-0203LWC
10	Check maximum permissible difference in vehicle level between left and right side of vehicle at rear axle.	Assign suspension data Model 293	AR40.20-P-0203EQC
		Assign suspension data Model 213	AR40.20-P-0203LWA
		Assign suspension data Model 253	AR40.20-P-0203LWB
		Assign suspension data Model 205 Model 205 with code 489 (AIRMATIC) Model 213.0/1 with code 489 (AIR BODY CONTROL) Model 213.2 Model 253 with code 489 (AIR BODY CONTROL) Model 293 The specified test tolerance applies only when checking the vehicle level but not for calibration.	AR40.20-P-0203LWC
	Adjust
11	Calibrate vehicle level using vehicle diagnosis system.	Model 205 with code 489 (AIRMATIC) Model 213.0/1 with code 489 (AIRMATIC) Model 213.2 Model 253 with code 489 (AIR BODY CONTROL) Model 293 When the vehicle level is outside the test tolerance.
		Model 293	AD00.00-P-2000-06FR
		Model 205 with code 489 (AIRMATIC) Model 213.0/1 with code 489 (AIRMATIC) Model 213.2 Model 253 with code 489 (AIR BODY CONTROL) Possible remedies when the vehicle level is not OK after calibration: Attachment of level sensor is misshapen.	AD00.00-P-2000-04B
12	Check headlamp adjustment.	Model 205 with code 489 (AIRMATIC) Model 213.0/1 with code 489 (AIR BODY CONTROL) Model 213.2 Model 253 with code 489 (AIR BODY CONTROL) Model 293 Only if the vehicle level has been calibrated.
		Model 293	AP82.10-P-8260KA
		Model 205 with code 489 (AIRMATIC) Model 253 with code 489 (AIR BODY CONTROL)	AP82.10-P-8260E
		Model 213.0/1 with code 489 (AIR BODY CONTROL) Model 213.2	AP82.10-P-8260J
13	Attach rear axle underfloor paneling.	Model 253.992/993	AR61.30-P-1001RFW
		Model 293	AR61.30-P-1001EQ
