Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LR
Model 213.088/089/288/289 2#

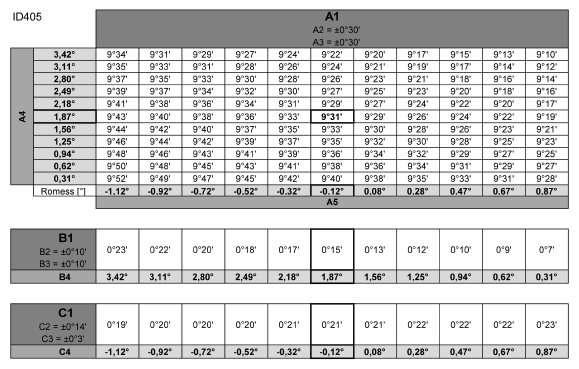

- A1 front axle caster values
A2 absolute tolerance
A3 left/right tolerance
A4 front axle vehicle level
A5 rear axle vehicle level
- B1 front axle toe values
B2 absolute tolerance
B3 left/right tolerance
B4 front axle vehicle level
- C1 rear axle toe values
C2 absolute tolerance
C3 left/right tolerance
C4 rear axle vehicle level

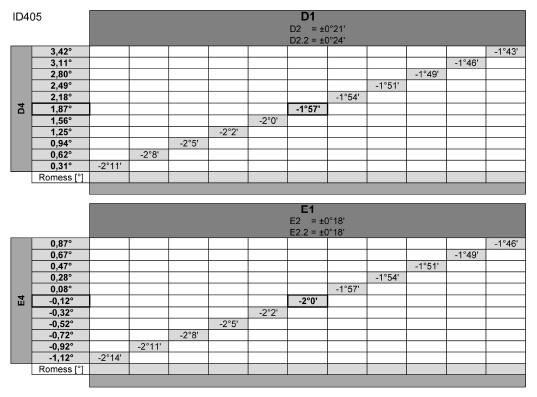

- D1 front axle camber values
D2 absolute tolerance
D2.2 left/right tolerance
D4 level value for required front axle camber side
- E1 rear axle camber values
E2 absolute tolerance
E2.2 left/right tolerance
E4 level value for required rear axle camber side

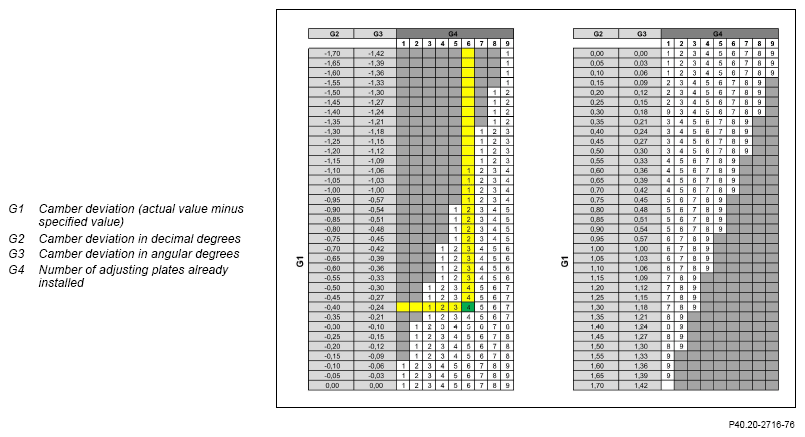

The deviation of the actual value from the specified value must be determined to correspond to the camber measurement on the rear axle, and the camber deviation (G1) then calculated.
Camber deviation (G1) = actual value of rear axle camber - specified value of rear axle camber
Example:
Camber deviation in decimal degrees (G2) = -0.40
Number of adjusting plates already installed (G4) = 6
Number of adjusting plates to be installed = 4 The intersection of the camber deviation in decimal degrees (G2) and the number of adjusting plates (G4) already installed indicates the number of adjusting plates to be used.
Assignment of adjusting plates for rear axle camber adjustment
