Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LP

Model 213.061/064/261/264 2#

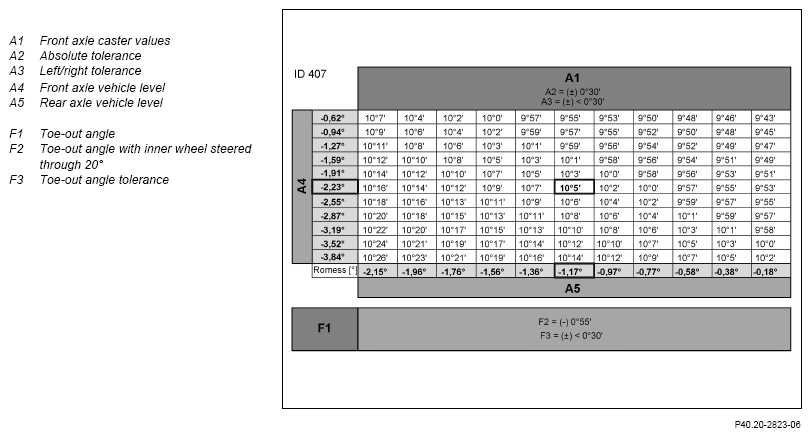

G13772244

Courtesy of MERCEDES-BENZ USA

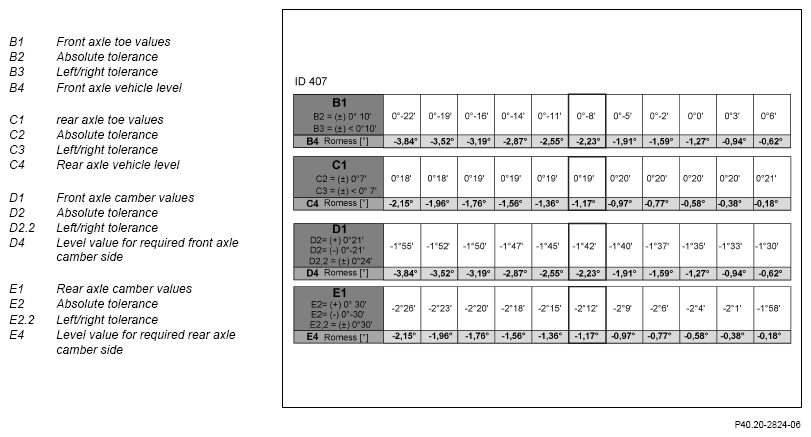

G13772245

Courtesy of MERCEDES-BENZ USA
