Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LO

Model 213.061/064/261/264 1#

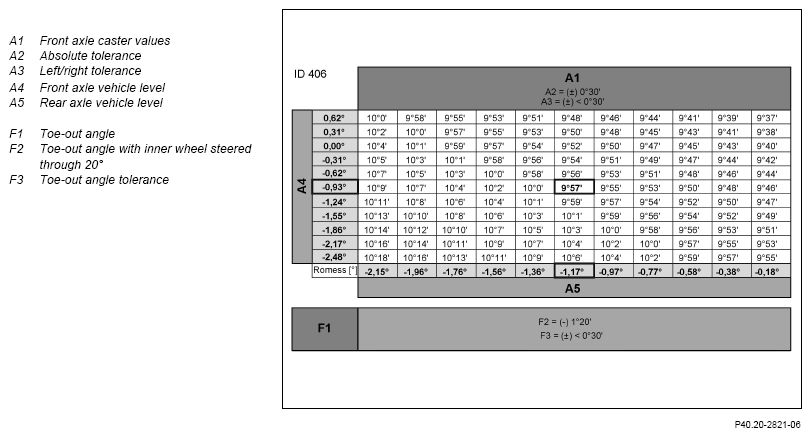

G13772242

Courtesy of MERCEDES-BENZ USA

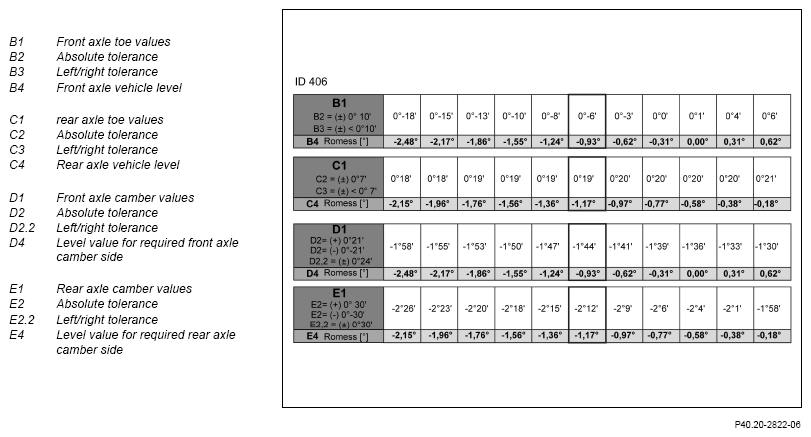

G13772243

Courtesy of MERCEDES-BENZ USA
