Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LM
Model 213.0## (except 213.061/064/088/089) 1#, 213.1## 1#, 213.2## (except 213.217/227/237/260/261/264/279/288/289) 1#
with Code 489 (AIRMATIC Dual Control/semi-active air suspension)
with Code M005 (vehicles with 4-MATIC-/All wheel drive)
except Code 459 (Steel suspension with Adjustable damping)
except Code 482 (Off-road comfort suspension)
except Code 485 (AGILITY CONTROL suspension with comfort tuning)
except Code 677 (AGILITY CONTROL suspension)
- A1 front axle caster values
A2 Absolute tolerance
A3 Left / Right Tolerance
A4 front axle vehicle level
A5 rear axle vehicle level

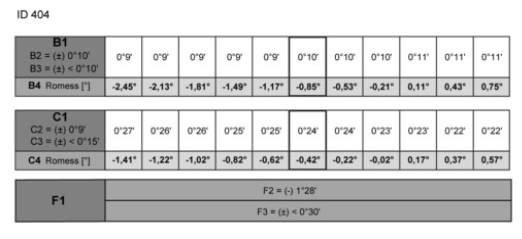

- B1 front axle toe values
B2 Absolute tolerance
B3 Left / right tolerance
B4 Front axle vehicle level
- C1 Rear axle toe values
C2 Absolute tolerance
C3 Left / right tolerance
C4 Rear axle vehicle level
- F1 Toe-out angle
F2 Toe-out angle with inner wheel steered through 20°
F3 Toe-out angle tolerance

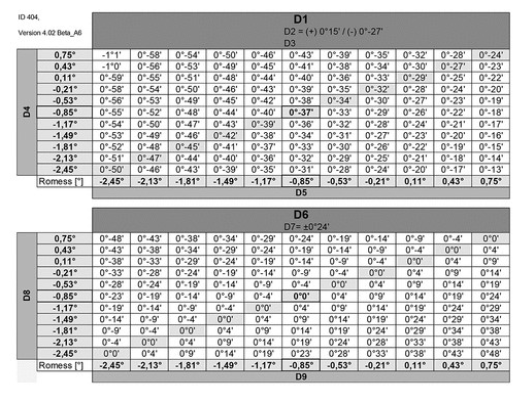

- D1 Front axle camber values
D2 Absolute tolerance
D3 Left / right tolerance, see table D6
D4 level value for required front axle camber side
D5 Level on opposite side
D6 Front axle camber left / right tolerance
D7 Value from camber, left / right nomogram
D8 left front axle
D9 right front axle
- E1 Rear axle camber values
E2 Absolute tolerance
E3 Left / right tolerance, see table E6
E4 level value for required rear axle camber side
E5 Level opposite side
E6 rear axle camber left / right tolerance
E7 Value from camber left / right nomogram
E8 left rear axle
E9 right rear axle
