Adjust Rear-Axle Toe - AR40.20-P-0261LW

Model 205

Model 213

Model 253

Model 293

Shown on right side of vehicle on model 205

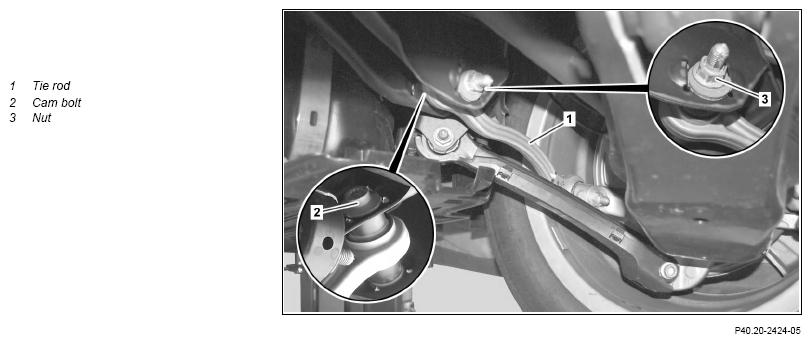

G13746338

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Measure
1	Carry out input measurement.		AR40.20-P-0200LW
	Adjust
2	Loosen nut (3).
3	Adjust toe using cam bolt (2).	Assign suspension data Model 293	AR40.20-P-0203EQC
		Assign suspension data Model 213	AR40.20-P-0203LWA
		Assign suspension data Model 253	AR40.20-P-0203LWB
		Assign suspension data Model 205	AR40.20-P-0203LWC
4	Tighten nut (3). Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
4		Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1002-04M
	Measure
5	Carry out output measurement.		AR40.20-P-0200LW

TIE ROD

Number	Designation				Model 205	Model 213
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	When removing the tie rod	Stage 1	Nm	50	50
		When removing the tie rod	Stage 2	∠°	90	90
		When adjusting the toe		Nm	110	110

TIE ROD

Number	Designation				Model 253	Model 293
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	When removing the tie rod	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
		When adjusting the toe		Nm	110	110
