Replace Radial Shaft Sealing Ring On Drive Pinion - AR35.31-P-0531MNC

Transmission 725.0 in model 213 with code 700 (Vehicle production location China)

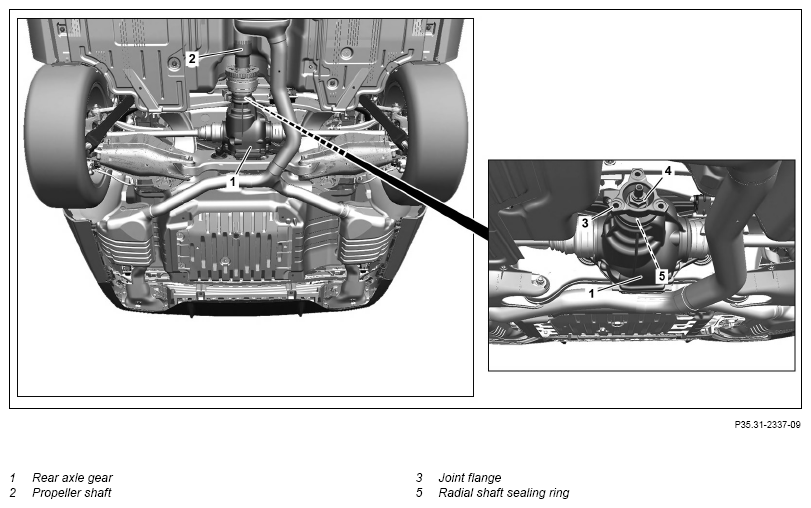

Fig 1: Radial Shaft Sealing Ring On Drive Pinion Components Location - Transmission 725.0 In Model 213 With Code 700

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove
1	Detach propeller shaft (2) from joint flange (3) of rear axle differential (1) and secure by suitable means to prevent it from falling.		AR41.10-P-0050LW
	Measure
2	Measure friction torque on drive pinion and note down.		AR35.31-P-0530-04CWC
		Socket wrench bit	Fig 4
		Adapter	Fig 7
		Torque meter	Fig 5
3	Detach joint flange (3).		AR35.31-P-0550-06CWC
		Adapter	Fig 7
		Puller	Fig 2
		Pin wrench	Fig 3
		Socket wrench bit	Fig 4
4	Pry radial shaft sealing ring (5) out of rear axle differential (1) using suitable tool.	Do not damage the sitting surface of the radial shaft sealing ring (5). Otherwise leaks will occur at the rear axle differential (1).
	Clean
5	Clean seat of radial shaft sealing ring (5) in rear axle differential (1) using a clean, lint-free rag and assembly cleaner.	The seat of the radial shaft sealing ring (5) in the rear axle differential (1) must be free of oil and dirt. Otherwise leaks will occur at the rear axle differential (1). Assembly cleaner must not enter the rear axle differential (1). Otherwise the rear axle differential (1) will be damaged. Assembly cleaner	*BR00.45-Z-1028-04A
	Check
6	Check seat of radial shaft sealing ring (5) in rear axle differential (1) for damage.	If damage is found, ↓ Replace rear axle differential (1). Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China)	AR35.31-P-0522OLC
	Install
7	Apply universal hypoid gear oil to sealing lip of new radial shaft sealing ring (5).
	Universal hypoid gear oils (specification 235.7)		BB00.40-P-0235-07A
8	Install new radial shaft sealing ring (5) in rear axle differential (1) using drift.	Drift	Fig 6
9	Adjust friction torque of drive pinion bearing.	It is essential to perform all operation steps listed in the description and to observe all instructions. Otherwise there will be noise development and damage to the rear axle differential (1).	AR35.31-P-0550-17CWC
		Collar nut, joint flange to drive pinion	*BA35.31-P-1001-06A
		Torque meter	Fig 5
		Adapter	Fig 7
		Pin wrench	Fig 3
		Socket wrench bit	Fig 4
10	Attach propeller shaft (2) to joint flange (3) of rear axle differential (1).		AR41.10-P-0050LW
	Check
11	Check oil level in rear axle differential (1) and correct if necessary.	Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China)	AR35.31-P-0520-08OLC
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
		Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) Filling capacity	*BF35.31-P-1002-02C
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
12	Check rear axle differential (1) for leak tightness.

Fig 2: Identifying Puller (124 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pin Wrench (129 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Socket Wrench Bit (204 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Torque Meter (001 589 49 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Drift (204 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Adapter (100 589 02 59 00)

Courtesy of MERCEDES-BENZ USA
