Remove/Install Radial Shaft Sealing Ring Of Rear Axle Shaft On Rear Axle Housing - AR35.31-P-0542MNC
Transmission 725.0 in model 213
with code 700 (Vehicle production location China)

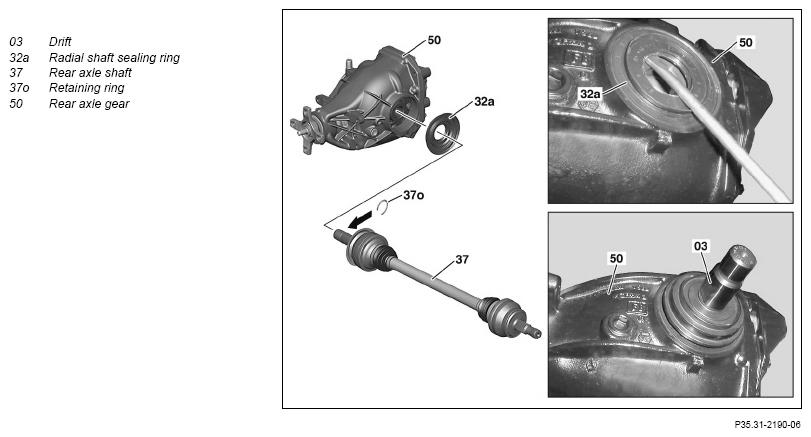

Fig 1: Radial Shaft Sealing Ring Of Rear Axle Shaft On Rear Axle Housing Components Location - Transmission 725.0 In Model 213 With Code 700
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Remove | |||
| 1 | Secure vehicle on vehicle lift. | AR00.60-P-0100CW | |
| 2 | Remove rear axle shaft (37) on left or right. | Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) |
AR35.30-P-0621OLC |
| 3 | Pry radial shaft sealing ring (32a) out of rear axle differential (50) using suitable tool. | Do not damage seat surface of radial shaft sealing ring (32a). Otherwise, leaks can occur at the rear axle differential (50). |
|
| Clean | |||
| 4 | Clean seat of radial shaft sealing ring (32) in rear axle differential (50) using a clean, lint-free rag and assembly cleaner. | The seat of the radial shaft sealing ring (32a) in the rear axle differential (50) must be free of oil and dirt. Otherwise, leaks can occur at the rear axle differential (50). Assembly cleaner |
*BR00.45-Z-1028-04A |
| Check | |||
| 5 | Check seat of radial shaft sealing ring (32a) in rear axle differential (50) for damage. | If damage is found, ↓ Replace rear axle differential (50). Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) |
AR35.31-P-0522OLC |
| Install | |||
| 6 | Apply universal hypoid gear oil to sealing lip of new radial shaft sealing ring (32a). | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| 7 | Press new radial shaft sealing ring (32a) into rear axle differential (50) using drift (03) and sleeve. | Fig 2 | |
| Fig 3 | |||
| 8 | Replace retaining ring (37o) on rear axle shaft (37). | ||
| 9 | Install rear axle shaft (37) on left or right. | Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) | AR35.30-P-0621OLC |
| Check | |||
| 10 | Check oil level in rear axle differential (50) and correct if necessary. | Transmission 725.0 in model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) | AR35.31-P-0520-08OLC |
| *BA35.31-P-1002-02H | |||
| *BF35.31-P-1002-02C | |||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| 11 | Check rear axle differential (50) for leak tightness. |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA35.31-P-1002-02H | Oil filler screw of rear axle differential | Nm | 50 |
REAR AXLE GEAR
| Number | Designation | Model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) | ||
|---|---|---|---|---|
| BF35.31-P-1002-02C | Filling capacity | Rear axle differential 200 C | Liter | 1, 0 |
| Overview of specified transmission oils | BB00.40-P-0231-01A | |||
| References, approved axle gear oils | BB00.40-P-0235A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
