Remove/Install Crash Sensor - AR91.60-P-0950LWE

Model 213, 238

with code U60 (Pedestrian protection - Active hood)

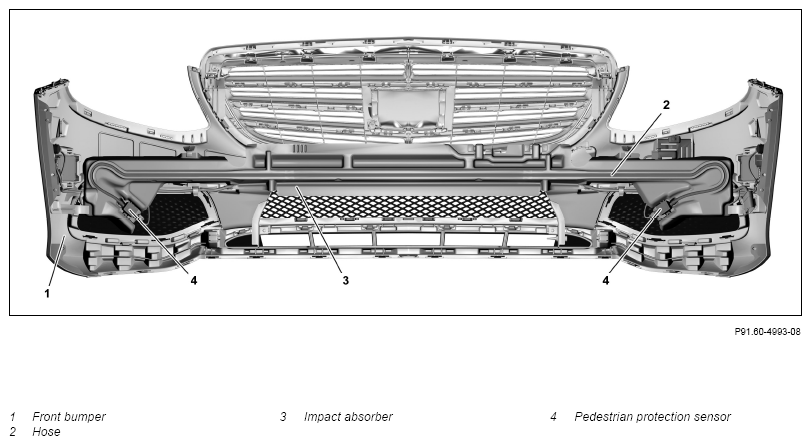

Fig 1: Pedestrian Protection Sensor Components Location - Model 213 With Code U60

Courtesy of MERCEDES-BENZ USA

Shown on model 213

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	General information on the impact absorber		AH88.20-P-1000-01A
	Notes on pedestrian protection sensor		AH91.60-P-0001-01A
	Remove/install
1	Remove front bumper (1)		AR88.20-P-2000LWE
2	Disconnect electrical connector at left and right pedestrian protection sensor (4)
3	Remove hose (2) from groove in impact absorber (3)	Ensure that hose (2) is seated correctly in impact absorber (3). The hose (2) must be routed without any tension or kinks. Otherwise the pedestrian protection system may malfunction. : Position hose (2) as deep as possible in groove of impact absorber (3). Hose (2) must protrude the same amount at the impact absorber (3) along the entire length.
4	Remove left and right pedestrian protection sensor (4) together with hose (2)	Pedestrian protection sensors (4) are permanently connected to hose (2) and must not be separated. Otherwise the pedestrian protection system may malfunction.
5	Install in the reverse order
