(Remove/Install Electric Refrigerant Compressor - AR83.55-P-5311LHV)
Model 213.050/053/054/153/155/253
Shown on model 213.050
Shown on model 213.050
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove | |||
| 1 | Perform power disconnect of high-voltage onboard electrical system. | AR54.10-P-1150LHV | |
| 2 | Discharge air conditioning system. | AR83.30-P-1760LW | |

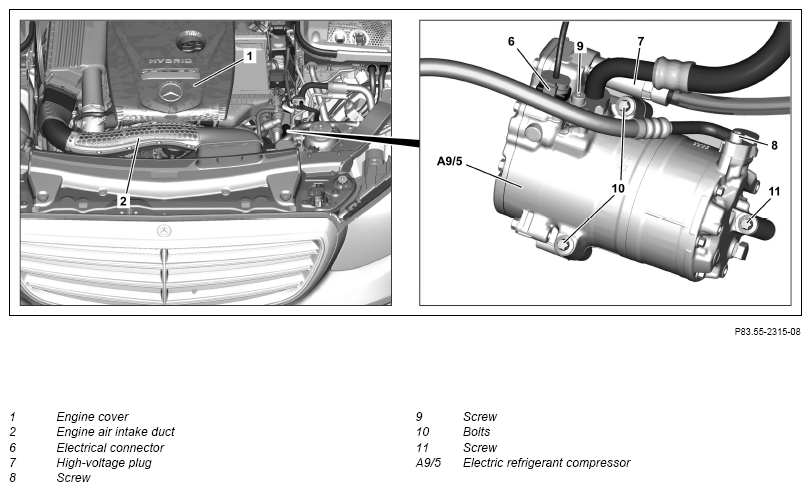

| 3 | Remove engine cover (1). | ||
| 4 | Remove engine air intake duct (2). | ||

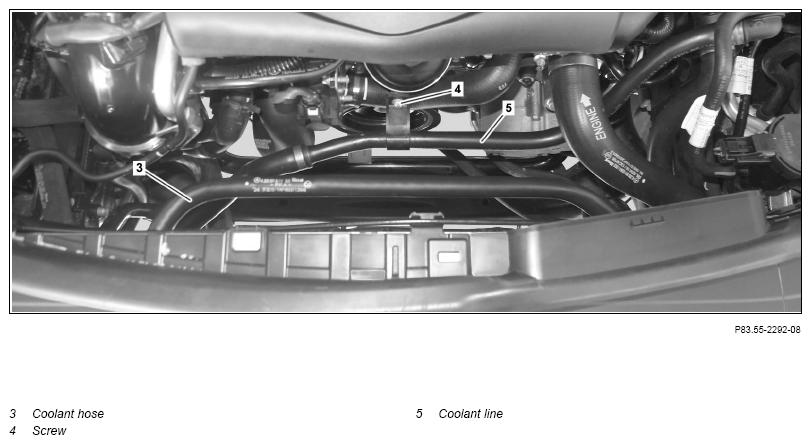

| 5 | Unhook coolant hose (3) from brackets and push to one side. | ||
| 6 | Remove screw (4) and push coolant line (5) to one side. | ||
| 7 | Disconnect electrical connection (6). | ||
| 8 | Disconnect high-voltage plug (7). | ||
| 9 | Remove screw (8), detach high-pressure line from electric refrigerant compressor (A9/5) and seal openings. | Fig 2 | |
| Fig 1 | |||
| 10 | Remove screw (9), detach low-pressure line from electric refrigerant compressor (A9/5) and seal openings. | Fig 2 | |
| Fig 1 | |||
| 11 | Remove front engine compartment lining and center engine compartment lining. | AR61.20-P-1105LWE | |
| 12 | Unscrew bolts (10). | ||
| 13 | Secure electric refrigerant compressor (A9/5) against falling down and remove screw (11). | ||
| 14 | Lower vehicle. | ||
| 15 | Remove electric refrigerant compressor (A9/5) from above from engine compartment. | ||
| Install | |||
| 16 | Insert electric refrigerant compressor (A9/5) from above into engine compartment and secure against falling down. | Carefully insert electric refrigerant compressor (A9/5). Otherwise adjacent components may be damaged. |
|
| 17 | Raise vehicle. | ||
| 18 | Position electric refrigerant compressor (A9/5) and screw in screw (11). | *BA83.55-P-1001-01M | |
| 19 | Screw in screws (10). | *BA83.55-P-1001-01M | |
| 20 | Lower vehicle. | ||
| 21 | Remove protective cover and replace sealing ring of low-pressure line. | ||
| 22 | Attach low-pressure line to electric refrigerant compressor (A9/5) and screw in screw (9). | *BA83.55-P-1003-01M | |
| 23 | Remove protective cover and replace sealing ring of high-pressure line. | ||
| 24 | Attach high-pressure line to electric refrigerant compressor (A9/5) and screw in screw (8). | *BA83.55-P-1003-01M | |
| 25 | Check receiver drier for re-usability. | If there are problems, ↓ Replace drier cartridge. Model 213.050/053/054/153/155/253 except code 1U6 (R744 refrigerant) |
AR83.30-P-6521LW |
| 26 | Install front engine compartment lining and center engine compartment lining. | AR61.20-P-1105LWE | |
| 27 | Connect high-voltage plug (7). | ||
| 28 | Connect electrical connector (6). | ||
| 29 | Screw in screw (4). | ||
| 30 | Hook coolant hose (3) into brackets. | ||
| 31 | Install engine air intake duct (2). | ||
| 32 | Install engine cover (1). | ||
| 33 | Fill air conditioning. | AR83.30-P-1760LW | |
| 34 | Perform initial startup of high voltage on-board electrical system. | AR54.10-P-1150LHV | |
| 35 | Connect vehicle diagnosis system and perform teach-in run of electric refrigerant compressor (A9/5). | When replacing the electric refrigerant compressor (A9/5). | AD00.00-P-2000-04B |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA83.55-P-1001-01M | Screw/bolt, refrigerant compressor to timing case/crankcase/engine support | Nm | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA83.55-P-1003-01M | Bolt, refrigerant line to refrigerant M8 compressor | Nm | 20 |
