Tightening Procedure For High-Pressure Fuel Pump Shielding - AR07.02-P-0815-01MR

ENGINE 274

HIGH PRESSURE FUEL PUMP

Number	Designation		ENGINE 274
BA07.02-P-1004-01D	Bolt, shielding for high-pressure pump	Nm	20

1. Tighten screw/bolts (1 to 4) in the numerical sequence.

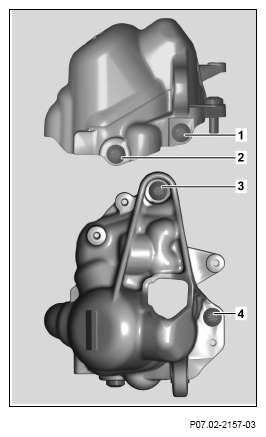

Fig 1: High-Pressure Fuel Pump Shielding Tightening Sequence - Engine 274

Courtesy of MERCEDES-BENZ USA
