Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MNE
Engine 177 in model 213
GROUND POINTS
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA00.19-P-1038-02A | Screw/bolt/nut, ground line to transmission/underfloor | M8 | Nm | 20 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1009-04H | Screw/bolt, heat shield to oil pan | Nm | 9 |
WIRING HARNESS
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 |
| M8 | Nm | 16 | ||

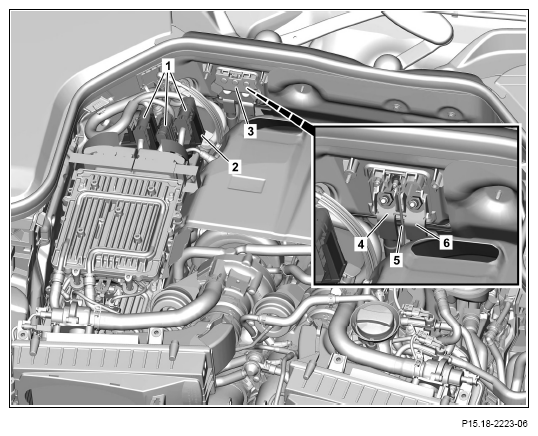

- Release and disconnect electrical connectors (1).
- Unclip holder (2).
- Remove heat shield in front of cover (3).
- Remove cover (3).
- Remove electric line (4) from busbar
.
- Remove electric line (5) from busbar
- Remove electric line (6) from busbar

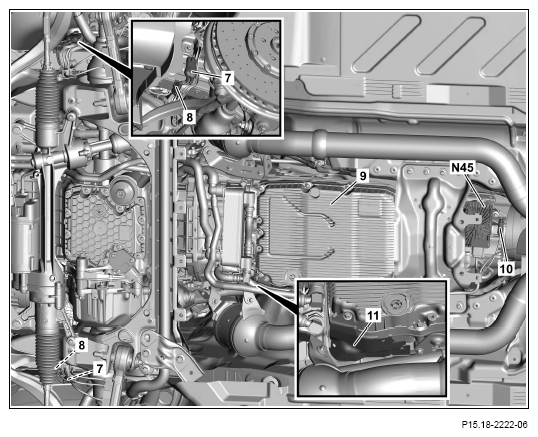

- Release and disconnect electrical connectors (7).
- Unclip retaining clips (8)
- Release and disconnect electrical connector for the all-wheel drive control unit (N45).
- Release and disconnect electrical connector (10).
- Remove transmission ground line (9) from underbody
- Remove heat shield (11)
- Release and disconnect electrical connector of electronic controller unit (9) on the transmission.
- Connect in reverse order.
