Remove/Install Camshaft Positioner - AR05.20-P-7204MRD

Engine 274.9 in model 213

Engine 274.9 in model 238

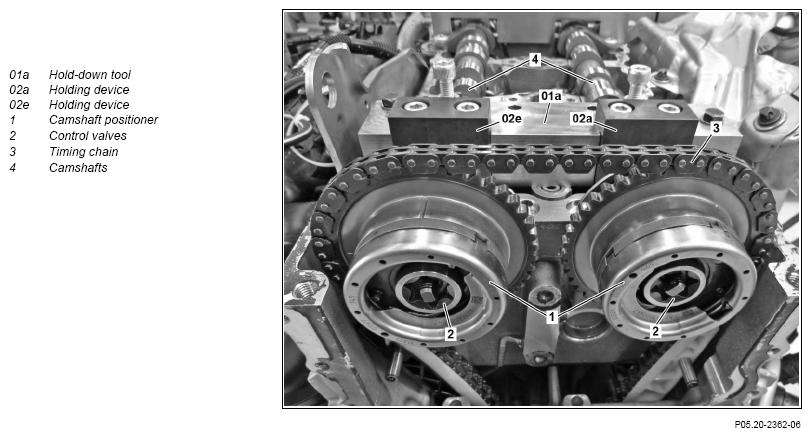

Fig 1: Camshaft Positioner Components Location - Engine 274.9 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Remove engine air intake duct upstream of air filter
2	Rotate engine at crankshaft center bolt in direction of engine rotation to top dead center (TDC) on cylinder 1	The TDC marking on belt pulley/vibration damper must be aligned with positioning edge on timing case cover.
		Socket wrench bit	Fig 2
3	Remove cylinder head cover	Only install upper engine cover after the leak test.	AR01.20-P-5014MRD
4	Mount hold-down tool (01a) for camshafts (4) with holding devices (02a, 02e) for the camshafts (4)	Holding device	Fig 4
5	Remove the chain tensioner		AR05.10-P-7800MRD
6	Unfasten control valve (2) for the respective camshaft positioner (1) and remove
	Specified engine oils (service) - Overview	Wet thread and the bolt head contact surface of the control valve (2) with engine oil. Tighten control valve (2) evenly without discontinuity using the specified torque.	BB00.40-P-0223-02A
		Center valve, pulse wheel/camshaft adjuster to camshaft	*BA05.20-P-1002-02K
		Socket	Fig 3
		Holding device	Fig 4
7	Remove camshaft positioners (1) from camshafts (4)	The timing chain (3) must be laid on or taken off for assembly or disassembly of the camshaft positioner (1).
8	Install in the reverse order
	Check
9	Rotate engine at center bolt of crankshaft in direction of engine rotation twice and place piston for cylinder 1 at top dead center (ignition TDC)	Socket wrench bit	Fig 2
10	Check basic position of camshafts (4)	If the basic position is not correct ↓ Adjust basic position of camshafts (4).	AR05.20-P-6010MRD
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Carry out an engine test run, checking the engine for leaktightness and proper operation
12	Install upper engine cover

CAMSHAFT, CAMSHAFT ADJUSTMENT

Number	Designation			Engine 274
BA05.20-P-1002-02K	Center valve, pulse wheel/camshaft adjuster to camshaft	Stage 1	Nm	18
		Stage 2	∠°	45
