Replace Rear Radial Shaft Sealing Ring - AR03.20-P-3003MRH

Engine 264 in model 213, 238, 257

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove

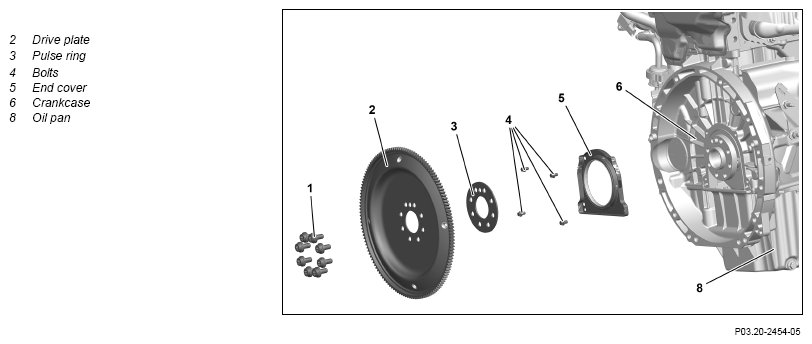

1	Remove drive plate (2).		AR03.30-P-8003MRH
2	Remove crankshaft position sensor.		AR15.12-P-2134MRH
3	Remove pulse ring (3).		AR15.12-P-0001MRH
4	Clean crankcase (6) and oil pan (8) in the area Assembly cleaner of the end cover (5).		*BR00.45-Z-1028-04A
5	Remove screws (4).
6	Position tool on the side cutouts of the end cover (5) and release the end cover (5) from the crankcase (6).
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Do not damage the sealing surface between the end cover (5) and the crankcase (6). Otherwise, leakage may occur.
		Heat end cover (5) in area of the sealing surfaces if necessary using a heat gun.
7	Remove end cover (5).	The end cover (5) and radial shaft sealing ring form a unit and cannot be separated.
	Install
8	Install new end cover (5).		AR03.20-P-3003-01MRH
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Loctite 7200	*BR00.45-Z-1038-04A
		Screw/bolt, rear end cover to crankcase	*BA01.40-P-1002-03A
		Installation tool	Fig 1
9	Install pulse ring (3).		AR15.12-P-0001MRH
10	Install crankshaft position sensor.		AR15.12-P-2134MRH
11	Install drive plate (2).		AR03.30-P-8003MRH
12	Check engine oil level and correct.
		Engine 264 in model 238	AP18.00-P-1812EKI
		Engine 264 in model 257	AP18.00-P-1812BKI
		Engine 264 in model 213	AP18.00-P-1812MKI

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 264
BA01.40-P-1002-03A	Screw/bolt, rear end cover to crankcase	Nm	8

Fig 1: Identifying Installation Tool (271 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
BR00.45-Z-1038-04A	Loctite 7200	Henkel AG & Co. KGaA
