Remove/Install Bottom Part Of Engine Oil Pan - AR01.45-P-7555MRD

Engine 274.9 in model 213

Engine 274.9 in model 238

Shown on model 274 with engine 213 except CODE M005 (4MATIC)

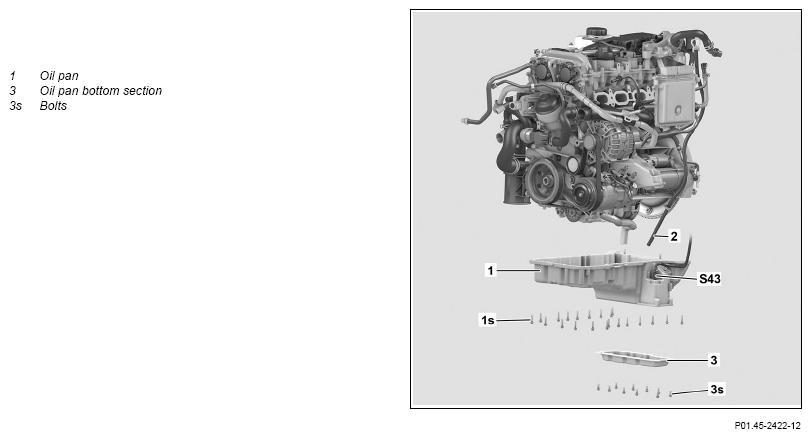

Fig 1: Bottom Part Of Engine Oil Pan Components Location - Engine 274.9 In Model 213 (Except Code M005 Shown)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
NOTICE	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove engine compartment paneling	: Only install lower engine compartment paneling after a leak test.	AR61.20-P-1105LWE
2	Remove front diagonal strut	Engine 274.9 in model 238.4 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.10-P-5144LWO
3	Remove drain screw from oil pan (1) and catch engine oil in a suitable container Notes on engine oil and filter changes	: Replace sealing ring.	AH18.00-P-0104-01A
		Drain screw to oil pan	*BA01.45-P-1002-01T
		Engine 274.910 in model 213 Engine 274.920 in model 213 (except 213.043/049/143/243), 238 (except 238.343/443) Engine 274.920 in model 213.043/049/143/243, 238.343/443Engine oil	*BF18.00-P-1001-01ZA
4	Remove bolts (3s)	Bolt, oil pan bottom section to oil pan	*BA01.45-P-1005-01T
5	Unfasten oil pan bottom section (3) from oil pan (1) and remove	Do not drive any tools between oil pan bottom section (3) and oil pan (1) to loosen them. Heat oil pan bottom section (3) in area of the sealing surfaces if necessary using a heat gun. The sealing surface will be damaged otherwise. : Apply sealant to sealing surface of oil pan bottom section (3). Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
6	Clean the sealing surfaces on oil pan bottom section (3) and oil pan (1)	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.	AR01.00-P-0050-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
7	Install in the reverse order
	Check
8	Check engine oil level and correct
			AP18.00-P-1811MP
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Perform engine test run, checking engine for leaktightness and proper operation
10	Install lower engine compartment paneling		AR61.20-P-1105LWE

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
