Tightening Pattern For Turbocharger - AR09.40-P-6020-10MRD

Engine 274.9 in model 205

Engine 274.9 in model 213

Engine 274.9 in model 238

Engine 274.9 in model 253

TURBOCHARGER

Number Designation Engine 274
BA09.40-P-1001-01U Nut, turbocharger/exhaust manifold to cylinder head Nm 15
  1. Tighten new nuts (1 to 8) in ascending numerical sequence TORQUE SPECIFICATION .

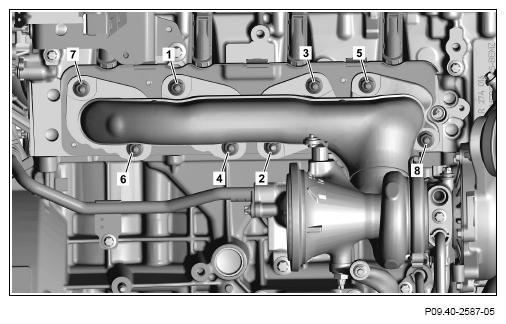

Fig 1: Turbocharger/Exhaust Manifold To Cylinder Head Tightening Sequence - Engine 274.9 In Model 213
G12817070Courtesy of MERCEDES-BENZ USA
