Align Clamp Between Turbocharger And Catalytic Converter - AR09.40-P-6018-01MNE
Engine 177 in model 167
Engine 177 in model 213
Engine 177 in model 217, 222
Engine 177 in model 290
Engine 177 in model 463
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 167 | Engine 177 in model 213 | ||
|---|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 | 8 |
| M8 | Nm | 23 | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 217 | Engine 177 in model 222 | ||
|---|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 | 8 |
| M8 | Nm | 20 | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 290 | Engine 177 in model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 | 8 |
| M8 | Nm | 20 | 20 | ||
INERTING
| Number | Designation | Model 167 | ||||
|---|---|---|---|---|---|---|
| BA86.10-P-1002-03B | Pipe for inerting to engine | M6 | Screw | Nm | 8 | |
| Nut | Stage 1 | Nm | 8 | |||
| Stage 2 | ∠° | 30 | ||||
INERTING
| Number | Designation | Model 213 | Model 290 | ||||
|---|---|---|---|---|---|---|---|
| BA86.10-P-1002-03E | Pipe for inerting to engine | M6 | Screw | Nm | 8 | 8 | |
| Nut | Stage 1 | Nm | 8 | - | |||
| Stage 2 | ∠° | 30 | - | ||||
INERTING
| Number | Designation | Model 217 | Model 222 | ||||
|---|---|---|---|---|---|---|---|
| BA86.10-P-1002-03G | Pipe for inerting to engine | M6 | Screw | Nm | 8 | 8 | |
| Nut | Stage 1 | Nm | 8 | 8 | |||
| Stage 2 | ∠° | 30 | 30 | ||||
INERTIZATION SYSTEM
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA86.10-P-1002-03J | Bolt, piping for inerting to engine/stationary heater | Nm | 8 | 8 |

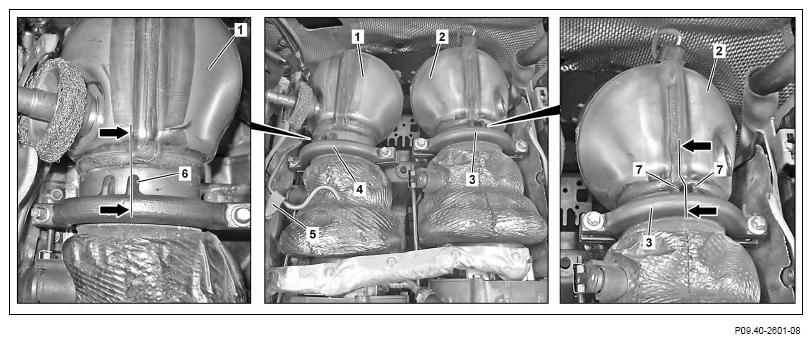

- Remove bracket (5) for inerting system line from heat shield.
- Attach clamp (4) and position in such a way that the marking tab (6) of the clamp (4) is aligned with the outer right side of the welded seam of the CAT (1) (arrow).
Use screw/bolts M8x40.
- Attach clamp (3) and position in such a way that both marking tabs (7) of the clamp (3) are aligned centrally over the welding seam of the CAT (2) (arrows).
- Attach bracket (5) for inerting system line to heat shield Engine 177 in model 217, 222
Engine 177 in model 213
Engine 177 in model 290
- Check for unobstructed movement between the inerting system line and the clamp (4), slightly readjusting the clamp (4) if necessary.
- Tighten screws/bolts of clamps (3, 4) alternately
