Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MRD

Engine 274.9 in model 213 (except 213.050)

Engine 274.9 in model 238

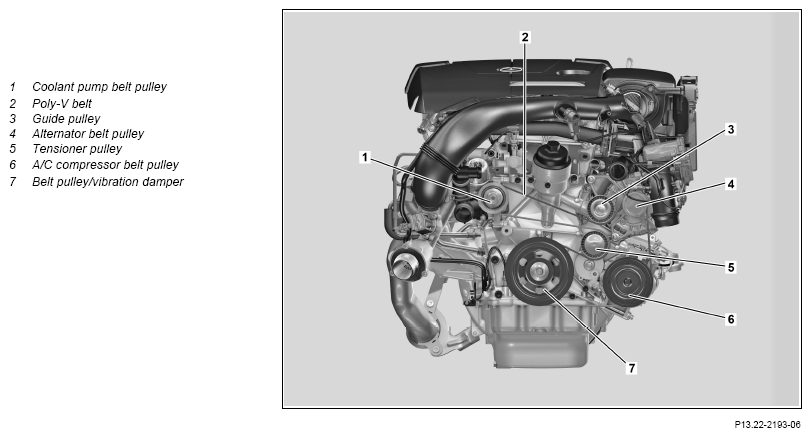

Shown on engine 274.9 with a manual coolant pump

Fig 1: Poly-V Belt Routing Diagram - Engine 274.9 In Model 213 (Except 213.050; Shown With A Manual Coolant Pump)

Courtesy of MERCEDES-BENZ USA

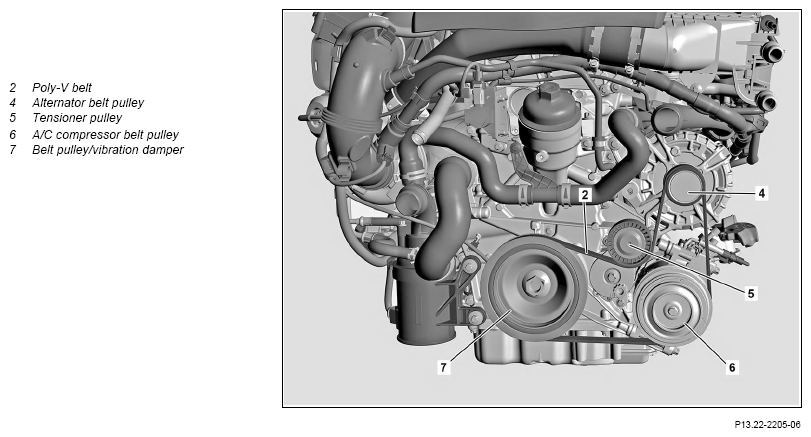

Shown on engine 274.9 with an electrical coolant pump

Fig 2: Poly-V Belt Routing Diagram - Engine 274.9 In Model 213 (Except 213.050; Shown With An Electrical Coolant Pump)

Courtesy of MERCEDES-BENZ USA
