Remove/Install Parktronic System (PTS) Sensors In Rear Bumper - AR54.65-P-0002LWE
Model 213.0/1 with code 220 (PARKTRONIC system (PTS))
Model 213.0/1 with code 235 (Active Parking Assist)
| Information on painting PARKTRONIC system sensors | AH98.00-P-9019-02A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear bumper. | AR88.20-P-2200LW | |

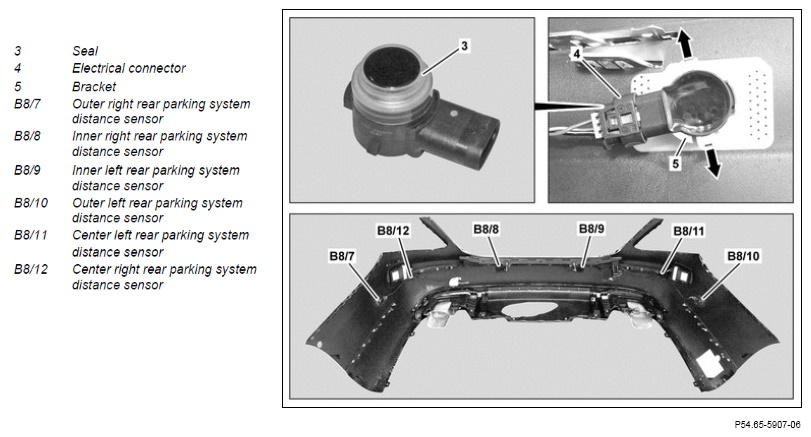

| 2 | Detach electrical connector (4) from rear parking system distance sensor (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12). | ||
| 3 | Release catch hooks on holder (5) in direction of arrow, and remove rear parking system distance sensor (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12) from holder (5). | ||
| 4 | Install in the reverse order. |
