Remove/Install Front Passenger Side Fuse And Relay Module - AR54.15-P-0004LWE
Model 213, 238
| Remove/install | |||
| 1 | Disconnect ground line from battery. | Model 238 | AR54.10-P-0003LWO |
| Model 213 | AR54.10-P-0003LW | ||
| 2 | Remove door sill on front passenger side. | Model 238 | AR68.30-P-4100CLW |
| Model 213 | AR68.30-P-4100LW | ||

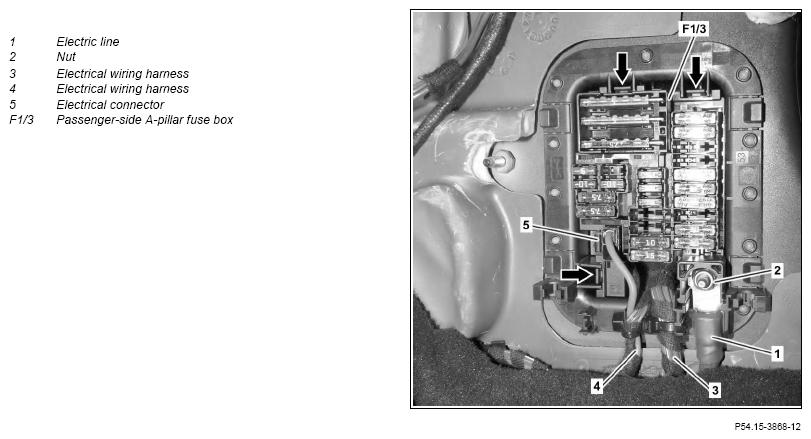

| 3 | Remove electric line (1) from terminal 30. | *BA54.15-P-1004-01K | |
| 4 | Expose electrical wiring harnesses (3, 4). | ||
| 5 | Disconnect electrical connector (5). | ||
| 6 | Unclip fuse box on front passenger side A-pillar (F1/3) (arrows). | Fig 3 | |
| 7 | Pull electrical fuses out of fuse box on front passenger side A-pillar (F1/3). | ||
| Assignment of passenger-side A-pillar fuse box | Model 238 up to model year 2021 | GF54.15-P-1256-48FH | |
| Assignment of passenger-side A-pillar fuse box | Model 213 up to model year 2021 |
GF54.15-P-1256-48FG | |

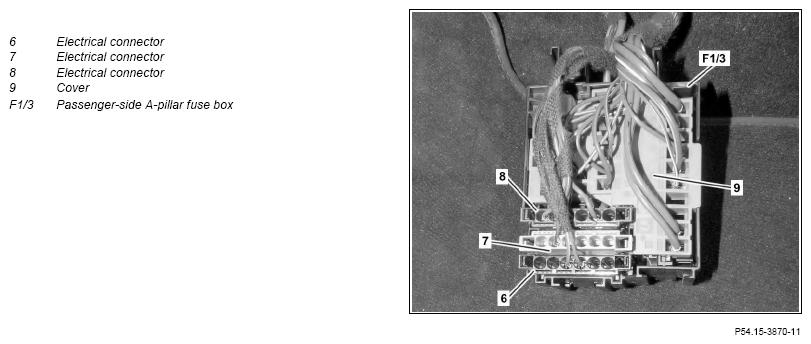

| 8 | Disconnect electrical connectors (6, 7, 8). | ||
| 9 | Remove cover (9) from A-pillar fuse box on front passenger side (F1/3). | ||
| 10 | Unplug electric lines in area of cover (9) from fuse box on front passenger side A-pillar (F1/3). | ||
| Fig 2 | |||
| Fig 1 | |||
| 11 | Remove fuse box on front passenger side A-pillar (F1/3). | ||
| 12 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA54.15-P-1004-01K | Nut, positive line to vehicle interior prefuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
