Installing Rear Section Of Roof Paneling - Ar65.10-P-5760-03LWT

Model 213.2

with code 413 (Automatic panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

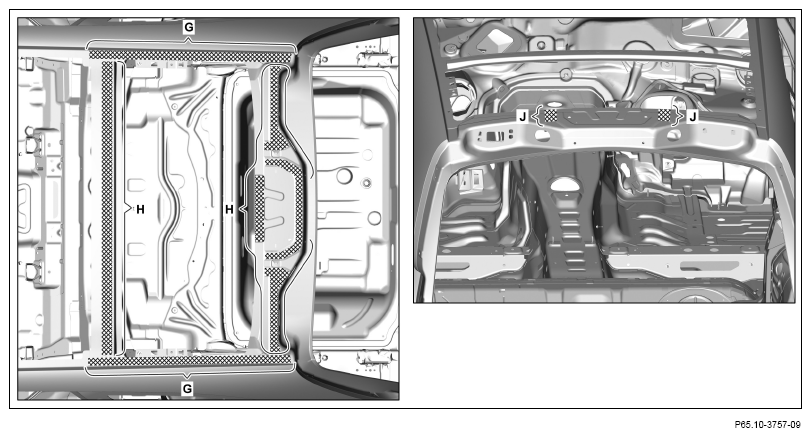

1. Apply lining to body (areas H).

   Observe processing specification for relining adhesive.

2. Apply 2-component adhesive for reinforcements to body (areas J).

   Observe processing specifications for 2-component adhesive.

3. Apply 2-component adhesive to body in crosshatched areas (areas G).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

4. Install roof paneling rear section (1), fit with spacer blocks and fix in place.

   When removing, observe specified dimensions and positions of spacer blocks.

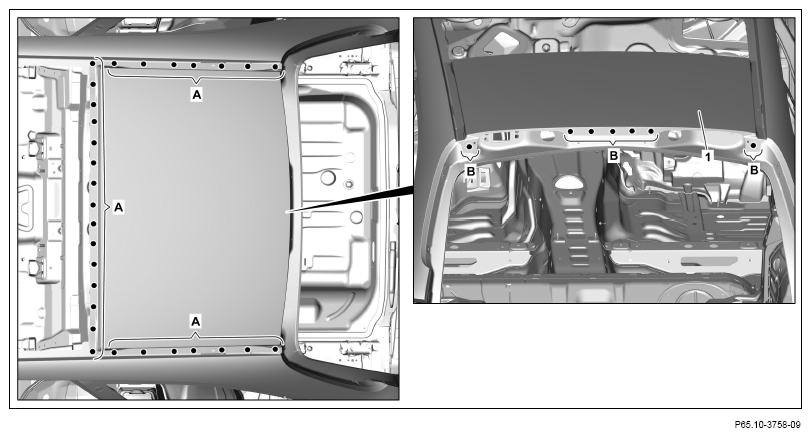

5. Roof paneling rear section (1) (areas A and B).
