Install Rear Roof Frame - AR65.20-P-1008-03LWE

Model 213.0/1

Courtesy of MERCEDES-BENZ USA

The following steps are shown on model 213.0.

1. Install roof frame and center roof paneling, fit with spacer blocks and fix in place.

   Observe dimensions and positions of spacer blocks sensed during removal of the center roof paneling.

2. Mark installation position of roof frame.
3. Remove roof frame and center roof paneling.

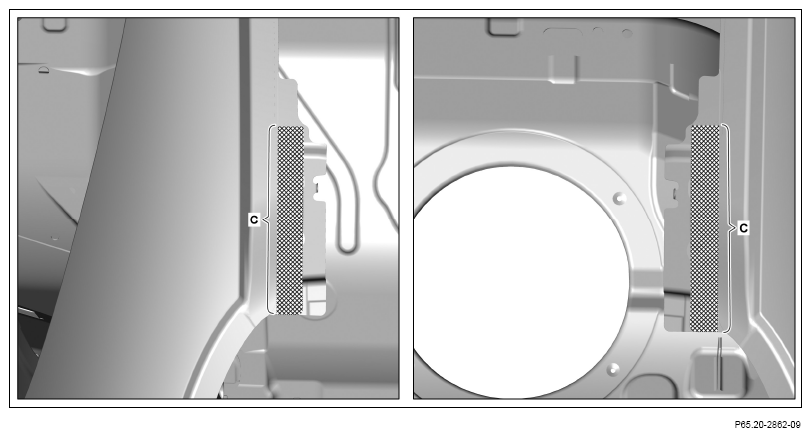

4. Apply 2-component adhesive to body in crosshatched areas (areas C).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

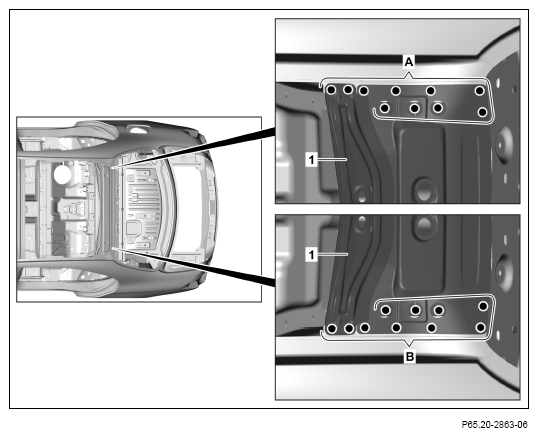

5. Fit roof frame (1) and fix in place.
6. Roof frame (1) rp (areas A und B).
