Remove/Install Vacuum Pump - AR43.05-P-1320MRH
Engine 264 in model 213, 238, 257
MODIFICATION NOTES
| 06.02.2019 | Bolt, vacuum pump to cylinder head/cylinder head cover | BA43.05-P-1001-01Q |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine cover | AR01.10-P-2405MRH | |
| 2 | Remove rear engine cover. | AR01.10-P-2408MRH | |

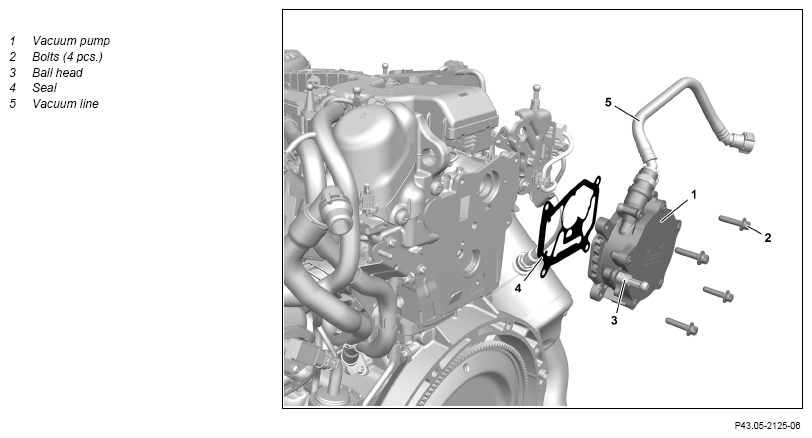

| 3 | Detach vacuum line (5) from vacuum pump (1). | ||
| 4 | Remove bolts (2) | *BA43.05-P-1001-01Q | |
| 5 | Remove vacuum pump (1) | Observe position of vacuum pump (1) driver. |
|
| 6 | Unscrew ball head (3). | When replacing vacuum pump (1). |
*BA01.20-P-1010-03B |
| 7 | Install in the reverse order. | ||
8 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out engine test run and check engine for proper leaktightness . |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 9 | Install engine cover. | AR01.10-P-2405MRH |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.20-P-1010-03B | Ball head, engine cover to cylinder head cover/vacuum pump | Nm | 5 |
VACUUM PUMP
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA43.05-P-1001-01Q | Bolt, vacuum pump to cylinder head/cylinder head cover | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 30 | ||
