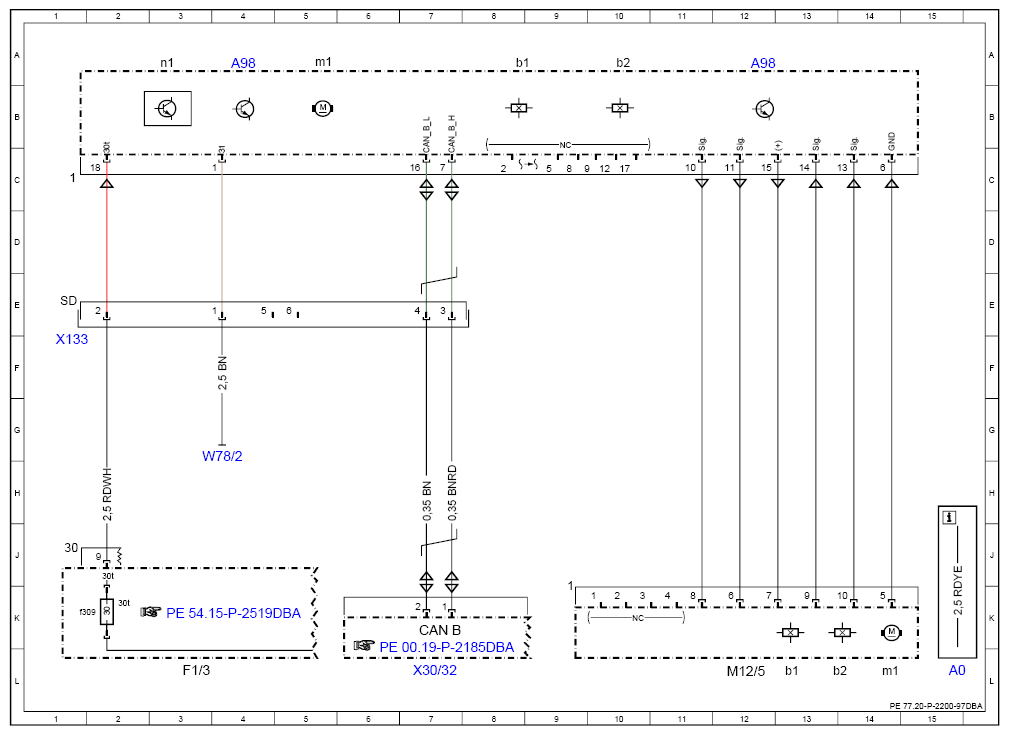

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97DBA
Model 213 up to model year 2021 with code 413 (Panoramic sliding sunroof/glass roof) Control module A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 8A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 10A |
| A98m1 | Panoramic sliding roof motor | 5A |
| A98n1 | Panoramic sliding roof control unit | 3A |
| CAN B | Interior CAN | 7K |
| Code 413 | Panoramic sliding sunroof | |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f309 | Fuse 309 | 1K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 12L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 13L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 13L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 14L |
| W78/2 | Roof ground point 2 | 4G |
| X133 | Roof/vehicle interior electrical connector | 1F |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
