Remove/Install Panoramic Sliding Sunroof Wind Deflector Bearing - AR77.21-P-0102LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove wind deflector (1) | AR77.21-P-0100LWE | |

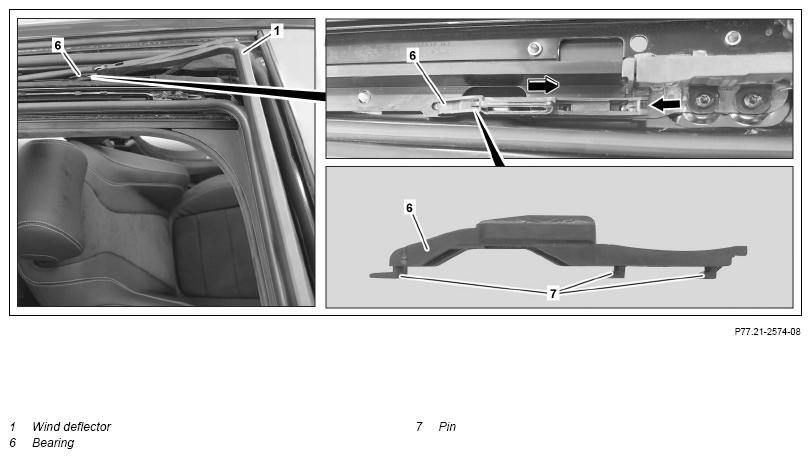

| 2 | Unclip and lift front bearing (6) (arrow) and move out in the direction of the arrow | Carefully release and move out bearing (6). Fastening lugs (7) can otherwise be damaged |
|
| Fig 1 | |||
| 3 | Install in the reverse order |
