Remove/Install Moving Glass Section Of Panoramic Roof - AR77.21-P-0503LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

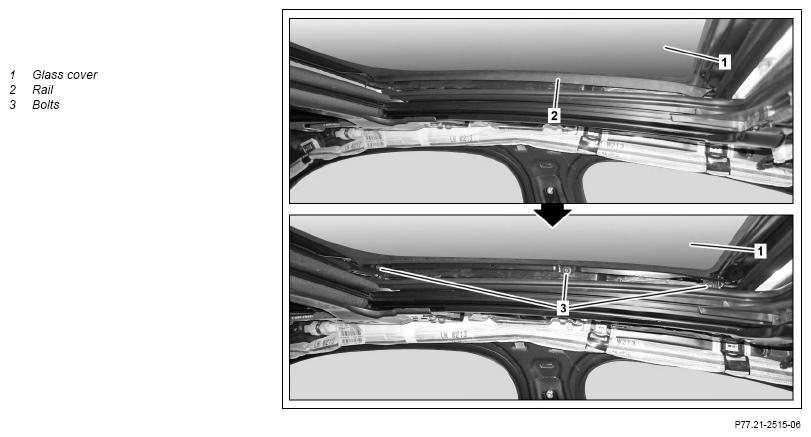

| 1 | Open panoramic sliding sunroof until left and right rails (2) are accessible | ||
| 2 | Remove left and right rails (2) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove glass cover (1) and place to one side | ||
| Install | |||
| 5 | Insert glass cover (1) in mounts and completely screw in bolts (3) | ||
| 6 | Adjust panoramic sliding roof | AR77.21-P-6924LWE |
