Cut Off Rear Panel - Ar64.10-P-5746-01LW

Model 205.0/1

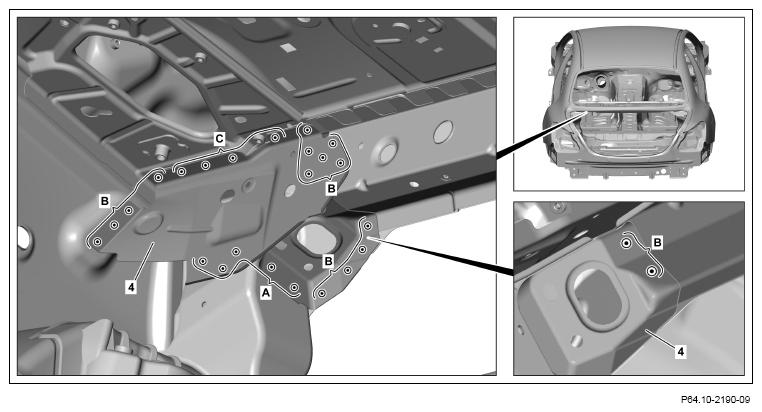

Fig 1: Left Gusset Plate Location (Model 205.0/1)

Courtesy of MERCEDES-BENZ USA

Expose impact nails on left gusset plate (4) and cut out (area A).
Expose spot welds on left gusset plate (4) and cut out (areas B and C).

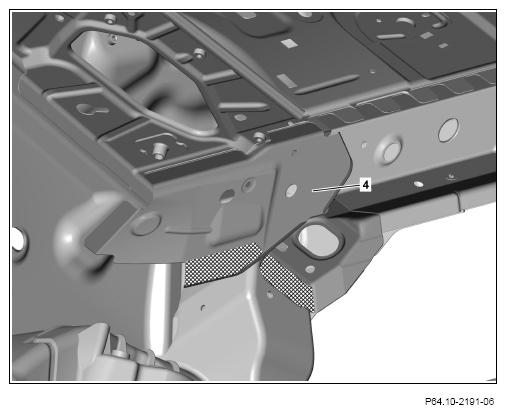

Heat left gusset plate (4) in crosshatched areas.
Cross-hatched areas are bonded.
Remove left gusset plate (4).
Cut out spot welds through two panel thicknesses (area C).

Courtesy of MERCEDES-BENZ USA

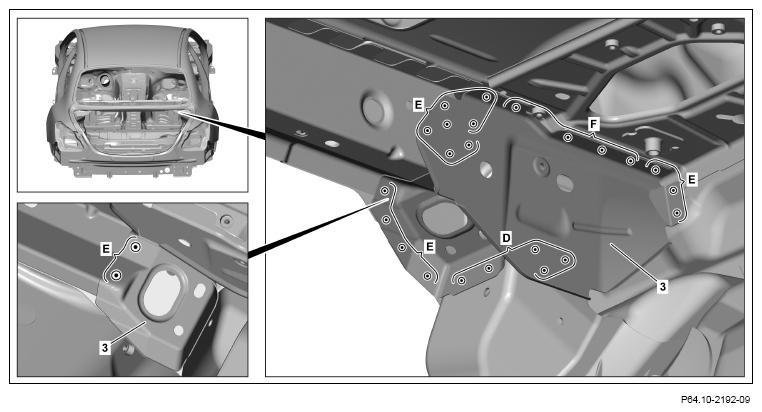

Fig 2: Right Gusset Plate Location (Model 205.0/1)
Courtesy of MERCEDES-BENZ USA
Expose impact nails on right gusset plate (3) and cut out (area D).
Expose spot welds on right gusset plate (3) and cut out (areas E and F).

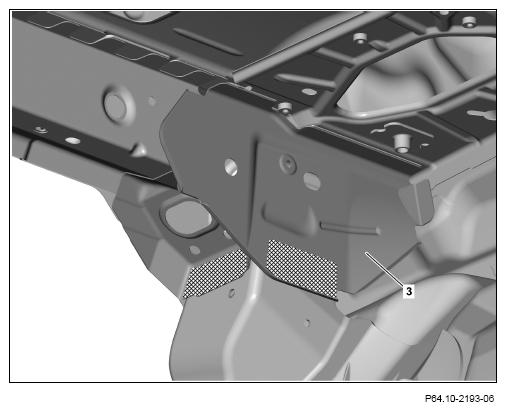

Heat right gusset plate (3) in crosshatched areas.
Cross-hatched areas are bonded.
Remove right gusset plate (3).
Cut out spot welds through two panel thicknesses (area F).

Courtesy of MERCEDES-BENZ USA

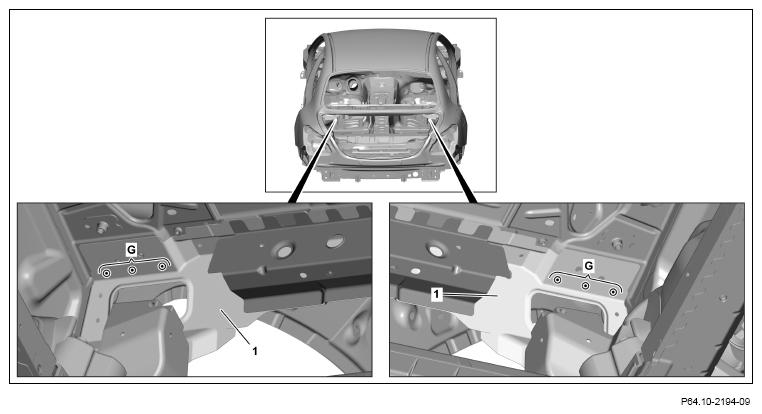

Fig 3: Rear Wall Location (Model 205.0/1)
Courtesy of MERCEDES-BENZ USA
Expose spot welds on rear wall (1) and cut out (areas G).

Courtesy of MERCEDES-BENZ USA

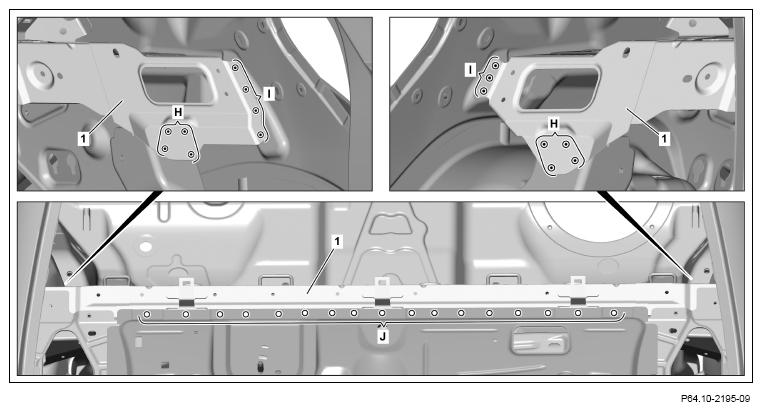

Expose impact nails on rear wall (1) and cut out (areas H).
Expose spot welds on rear wall (1) and cut out (areas I).
Drill Ø 6 mm clinch connections on rear wall (1) (area J).

Courtesy of MERCEDES-BENZ USA

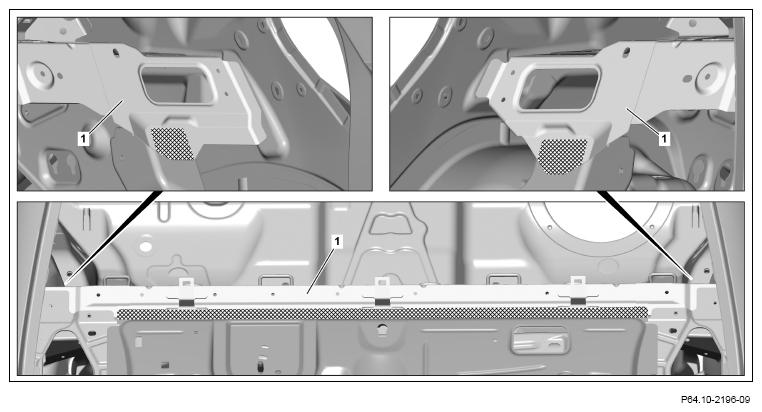

Heat rear wall (1) in cross-hatched areas.
Cross-hatched areas are bonded.
Remove rear wall (1).

Courtesy of MERCEDES-BENZ USA

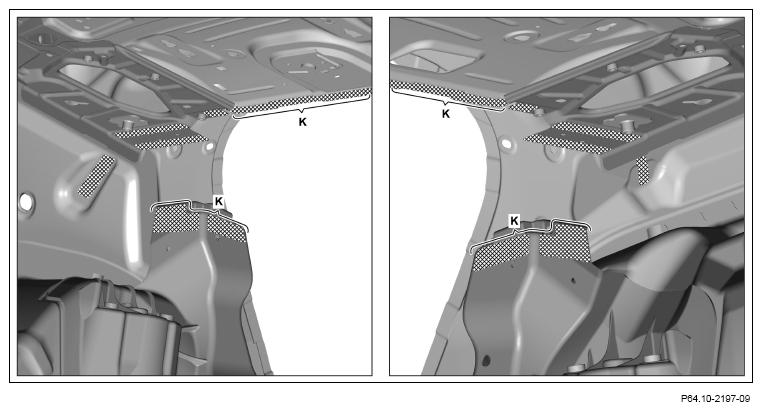

Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.
Sand down spot weld flanges to bare metal on both sides.
Remove grinding dust and drill chips.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (areas K).

Otherwise adhesion problems may occur.

Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.
Remove grinding dust and drill chips.
Observe pretreatment of bonding surfaces.
