Repair Rear End On Left Side - Ar64.20-P-1200LW

Model 205.0/1/3

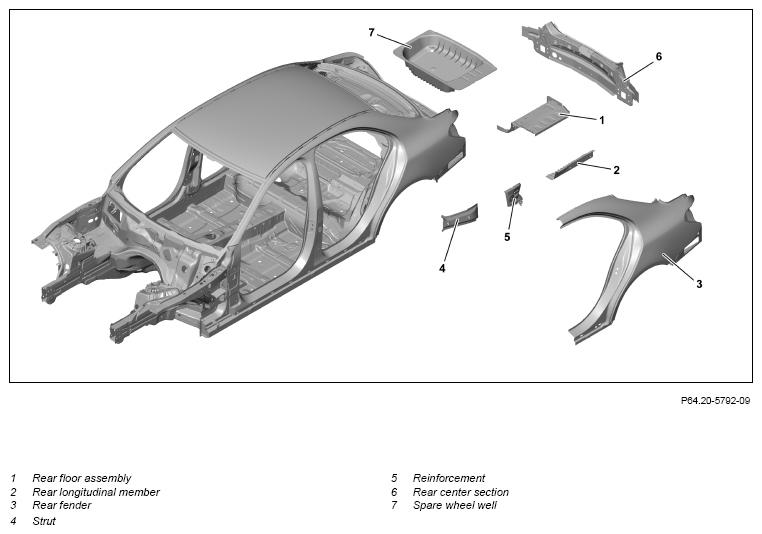

Fig 1: Rear Fender, Rear Floor, Rear Longitudinal Member, Components And Locations (Model 205.0/1/2/3)
G13023467CAUTIONREMOVINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTINSTALLINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTCourtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. See AS00.00-Z-0010-01A .
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
See AS00.00-Z-0017-01A .
  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
  Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses and protective gloves.
Use a suitable, grounded dust extraction system.
See AS60.00-Z-0007-01N .
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   See AH00.00-Z-0300-01A .
  Information on preventing damage to electronic components due to electrostatic discharge   See AH54.00-P-0001-01A .
  Notes on battery   See AH54.10-P-0001-01A .
  General information on body repair   See AH60.00-N-0001-01A .
  Pretreatment of bonding surfaces   See AH60.00-P-0008-01SX .
  General information on crack diagnosis of aluminum parts   See AH60.00-P-0014-01N .
  Note on working on aluminum components and vehicles   See AH60.00-P-0034-01LW .
  General information on MB materials   See AH98.00-P-9409-03A .
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blanket
3 Set up straightening bench with straightening bench crossmembers and straightening tool set
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   See WS60.00-P-0023K .
4 Place vehicle on straightening bench and fasten
5 Damage area, reshaping
6 Remove spare wheel well (7)   See AR64.20-P-1245LW .
7 Remove rear-end center section (6) Model 205.0/1 See AR64.20-P-1020LW .
    Model 205.3 See AR64.20-P-1020CLW .
8 Remove rear fender (3) Model 205.0/1 See AR63.50-P-1400LW .
    Model 205.3 See AR63.50-P-1400CLW .
9 Remove strut (4) from C-pillar Model 205.0/1 See AR63.20-P-0500LW .
    Model 205.3 See AR63.20-P-0500CLW .
10 Remove reinforcement (5) from C-pillar side wall Model 205.0/1 See AR63.10-P-0700LW .
    Model 205.3 See AR63.10-P-6050CLW .
11 Remove rear-end floor (1) and rear longitudinal member (2)   See AR64.20-P-1260-01LW .
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun IMPORTANTCommercially available devices/tools
Round wire brush
Spot weld milling machine
Wet/dry vacuum cleaner
Body and aluminum workplace
Aluminum tools
See WS54.00-P-0049B .
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
12 Prepare rear-end floor (1) and rear longitudinal member (2) IMPORTANTCommercially available devices/tools
Round wire brush
See AR64.20-P-1260-02LW .
    Zinc dust paint suitable for spot welding See *BR00.45-Z-1001-07A .
INSTALLING Install
  The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. See AS00.00-Z-0007-01A .
  Measures for preventing damage to components when performing electric welding and soldering work   See AH60.00-P-0001-02A .
  General information on riveting   See AH60.00-P-0003-01N .
13 Install rear-end floor (1) and rear longitudinal member (2)   See AR64.20-P-1260-03LW .
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   See WS60.00-P-0023K .
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener, 6.35 mm
Blind rivet gun (minimum pull-off force 19 kN)
Wet/dry vacuum cleaner
Body and aluminum workplace
Aluminum tools
See WS60.00-P-0021K .
    Zinc dust paint suitable for Spot welding See *BR00.45-Z-1001-07A .
    Parts kit for 2-component adhesive for body See *BR00.45-Z-1162-02A .
    Blind rivet with countersunk head 6.4x17.0 (clamping range 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) See *BR00.45-Z-1055-13A .
    Blind rivet 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) See *BR00.45-Z-1012-13A .
    Blind rivet 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) See *BR00.45-Z-1016-13A .
    Blind rivet 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) See *BR00.45-Z-1032-13A .
    Blind rivet 6.4 (clamping range 7.82 mm to 9.83 mm, draw-off strength min. 16 kN) See *BR00.45-Z-1034-13A .
14 Install reinforcement (5) on C-pillar side wall Model 205.0/1 See AR63.10-P-0700LW .
    Model 205.3 See AR63.10-P-6050CLW .
15 Install strut (4) on C-pillar Model 205.0/1 See AR63.20-P-0500LW .
    Model 205.3 See AR63.20-P-0500CLW .
16 Release vehicle from straightening bench, lift vehicle and remove straightening bench
17 Install rear fender (3) Model 205.0/1 See AR63.50-P-1400LW .
    Model 205.3 See AR63.50-P-1400CLW .
18 Install rear-end center section (6) Model 205.0/1 See AR64.20-P-1020LW .
    Model 205.3 See AR64.20-P-1020CLW .
19 Install spare wheel well (7)   See AR64.20-P-1245LW .
20 Install all detachable body components in area to be repaired
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1012-13A Blind rivet 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1032-13A Blind rivet 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) A 003 990 81 97
BR00.45-Z-1034-13A Blind rivet 6.4 (clamping range 7.82 mm to 9.83 mm, draw-off strength min. 16 kN) A 003 990 80 97
BR00.45-Z-1055-13A Blind rivet with countersunk head 6.4x17.0 (clamping range 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) A 000 991 86 32
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
