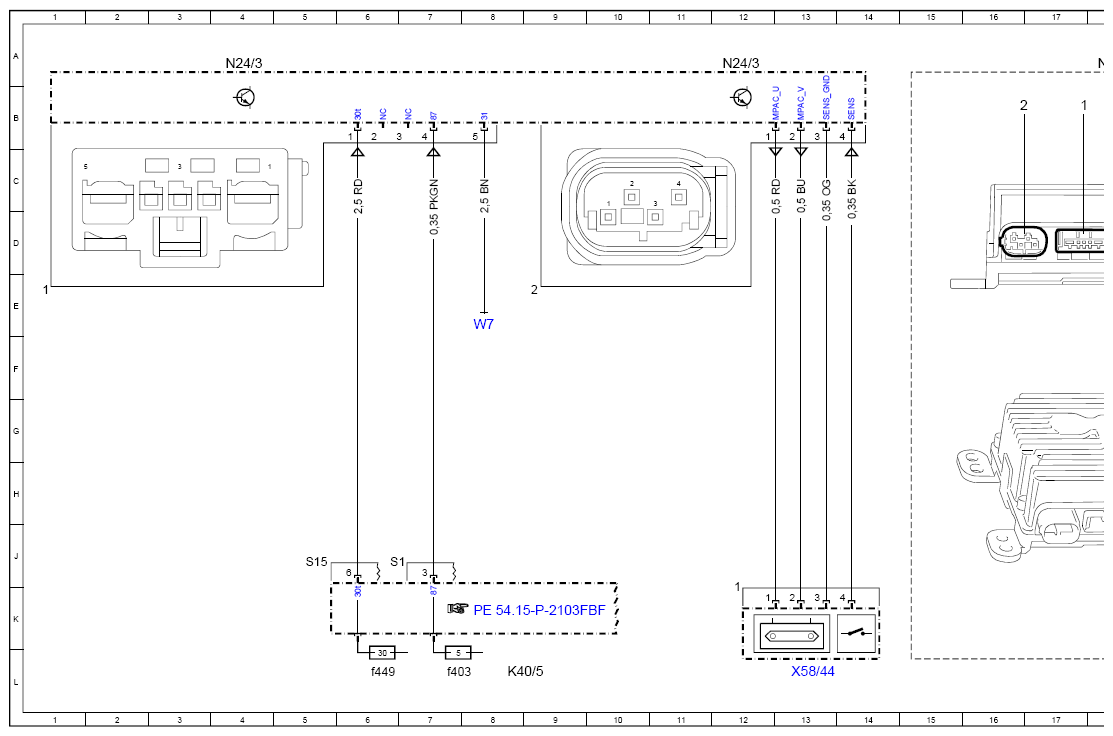

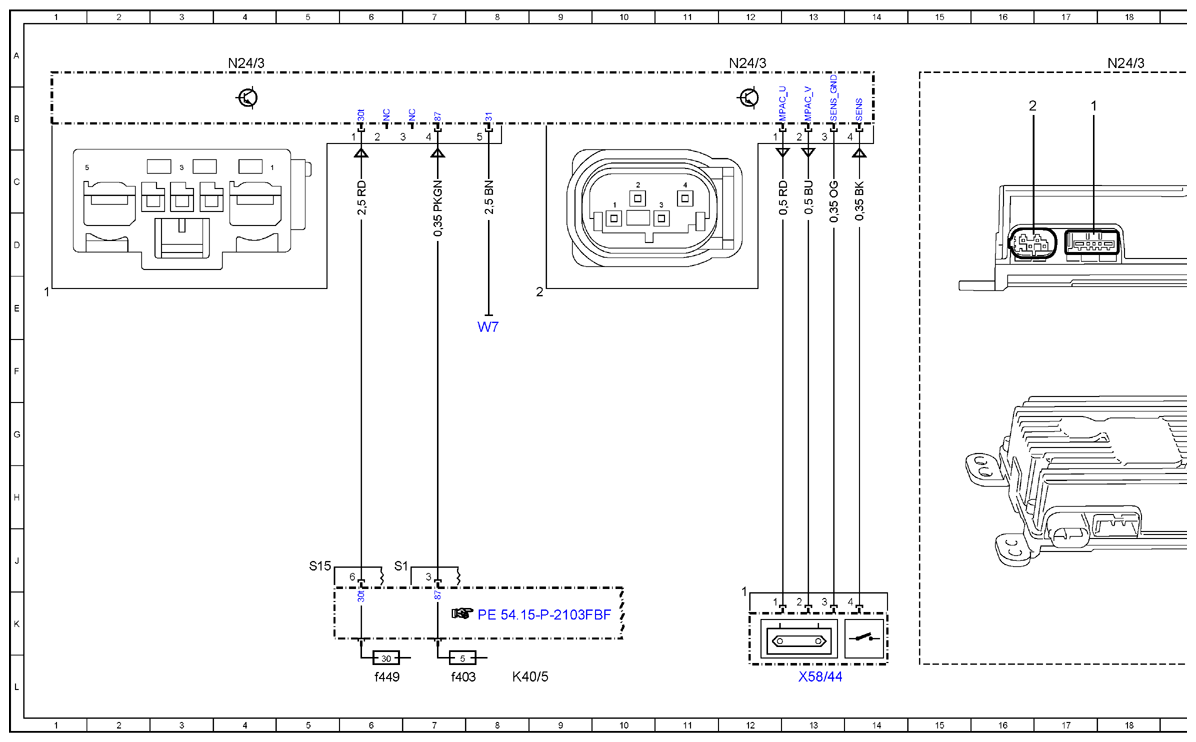

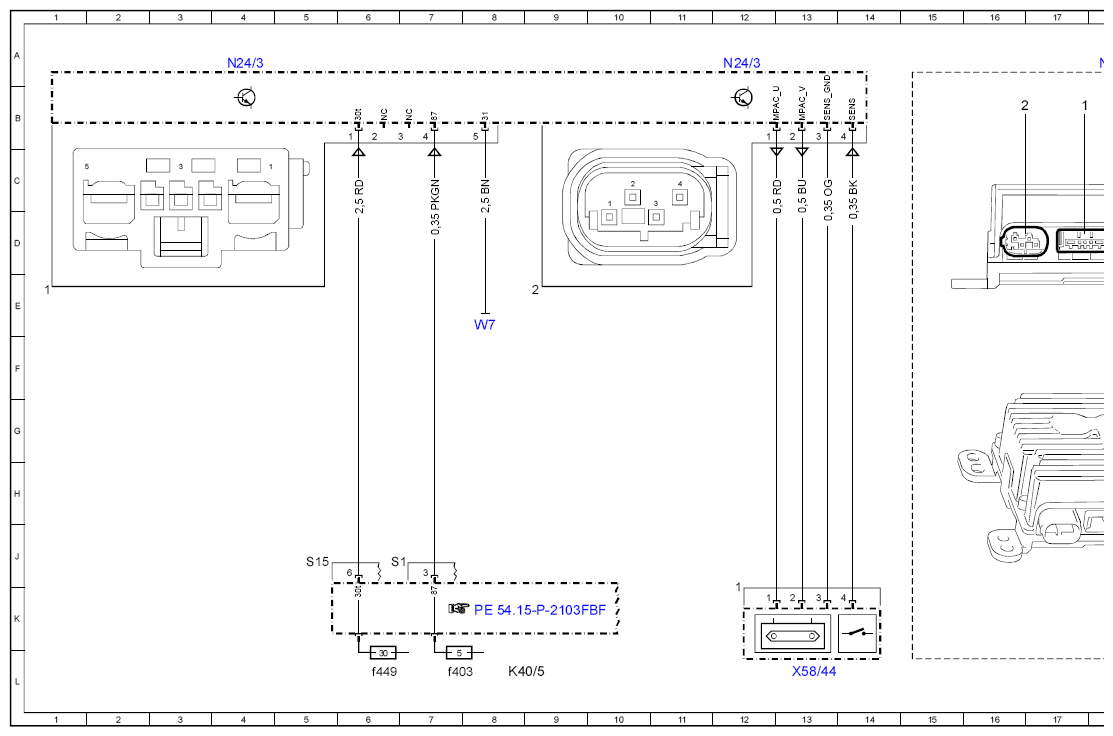

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97FBC
Model 205 as of model year 2019 with code U67 (230 V socket in interior compartment) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| K40/5 | Rear fuse and relay module | 8L |
| K40/5f403 | Fuse 403 | 7L |
| K40/5f449 | Fuse 449 | 6L |

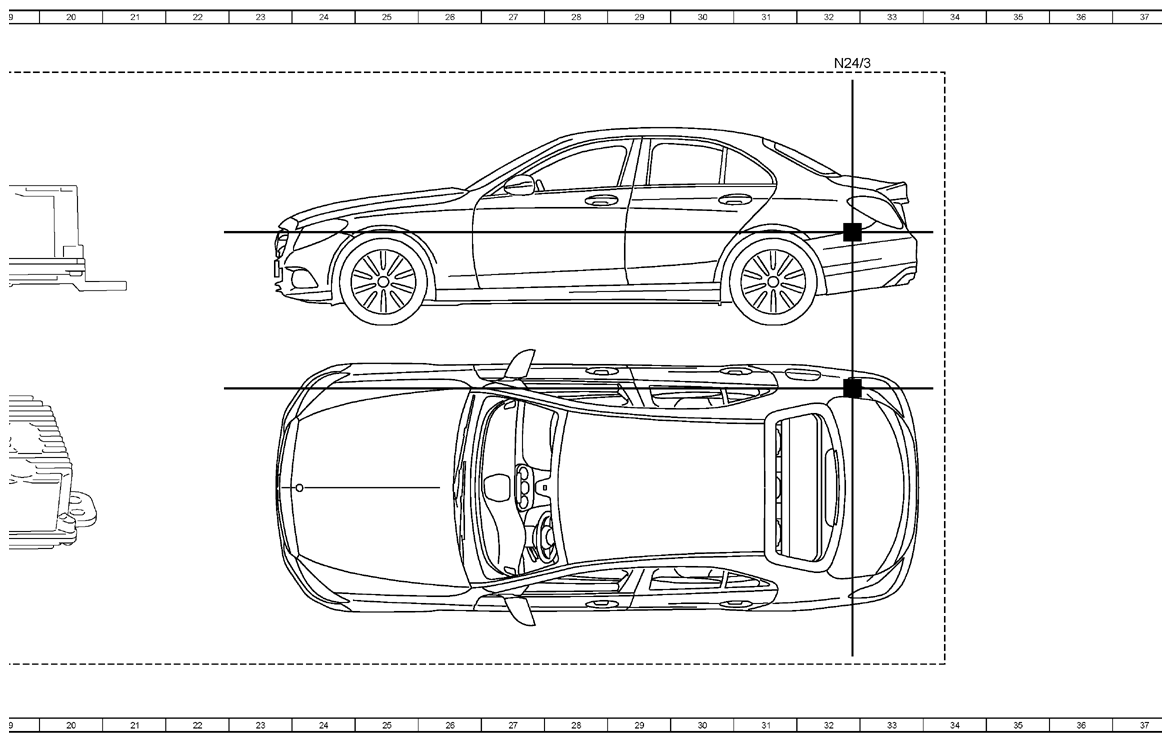

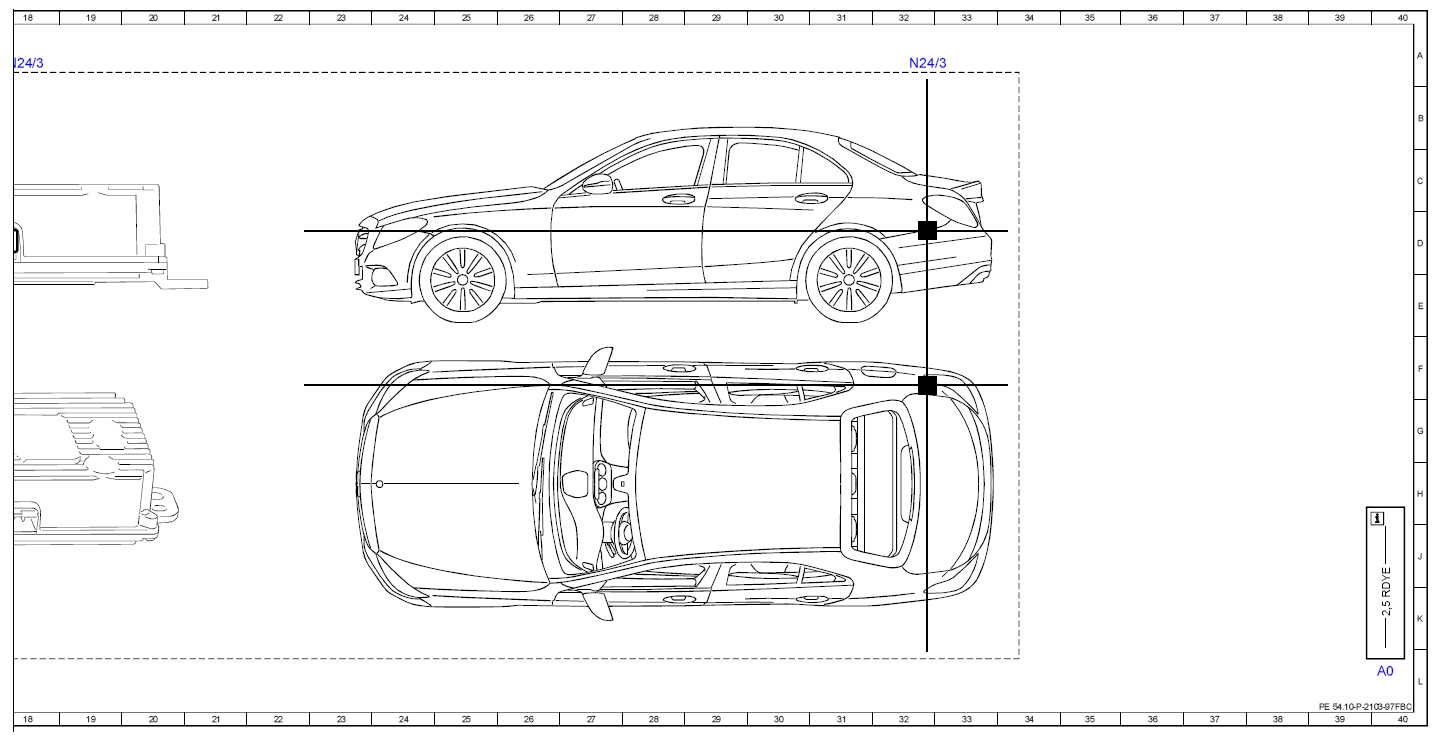

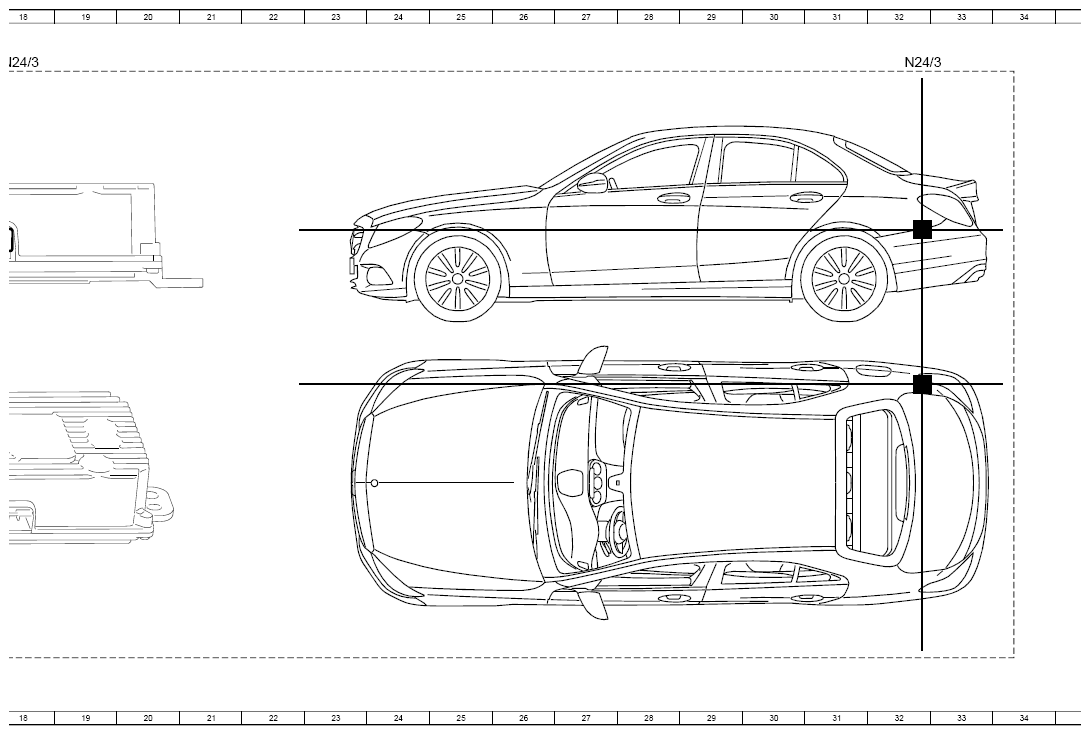

| N24/3 | DC/AC converter control unit | 4A |
| N24/3 | DC/AC converter control unit | 12A |
| N24/3 | DC/AC converter control unit | 18A |
| N24/3 | DC/AC converter control unit | 32A |
| W7 | Right wheelhouse trunk ground point | 8E |
| X58/44 | 230V socket | 13L |
