Remove/install pyrofuse electrical connector - AR54.15-P-1100NKB
MODEL 117, 156, 176
MODEL 242 with ENGINE 270 up to model year 2015
MODEL 246 up to model year 2015
| Remove | |||
| 1 | Disconnect ground line for on-board electrical system battery (G1) | AR54.10-P-0003NKB | |

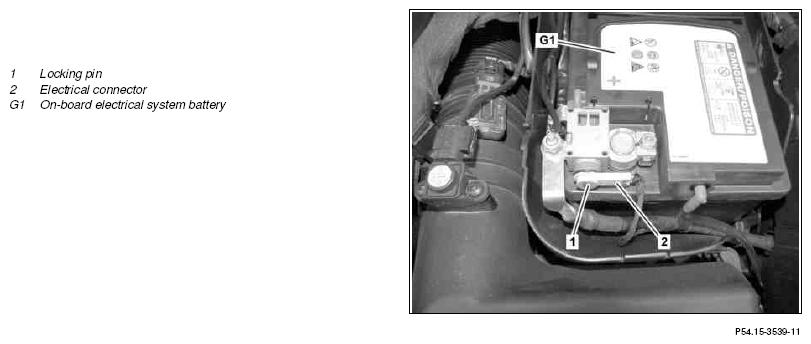

| 2 | Unlock locking pin (1) and detach electrical plug (2) from positive terminal of on-board electrical system battery (G1) | ||
| 3 | Expose wiring harness of electrical plug (2) | ||

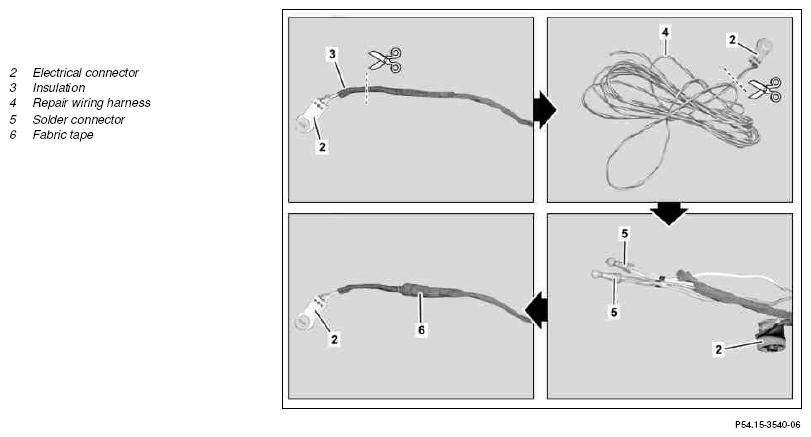

| 4 | Remove insulation (3) from wiring harness of electrical plug (2) to behind damaged area and cut off wiring harness | ||
| Install | |||
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 5 | Cut repair wiring harness (4) to same size as removed part and connect to wiring harness of electrical plug (2) using solder connector (5) | ||
| Notes on soldering | AH00.19-P-1000-10A | ||
| 6 | Wrap repair area with fabric tape (6) | ||
| 7 | Route wiring harness of electrical plug (2) to on-board electrical system battery (G1) and fix in place | The wiring harness of the electrical plug (2) will otherwise be damaged as a result of chafing and crushing. |
|
| 8 | Connect electrical plug (2) to positive terminal of on-board electrical system battery (G1) and lock locking pin (1) | ||
| 9 | Connect ground line for on-board electrical system battery (G1) | AR54.10-P-0003NKB |
