Remove/install passenger's side interior fuse box - AR54.15-P-1311NKB

MODEL 117, 156, 176, 242, 246

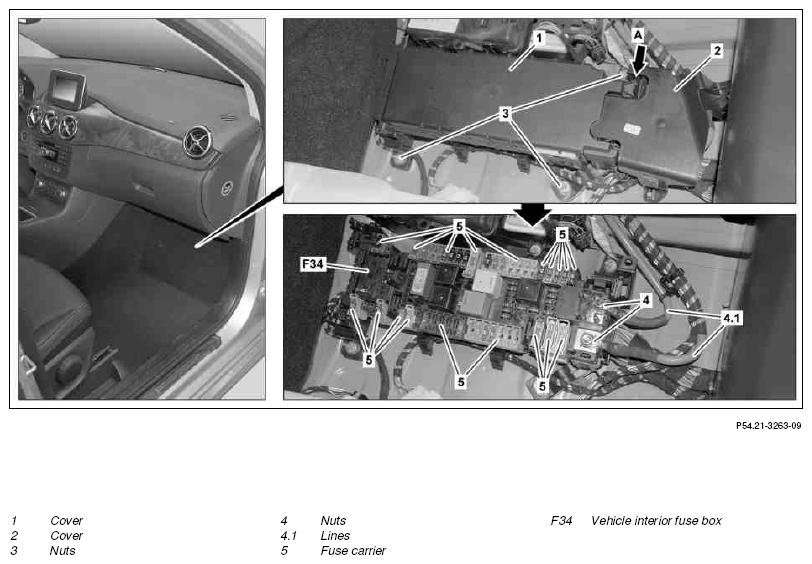

Fig 1: Identifying Passenger Side Interior Fuse Box Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

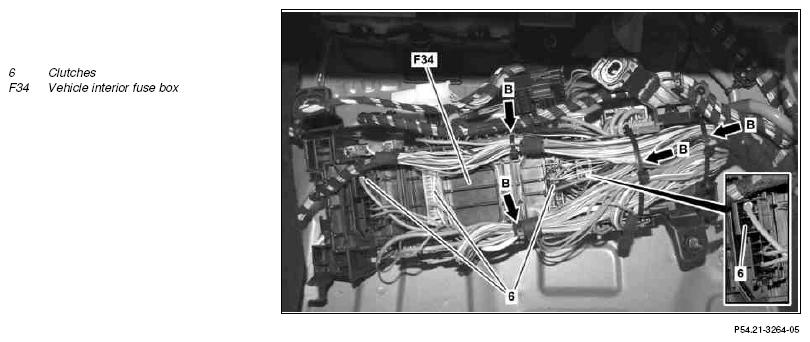

Fig 2: Identifying Passenger Side Interior Fuse Box Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003NKB
2	Fold up floor covering in footwell on passenger side
3	Release lock (arrow A) and remove cover (1)
4	Unclip and remove cover (2)
5	Unscrew nuts (3)
6	Unscrew nuts (4) and remove lines (4.1)	Nut, positive line to fuse and relay module in interior	*BA54.15-P-1003-01I
7	Release and remove fuse carrier (5)
8	Take the vehicle interior fuse boxes (F34) out of the guides and turn over
9	Cut cable tie (arrow B) in two	Replace cable tie (arrows B).
10	Disconnect electrical connectors (6) and remove vehicle interior fuse boxes (F34)
11	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			MODEL 117	MODEL 156
BA54.15-P-1003-01I	Nut, positive line to fuse and relay module in interior	M6	Nm	8	8
		M8	Nm	16	16

FUSE AND RELAY BOX

Number	Designation			MODEL 176	MODEL 242
BA54.15-P-1003-01I	Nut, positive line to fuse and relay module in interior	M6	Nm	8	8
		M8	Nm	16	16

FUSE AND RELAY BOX

Number	Designation			Model 246
BA54.15-P-1003-01I	Nut, positive line to fuse and relay module in interior	M6	Nm	8
		M8	Nm	16
