Remove/install multifunction camera - AR54.21-P-3000NKB
MODEL 117, 156, 176, 242, 246 with CODE 476 (Lane keeping assist)
MODEL 117, 156, 176, 242, 246 with CODE 513 (Speed Limit Assist)
MODEL 117, 156, 176, 242, 246 with CODE 608 (Adaptive Highbeam Assist)

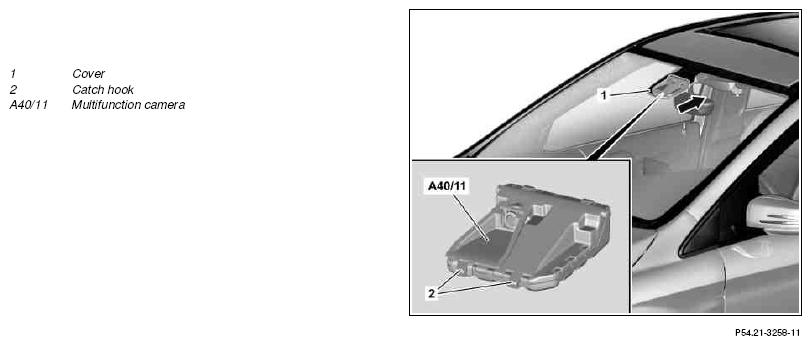

Shown on model 246
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Unclip cover (1) downwards and remove | ||
| 3 | Push multifunction camera (A40/11) backwards using assembly wedge (arrow) and unclip catch hook (2) from bracket | The lens of the multifunction camera (A40/11) must not be touched. Otherwise dirt could cause the multifunction camera (A40/11) to malfunction. |
|
| Fig 2 | |||
| 4 | Disconnect electrical connectors from multifunction camera (A40/11) | ||
| 5 | Install in the reverse order | ||
| 6 | Calibrate multifunction camera (A40/11) using diagnostic system | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| AD00.00-P-2000-04A |
