Remove/install cigarette lighter - AR54.10-P-0030NKB

MODEL 117 with CODE 301 (Ashtray package/smoker package)

MODEL 156 with CODE 301 (Ashtray package/smoker package)

MODEL 176 with CODE 301 (Ashtray package/smoker package)

MODEL 242 with CODE 301 (Ashtray package/smoker package)

MODEL 246 with CODE 301 (Ashtray package/smoker package)

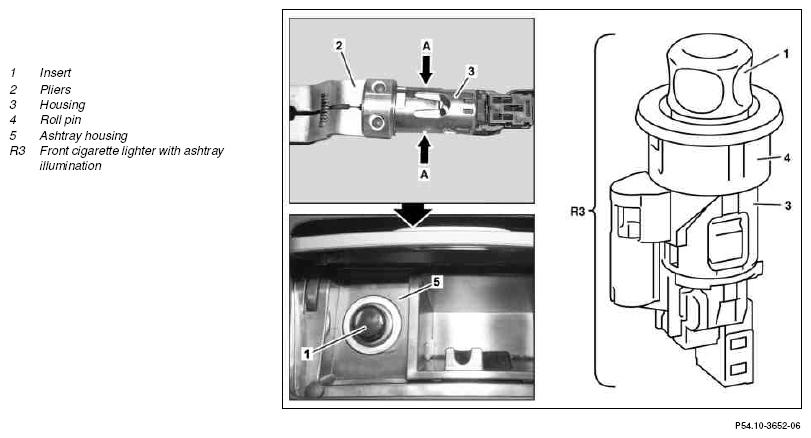

Fig 1: Identifying Cigarette Lighter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from electronic ignition lock control unit
2	Pull insert (1) out of the housing (3) of the cigarette lighter with front ashtray illumination (R3)
3	Insert pliers (2) into the housing (3) and pull the housing (3) out of the clamping sleeve (4)	The pins of the pliers (2) must engage in the housing cutouts (3) (arrows A).
		Pliers	Fig 2
4	Unclip and remove spring pin (4) from ashtray housing by pressing back the two catch hooks (5)	Check for correct installation position of spring pin (4).
5	Install in the reverse order
