Remove/install battery sensor - AR54.10-P-0002NKB

MODEL 117

MODEL 156

MODEL 176

MODEL 242

MODEL 246

Shown on MODEL 246

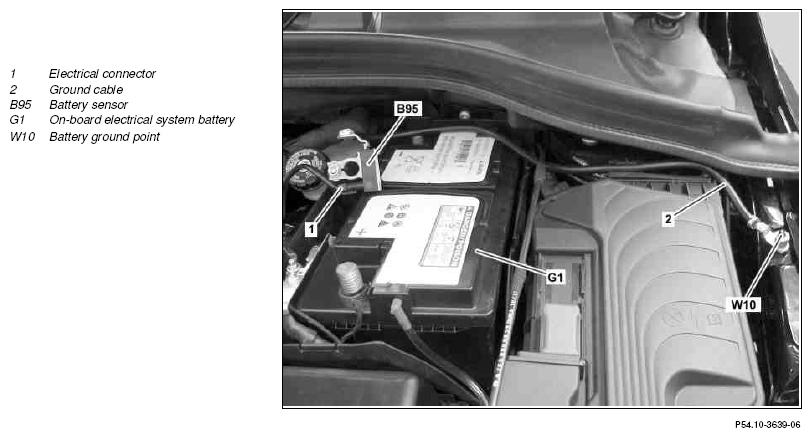

Fig 1: Identifying Battery Sensor Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Remove/install
1	Disconnect ground line (2) from the on-board electrical system battery (G1)		AR54.10-P-0003NKB
2	Disconnect electrical connector (1) from battery sensor (B95)
3	Unclip ground line (2) from retaining clip	MODEL 242 with CODE ME01 (Electric motor)
4	Detach ground line (2) from battery ground point (W10) and remove with battery sensor (B95)	Nut, battery ground line to body	*BA54.10-P-1004-01I
5	Install in the reverse order
