Remove/install backup camera - AR54.65-P-0030NKB
MODEL 117, 156, 176 with CODE 218 (Rear view camera)
MODEL 242, 246 with CODE 218 (Rear view camera)
MODIFICATION NOTES
| 25.8.15 | "Perform initial startup of reversing camera (B84/3)" added. | Operation step 15 |

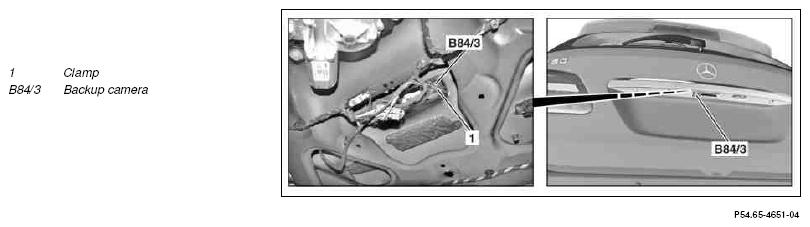

Shown on model 246

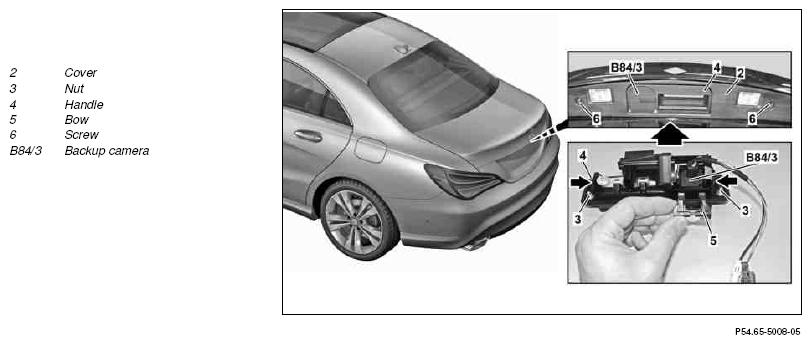

Model 117, shown on model 117.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove lower and center trim from liftgate | MODEL 117.9, 156, 176, 242, 246 | |
| Model 156, 176, 246 with code 218 (Rear view camera) |
AR72.20-P-6617NKA | ||
| 3 | Remove hazard warning triangle from holder | Model 117.3 | |
| 4 | Detach hinge bracket trim piece from trunk lid and slide downwards into side trunk panel | Model 117.3 | |
| Fig 3 | |||
| 5 | Unclip and remove trunk lid cover | Model 117.3 | |
| Fig 3 | |||
| 6 | Disconnect electrical connection from handle (4) | MODEL 117 | |
| 7 | Unscrew bolts (6) and unclip cover (2) from trunk lid using a suitable tool | Model 117.3 | |
| 8 | Expose and detach electrical connections from reversing camera (B84/3) | ||
| 9 | Unscrew nuts (3) | MODEL 117 | |
| 10 | Unscrew safety screw of clips (1) | MODEL 176 | |
| 11 | Insert a suitable tool between clip (1) and reversing camera (B84/3), release clip (1) and remove | MODEL 117.9, 156, 176, 242, 246 | |
| 12.1 | Remove reversing camera (B84/3) from liftgate | MODEL 156, 176, 242, 246 | |
| 12.2 | Press in catch tabs (arrows) and remove handle (4) with reversing camera (B84/3) | MODEL 117 | |
| 13 | Unclip bracket (5) and remove reversing camera (B84/3) at handle (4) | MODEL 117 | |
| 14 | Install in the reverse order | ||
| 15 | Perform initial startup of reversing camera (B84/3) | If the reversing camera (B84/3) was replaced. | |
| AD00.00-P-2000-04A | |||
| 16 | Calibrate reversing camera (B84/3) using the diagnostic system and calibration device | Model 117.3 up to 11/2/14, 156 up to 8/31/15, 176 up to 8/31/15 with code 218 (Rear view camera) Model 242 up to 11/2/14, 246 up to 11/2/14 with code 218 (Rear view camera) |
|
| AD00.00-P-2000-04A | |||
| Fig 4 |
