Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996KN
MODEL 117, 156, 176, 242, 246

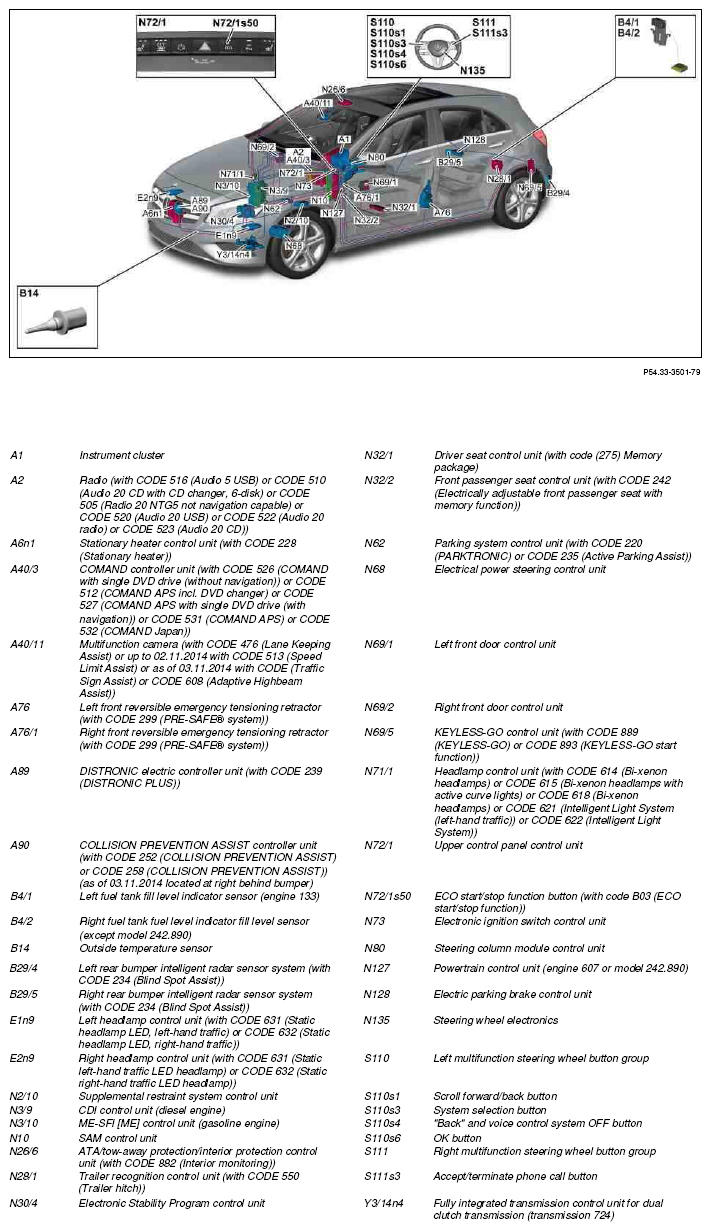

Illustrated: model 176
Depending on the equipment installed, the following components that are not shown are installed:
- Tire pressure monitor control unit (N88) (with CODE 475 (Tire pressure monitor), Schrader company)
- CNG control unit (N118/2) (engine 270.9 with CODE 924 (Bivalent natural gas drive))
- Battery management system control unit (N82/2) (model 242.890)
- Powertrain control unit gateway (N93/8) (model 242.890)
- Emergency call system control unit (N123/4) (with CODE 348 (Emergency call/assist system))
- Power electronics control unit (N147/2) (model 242.890) P54.32-8656-79

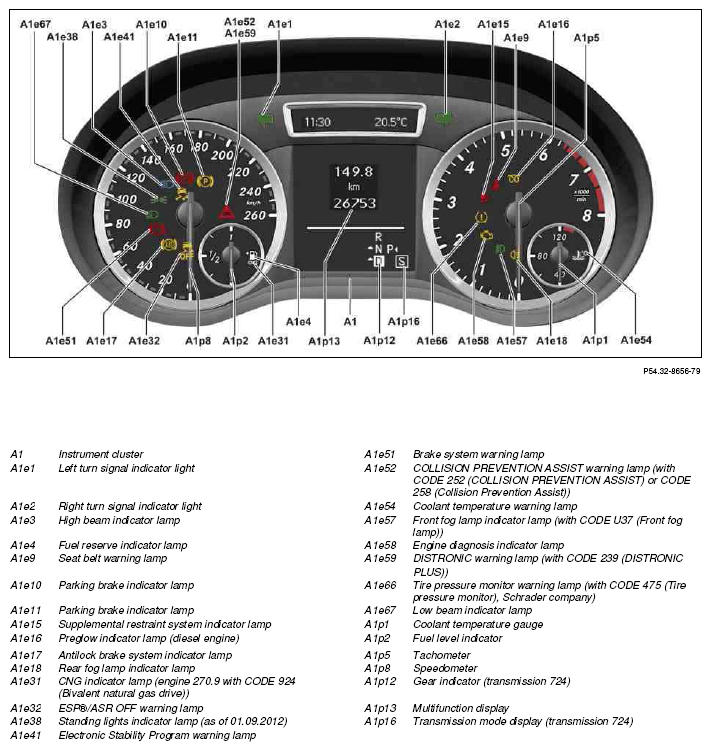

Except model 242.890, except engine 133; illustration shows Economic Commission for Europe (ECE) variant, model 246 up to 02.11.2014
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)

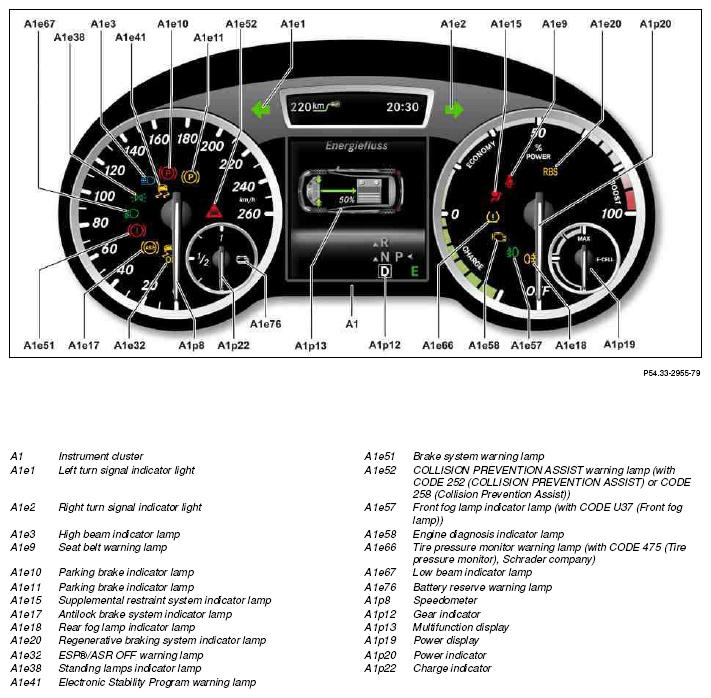

Model 242.890; illustration shows ECE variant
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)

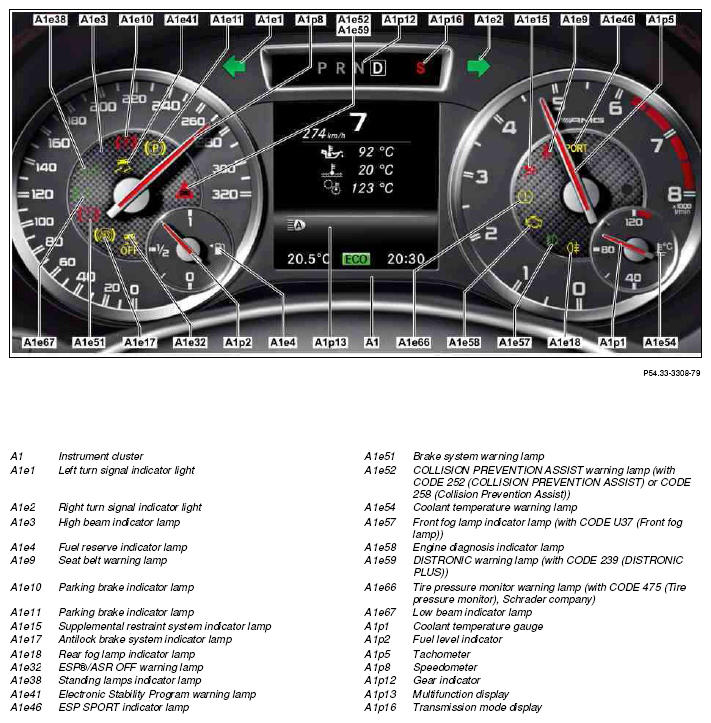

On engine 133, shown: ECE variant
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)
| Component description for instrument cluster | A1 | GF54.30-P-6000KN | |
| Component description for the radio | MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 523 (Audio 20 CD) MODEL 156 up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 156 up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD) MODEL 176 up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 516 (Audio 5 USB) without CODE 523 (Audio 20 CD) MODEL 176 up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 516 (Audio 5 USB) A2 |
GF82.60-P-3122KN | |
| MODEL 176 with CODE 516 (Audio 5 USB) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 523 (Audio 20 CD) A2 |
GF82.60-P-3122KNA | ||
| MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 520 (Audio 20 USB) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122KNM | ||
| Stationary heater control unit, component description | MODEL 117, 156, 176, 242, 246 with CODE 228 (Auxiliary heater) A6n1 | GF83.70-P-4066KN | |
| Component description for COMAND controller unit | MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 498 (Japanese version) with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 498 (Japanese version) with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136KN | |
| MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 531 (COMAND APS) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 532 (COMAND Japan) A40/3 |
GF82.85-P-3136KNM | ||
| Component description for multifunction camera | MODEL 117, 156, 176, 242, 246 as of model year 2015 with CODE 513 (Traffic Sign Assist) MODEL 117, 156, 176, 242, 246 up to model year 2015 with CODE 513 (Speed Limit Assist) MODEL 117, 156, 176, 242, 246 with CODE 476 (Lane keeping assist) MODEL 117, 156, 176, 242, 246 with CODE 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300KN | |
| Component description for front reversible emergency tensioning retractors | MODEL 117, 156, 176, 242, 246 with CODE 299 (PRE-SAFE® system) A76, A761 | GF91.40-P-4020KN | |
| Component description for DISTRONIC electric controller unit | MODEL 117, 156, 176, 242 (except 242.890), 246 with CODE 239 (DISTRONIC PLUS) A89 |
GF30.30-P-3213KN | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 117, 156, 176 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 176, 242, 246 with CODE 252 (COLLISION PREVENTION ASSIST) MODEL 242, 246 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 242, 246 up to model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214KN | |
| Component description for intelligent radar sensor control unit | MODEL 117, 156, 176, 242, 246 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 | GF30.30-P-3305KN | |
| Headlamp control unit, component description | MODEL 117, 156, 176, 242, 246 with CODE 614 (Bi-xenon headlamps) MODEL 117, 156, 176, 242, 246 with CODE 618 (Bi-xenon headlamps) MODEL 117, 156, 176, 242, 246 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 117, 156, 176, 242, 246 with CODE 622 (Intelligent Light System) MODEL 117, 156, 242, 246 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 246 with CODE 631 (Headlamps, LED, static, left-hand traffic) MODEL 246 with CODE 632 (Headlamps, LED, static, right-side traffic) E1n9, E2n9, N71/1 |
GF82.10-P-2020KN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KN | |
| Component description for CDI control unit | MODEL 117, 176, 246 with ENGINE 607 N3/9 | GF07.16-P-6000ORA | |
| MODEL 117, 156, 176, 246 with ENGINE 651 N3/9 | GF07.16-P-6000OLB | ||
| Component description for ME-SFI (ME) control unit | MODEL 117, 156, 176 with ENGINE 133.9 MODEL 117, 156, 176 with ENGINE 133 N3/10 |
GF07.61-P-6000MTA | |
| MODEL 117, 156, 176, 246 with ENGINE 270 N3/10 | GF07.61-P-6000MT | ||
| MODEL 242 with ENGINE 270 with CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MTC | ||
| SAM control unit, component description | N10 | GF54.21-P-4157KN | |
| ATA/tow-away protection/interior protection control unit, component description | MODEL 117, 156, 176, 242, 246 with CODE 882 (Interior motion sensor) N26/6 |
GF80.50-P-4131KN | |
| Component description for trailer recognition control unit | MODEL 117, 156, 176, 246 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050KN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KN | |
| Component description for driver seat control unit | MODEL 117, 156, 176, 242, 246 with CODE 275 (Memory package) N32/1 | GF91.29-P-5231KN | |
| Component description for front passenger seat control unit | MODEL 117, 156, 176, 242, 246 with CODE 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241KN | |
| Parking system control unit component description | MODEL 117, 156, 176, 242, 246 with CODE 220 (PARKTRONIC) MODEL 117, 156, 176, 242, 246 with CODE 235 (Active Parking Assist) N62 |
GF54.65-P-5002KN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010KN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001KN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009KN | |
| Component description for KEYLESS-GO control unit | MODEL 117, 156, 176, 242, 246 with CODE 889 (KEYLESS-GO) MODEL 117, 156, 176, 242, 246 with CODE 893 (KEYLESS-GO) N69/5 |
GF80.61-P-4204KN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040KN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001KN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051KN | |
| Component description for battery management system control unit | MODEL 242.890 with ENGINE 780.990 N82/2 | GF54.10-P-3012KN | |
| Component description for tire pressure monitor control unit | MODEL 117, 156, 176, 242, 246 with CODE 475 (Tyre pressure monitoring system) Schrader N88 |
GF40.15-P-5124KN | |
| Powertrain gateway control unit, component description | MODEL 242.890 with ENGINE 780.990 N93/8 | GF08.20-P-3007KN | |
| Component description for CNG control unit | MODEL 242 with ENGINE 270 with CODE 924 (Bivalent natural gas drive) N118/2 |
GF07.54-P-4000MTC | |
| Component description for emergency call system control unit | MODEL 117.3, 156, 242, 246 with CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212KNU | |
| Drivetrain control unit, component description | MODEL 176 with ENGINE 607 N127 | GF54.21-P-2141ORA | |
| MODEL 242.890 with ENGINE 780.990 N127 | GF54.21-P-2141KN | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005KN | |
| Component description for power electronics control unit | MODEL 242.890 with ENGINE 780.990 N147/2 | GF08.20-P-1001KN | |
| Fully integrated transmission control unit for dual clutch transmission, component description | MODEL 117, 156, 176, 242, 246 with TRANSMISSION 724.0 Y3/14n4 | GF27.60-P-5170SIA | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997KN |
