Overview of system components for driver assistance systems - GF54.00-P-9998KN
MODEL 117, 156, 176, 242, 246

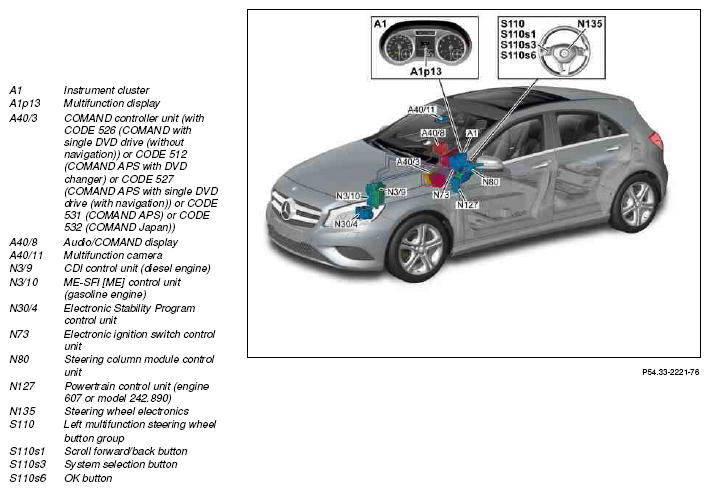

Attention assistance system; illustration shows model 176

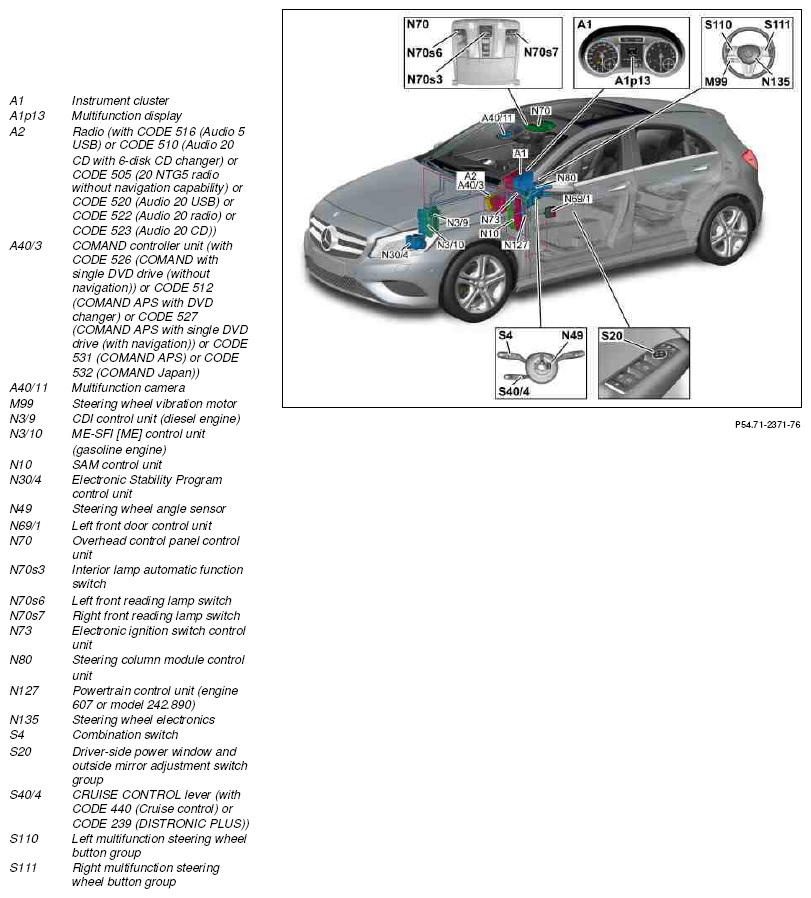

Cruise control (with CODE 440 (Cruise control) or CODE 239 (DISTRONIC PLUS)), shown on model 176
The following components which are not shown in the illustration are also installed on model 242.890:
- Gateway powertrain control unit (N93/8)
- Power electronics control unit (N147/2)

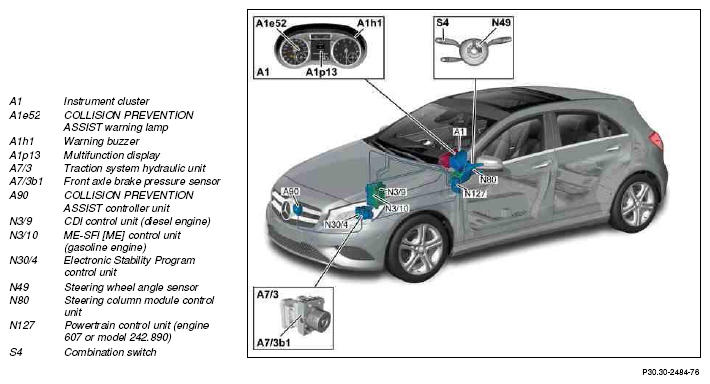

COLLISION PREVENTION ASSIST (with CODE 252 (COLLISION PREVENTION ASSIST) or CODE 258 (Collision Prevention Assist)), shown on model 176

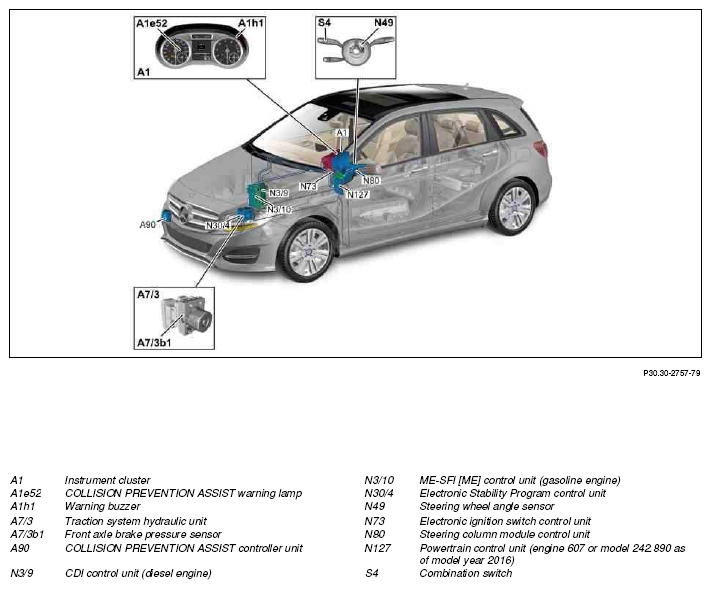

Model 246, 242 with COLLISION PREVENTION ASSIST PLUS (with CODE 258 (COLLISION PREVENTION ASSIST)) as of 03.11.14, model 117, 156, 176 with COLLISION PREVENTION ASSIST PLUS (with CODE 258 (COLLISION PREVENTION ASSIST)) as of model year 2016; illustration shows model 246
On model 242.890, the COLLISION PREVENTION ASSIST controller unit is located in the middle behind the front brand emblem in the radiator trim.

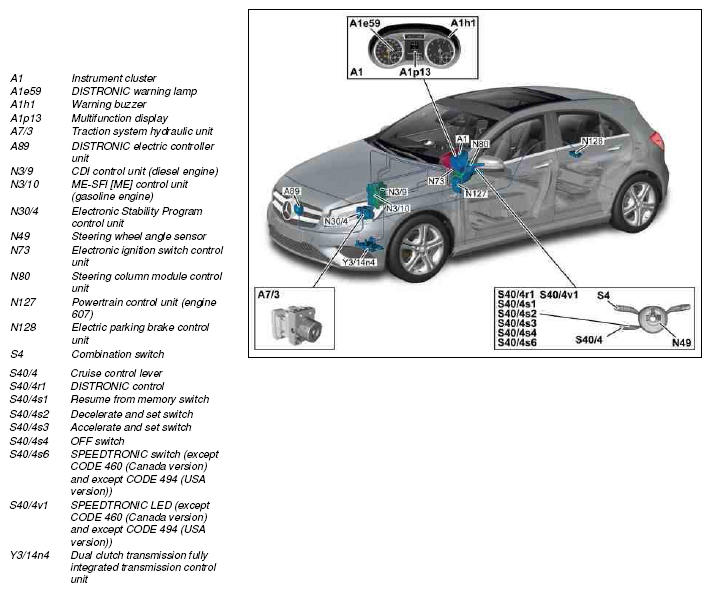

DISTRONIC PLUS (with CODE 239 (DISTRONIC PLUS)), shown on model 176
Blind Spot Assist (with CODE 234 (Blind Spot Assist)), shown on model 176

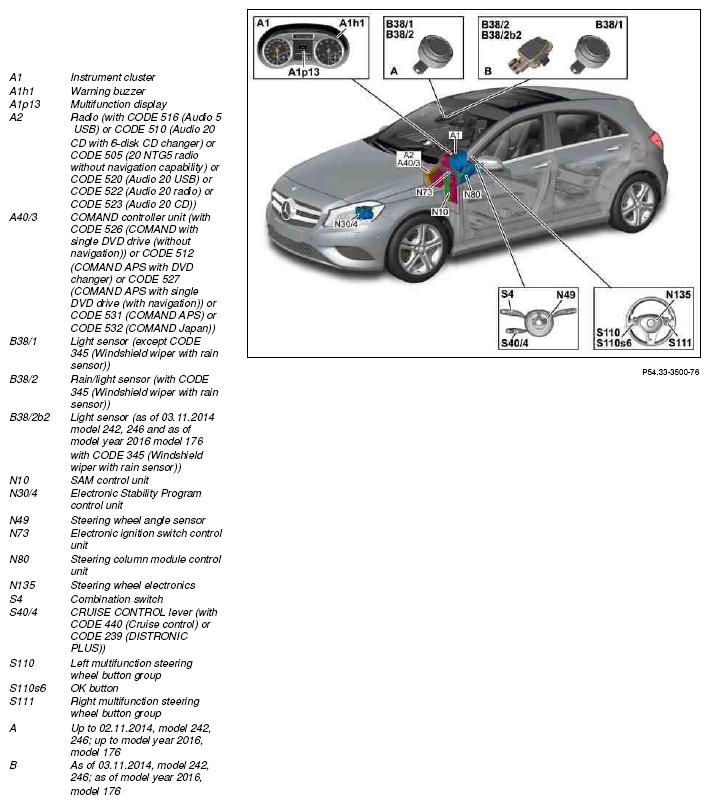

Lane Keeping Assist (with CODE 476 (Lane Keeping Assist)); illustration shows model 176
Traffic Sign Assist (with CODE 513 (Traffic Sign Assist)) as of 03.11.14; illustration shows model 176
Speed Limit Assist (with CODE 513 (Speed Limit Assist)) up to 02.11.2014, shown on model 176
| Component description for instrument cluster | A1 | GF54.30-P-6000KN | |
| Component description for the radio | MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 523 (Audio 20 CD) MODEL 156 up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 156 up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD) MODEL 176 up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 516 (Audio 5 USB) without CODE 523 (Audio 20 CD) MODEL 176 up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 516 (Audio 5 USB) A2 |
GF82.60-P-3122KN | |
| MODEL 176 with CODE 516 (Audio 5 USB) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 523 (Audio 20 CD) A2 |
GF82.60-P-3122KNA | ||
| MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 520 (Audio 20 USB) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122KNM | ||
| Cradle for navigation module, component description | MODEL 117.3, 156, 176, 242, 246 with CODE 508 (Navigation box preinstallation) MODEL 117.3, 156, 176, 242, 246 with CODE 509 (Navigation box) A2/30-1, A2/30 |
GF82.85-P-3137KN | |
| Component description for COMAND controller unit | MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 498 (Japanese version) with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 498 (Japanese version) with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 156 up to 8/31/15, 176 up to 8/31/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136KN | |
| MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 531 (COMAND APS) MODEL 117 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 with CODE 532 (COMAND Japan) A40/3 |
GF82.85-P-3136KNM | ||
| Component description for Audio/COMAND display | MODEL 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14 up to model year 2015 MODEL 156 up to 8/31/15 up to model year 2016 MODEL 176 up to 8/31/15 up to model year 2016 without CODE 516 (Audio 5 USB) A40/8 |
GF54.30-P-6150KN | |
| MODEL 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14 as of model year 2015 MODEL 117.9 as of 9/1/15, 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016 A40/8 |
GF54.30-P-6150KNM | ||
| Component description for multifunction camera | MODEL 117, 156, 176, 242, 246 as of model year 2015 with CODE 513 (Traffic Sign Assist) MODEL 117, 156, 176, 242, 246 up to model year 2015 with CODE 513 (Speed Limit Assist) MODEL 117, 156, 176, 242, 246 with CODE 476 (Lane keeping assist) MODEL 117, 156, 176, 242, 246 with CODE 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300KN | |
| Component description for DISTRONIC electric controller unit | MODEL 117, 156, 176, 242 (except 242.890), 246 with CODE 239 (DISTRONIC PLUS) A89 |
GF30.30-P-3213KN | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 117, 156, 176 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 176, 242, 246 with CODE 252 (COLLISION PREVENTION ASSIST) MODEL 242, 246 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 242, 246 up to model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214KN | |
| Component description for intelligent radar sensor control unit | MODEL 117, 156, 176, 242, 246 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 |
GF30.30-P-3305KN | |
| Component description for CDI control unit | MODEL 117, 176, 246 with ENGINE 607 N3/9 | GF07.16-P-6000ORA | |
| MODEL 117, 156, 176, 246 with ENGINE 651 N3/9 | GF07.16-P-6000OLB | ||
| Component description for ME-SFI (ME) control unit | MODEL 117, 156, 176 with ENGINE 133.9 N3/10 | GF07.61-P-6000MTA | |
| MODEL 117, 156, 176, 246 with ENGINE 270.9 N3/10 | GF07.61-P-6000MT | ||
| MODEL 242 with ENGINE 270.9 with CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MTC | ||
| SAM control unit, component description | N10 | GF54.21-P-4157KN | |
| Component description for trailer recognition control unit | MODEL 117, 156, 176, 246 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050KN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001KN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009KN | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216KN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001KN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051KN | |
| Drivetrain control unit, component description | MODEL 117, 176, 246 with ENGINE 607 N127 | GF54.21-P-2141ORA | |
| MODEL 242.890 with ENGINE 780.990 N127 | GF54.21-P-2141KN | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005KN | |
| Fully integrated transmission control unit for dual clutch transmission, component description | MODEL 117, 156, 176, 242, 246 with TRANSMISSION 724.0 Y3/14n4 | GF27.60-P-5170SIA | |
| Table of contents for function description of driver assistance systems | GF54.00-P-0998KN |
