Carry Out Distance And Comparison Measurements On Rear Axle - AR40.30-P-0402-02W
MODEL 172
TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1362 (±2) |
| H2 | mm | 1739 (±2) | ||
| H3 | mm | 1044 (±2) | ||
| H4 | mm | 809 (±2) | ||
| H5 | mm | 1083 (±2) | ||
| See picture | - | |||
The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.
The configuration of the measuring bolts is shown in the Table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/07/10 = 168 589 07 63 02 (support stud)
168 589 07 63 07 (extension)
168 589 07 63 10 (measuring tip)
| Clearance | Measuring bolt configuration | Telescopic measuring rod |
|---|---|---|
| H1 | 02/06/08/05/socket wrench bit | 124 589 02 19 00 |
| H2 | 02/06/08/05/socket wrench bit | 124 589 02 19 00 |
| H3 | 02/07/05/socket wrench bit | 124 589 02 19 00 |
| H4 | 02/07/05/socket wrench bit | 124 589 01 19 00 |
| H5 | 02/07/05/socket wrench bit | 124 589 02 19 00 |

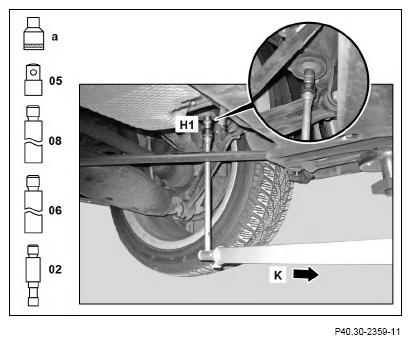

- Measure distance dimension (H1) from check point (K) to center of bolt head of front mount for rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in bolts and check for deformation.

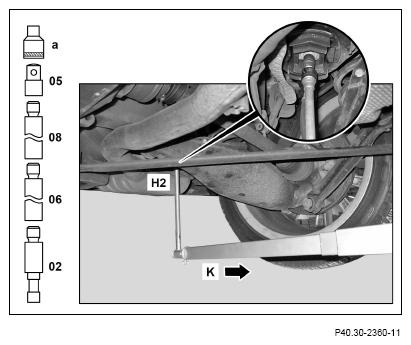

- Measure distance dimension (H2) from check point (K) to center of bolt head of rear mount for rear axle carrier. Measure on the left and right side in each case.

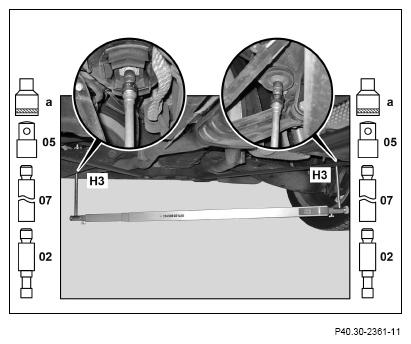

- Measure the distance dimension (H3) diagonally from the centering point of bolt heads between the front and rear bearing of the rear axle carrier.

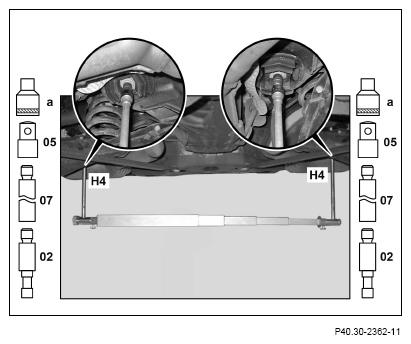

- Measure distance dimension (H4) from centering point of bolt heads between rear bearings of the rear axle carrier.

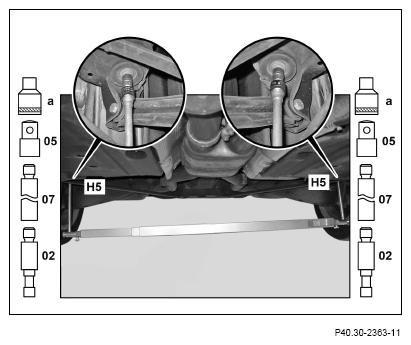

- Measure distance dimension (H5) from centering point of bolt heads between front bearings of the rear axle carrier.
