Detach, Connect Front Axle Electrical Distributor Connector - AR33.10-P-0100-06V

MODEL 171, 172

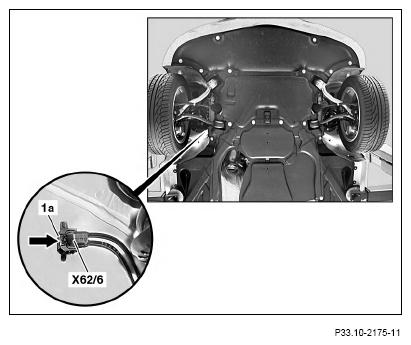

Right side of vehicle

1. Release locking clip (1a) (arrow).
2. Disconnect front axle electrical connector, right distributor (X62/6).

   Shown on model 171

   Courtesy of MERCEDES-BENZ USA

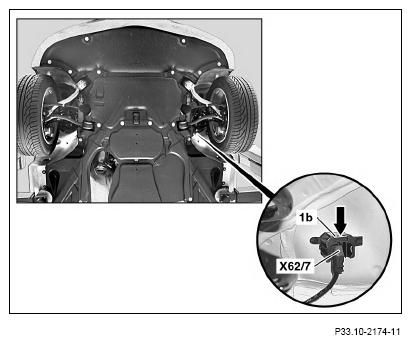

   Left side of vehicle

3. Release locking clip (1b) (arrow).
4. Disconnect front axle electrical connector, left distributor (X62/7).

   Shown on model 171

   Courtesy of MERCEDES-BENZ USA

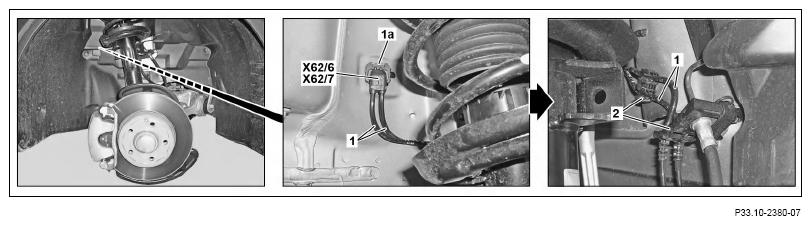

   The right front brake wear sensor connector is at the front axle electrical connector, right distributor (X62/6).

5. Unclip electrical feed lines (1) from line brackets (2) and place to one side.

Shown on model 204

Courtesy of MERCEDES-BENZ USA
