Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97TAD
Model 172.4
Ground points W15/7, W18/1, W19/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 88L |
| A1 | Instrument cluster | 15A |
| A2/30-1 | Cradle for navigation module | 45L |
| A32 | AC housing | 31L |
| A32 | AC housing | 50L |
| A50/3 | Electronic Toll Collection control unit | 48L |
| A50/6 | Dedicated Short-Range Communications control unit | 48L |
| A76 | Left reversible emergency tensioning retractor | 74A |
| A76/1 | Right reversible emergency tensioning retractor | 86A |
| A89 | DISTRONIC electric controller unit | 30A |
| A89 | DISTRONIC electric controller unit | 30A |
| A89 | DISTRONIC electric controller unit | 51A |
| A89 | DISTRONIC electric controller unit | 51A |
| B10/4 | Interior temperature sensor | 22L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 24L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 52L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 26L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 54L |
| Code 230 | Exclusive parking assist | 23G |
| Code 230 | Exclusive parking assist | 26A |
| Code 230 | Exclusive parking assist | 26B |
| Code 230 | Exclusive parking assist | 43A |
| Code 230 | Exclusive parking assist | 43B |
| Code 230 | Exclusive parking assist | 51G |
| Code 233 | DISTRONIC PLUS | 23F |
| Code 233 | DISTRONIC PLUS | 26A |
| Code 233 | DISTRONIC PLUS | 43A |
| Code 233 | DISTRONIC PLUS | 51F |
| Code 421 | 9G-TRONIC | 5A |
| Code 427 | 7G-TRONIC | 27F |
| Code 427 | 7G-TRONIC | 42F |
| Code 427 | 7G-TRONIC | 21A |
| Code 427 | 7G-TRONIC | 38A |
| Code 498 | Japan version | 46F |
| Code 508 | Navigation module preinstallation | 44G |
| Code 509 | Navigation module | 44G |
| Code 523 | Audio 20 radio | 44F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 36F |
| Code 581 | Automatic air conditioning | 21F |
| Code 581 | Automatic air conditioning | 48F |
| Code 810 | Sound system | 53A |
| Code 876 | Interior lights package | 10F |
| Code 877 | Ambiance illumination | 13F |
| Code 877 | Ambiance illumination | 32G |
| Code 877 | Ambiance illumination | 57G |
| Code 877 | Ambiance illumination | 69H |
| Code 877 | Ambiance illumination | 82H |
| Code B03 | ECO start/stop function | 19G |
| Code B03 | ECO start/stop function | 27G |
| Code B03 | ECO start/stop function | 38F |
| Code B03 | ECO start/stop function | 42G |
| Code B63 | Vehicle sound iESS | 58A |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 1G |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 59G |
| E17/15 | Right footwell lamp | 14L |
| E17/15 | Right footwell lamp | 11L |
| E17/16 | Left footwell lamp | 16L |
| E17/16 | Left footwell lamp | 12L |
| M42 | Electric oil pump | 29L |
| M42 | Electric oil pump | 43L |
| N26/5 | Electric steering lock control unit | 7L |
| N32/1 | Driver seat control unit | 65A |
| N32/1 | Driver seat control unit | 78A |
| N32/2 | Front passenger seat control unit | 69A |
| N32/2 | Front passenger seat control unit | 82A |
| N37/1 | Left NOx sensor control unit | 68L |
| N37/2 | Right NOx sensor control unit | 41L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 2L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 60L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 3L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 62L |
| N40/1 | Engine sound control unit | 60A |
| N40/3 | Sound system amplifier control unit | 55A |
| N52 | Vario roof control control unit | 85L |
| N62/1 | Radar sensors control unit | 47A |
| N69/1 | Left door control unit | 19A |
| N69/2 | Right door control unit | 36A |
| N73 | Electronic ignition switch control unit | 3A |
| N73 | Electronic ignition switch control unit | 7A |
| N80 | Steering column module control unit | 11A |
| R1 | Rear window heater | 71L |
| S10/2 | Right front brake wear sensor | 6L |
| S10/2 | Right front brake wear sensor | 56L |
| S10/2x1 | Right front brake wear sensor electrical connector | 5J |
| S10/2x1 | Right front brake wear sensor electrical connector | 55J |
| S17/9 | Glove box lamp switch | 35L |
| S40/3 | Clutch pedal switch | 18L |
| S40/5 | Start enable clutch pedal switch | 20L |
| S62/42 | Right engine hood contact switch | 39L |
| S62/7 | Glove compartment anti-theft alarm system switch | 37L |
| S76/15 | Electric parking brake switch | 8L |
| U1018 | Valid for gasoline engine 276 | 40F |
| U1018 | Valid for gasoline engine 276 | 66F |
| U1020 | Valid for gasoline engine with stratified operation | 40G |
| U1020 | Valid for gasoline engine with stratified operation | 66F |
| U12 | Valid for left-hand drive vehicles | 34A |
| U12 | Valid for left-hand drive vehicles | 63A |
| U12 | Valid for left-hand drive vehicles | 80A |
| U13 | Valid for right-hand drive vehicles | 1A |
| U13 | Valid for right-hand drive vehicles | 67A |
| U13 | Valid for right-hand drive vehicles | 76A |
| U135 | Valid for Electronic Toll Collection | 46G |
| U19 | Valid for standard equipment | 30F |
| U24 | Valid for manual transmission | 17G |
| U240 | Valid for all except ECO start/stop function | 17H |
| U265 | Not valid for pedestrian protection | 38G |
| U362 | Valid for gasoline engine 274 | 17G |
| U739 | Valid for gasoline engine 271 DE | 17F |
| U775 | Valid for emergency tensioning retractor | 71A |
| U775 | Valid for emergency tensioning retractor | 84A |
| U948 | Valid for diesel engine 651 | 17G |
| U948 | Valid for diesel engine 651 | 1F |
| U948 | Valid for diesel engine 651 | 59F |

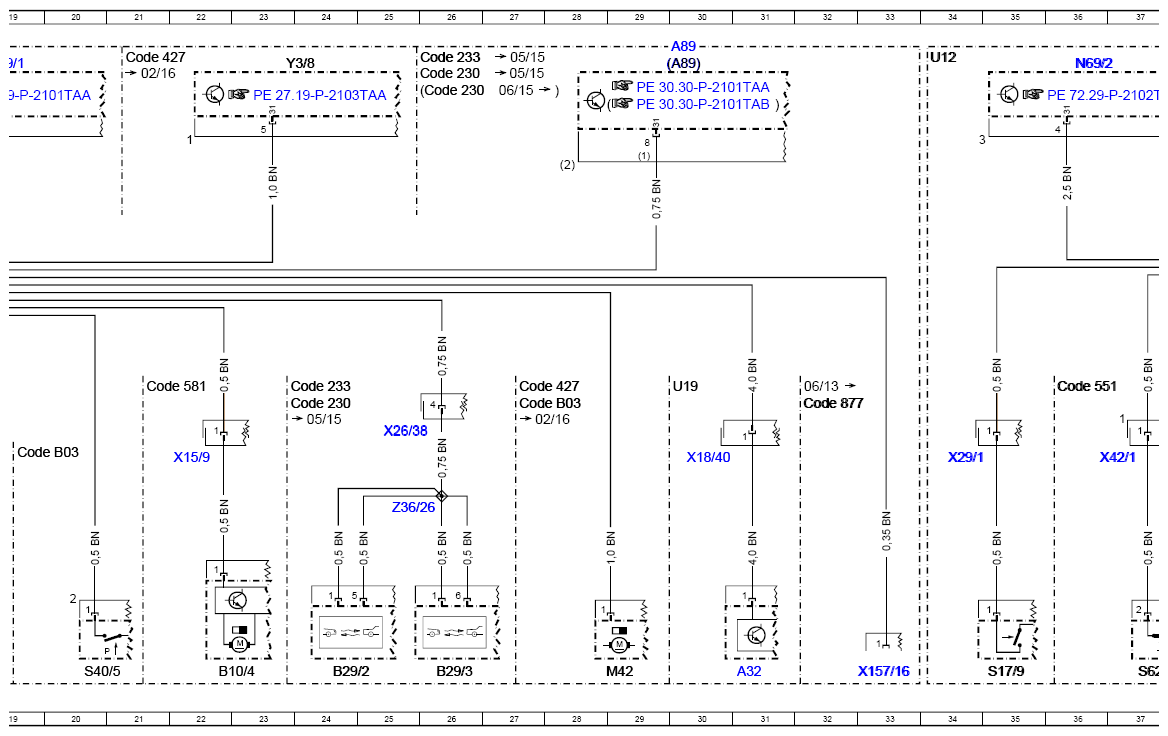

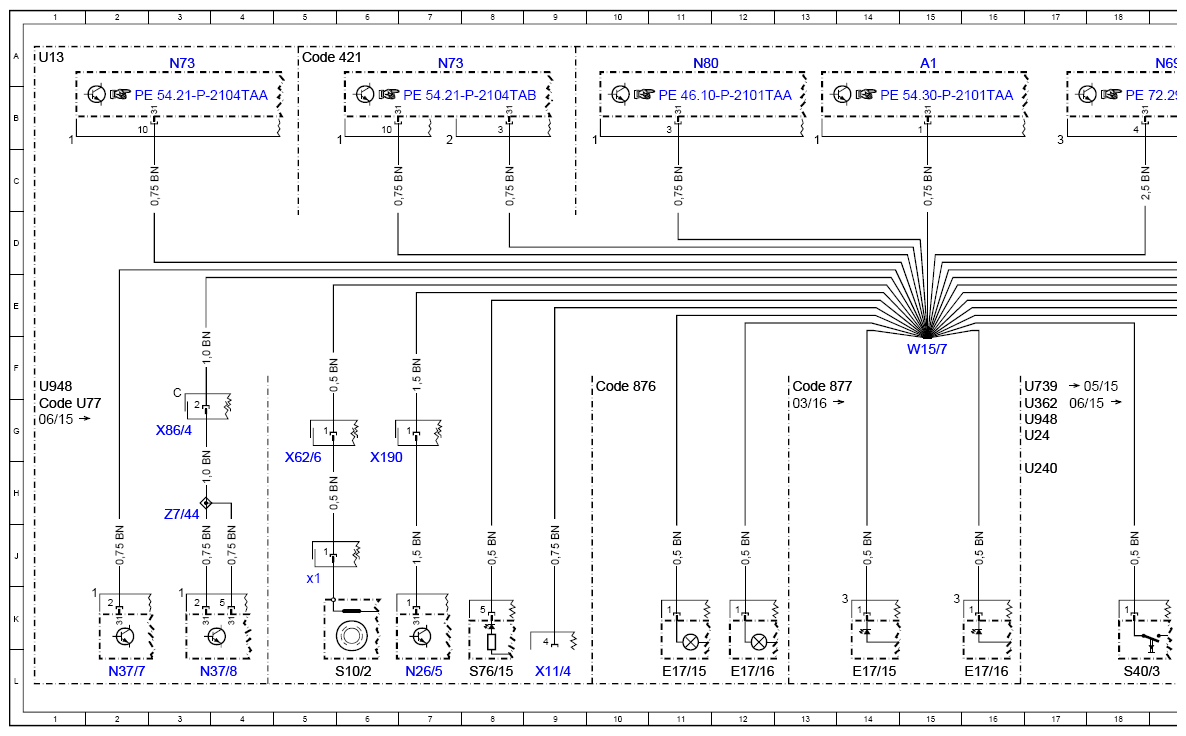

| W15/7 | Right front footwell ground point | 15F |

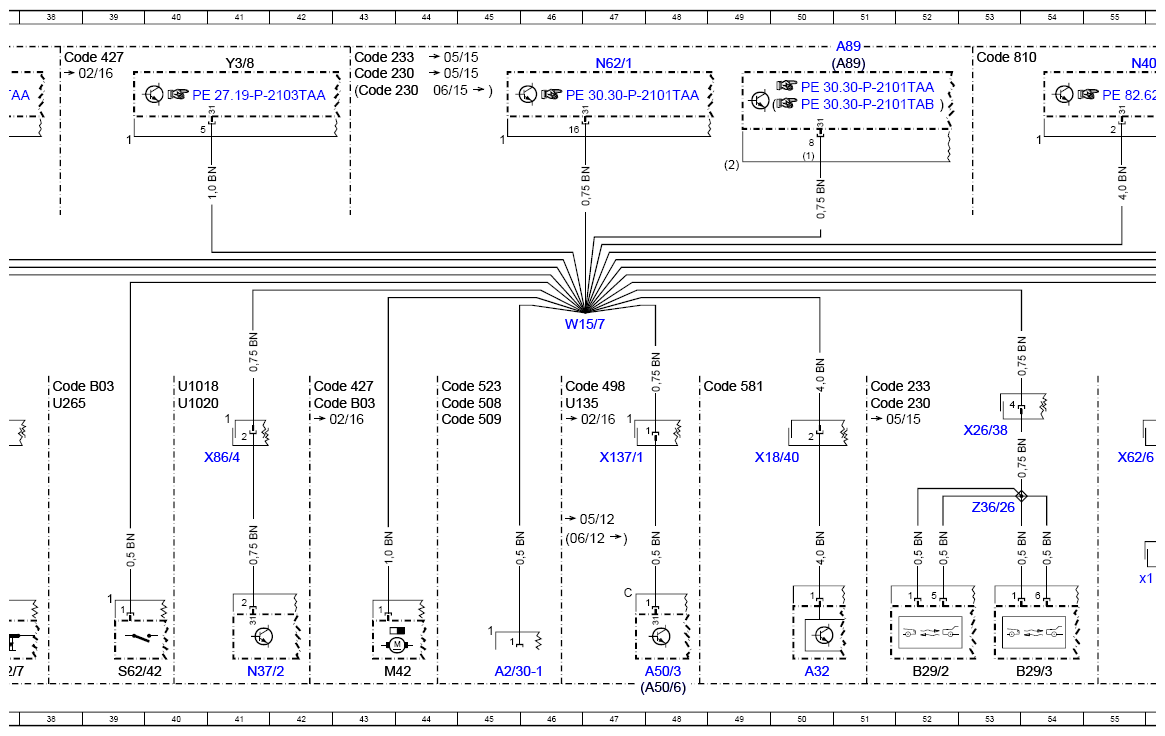

| W15/7 | Right front footwell ground point | 46E |

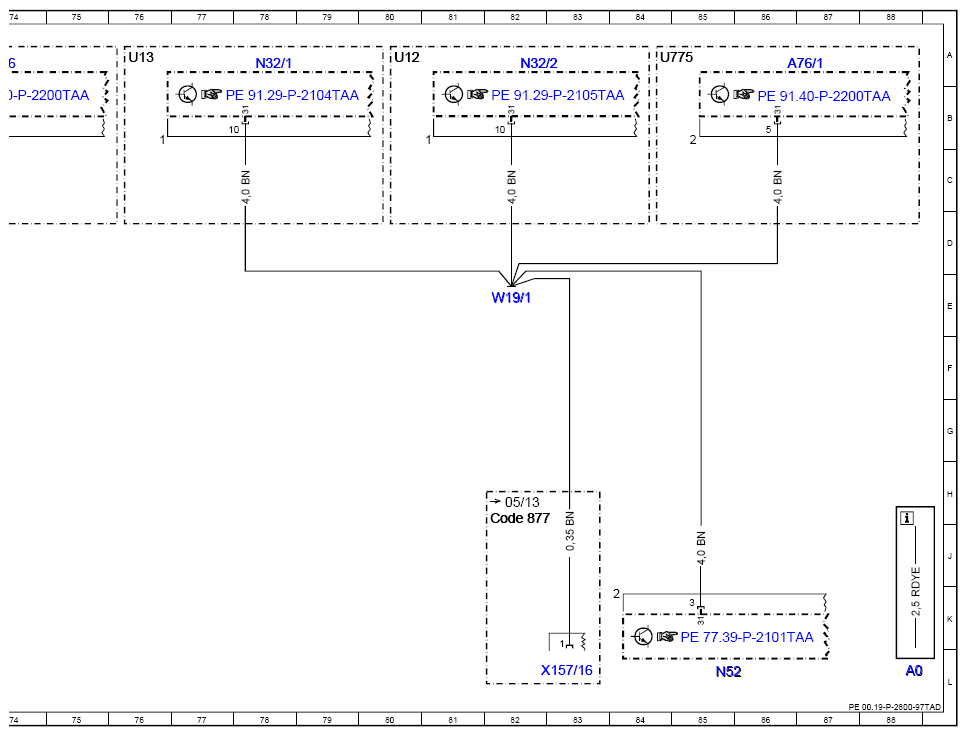

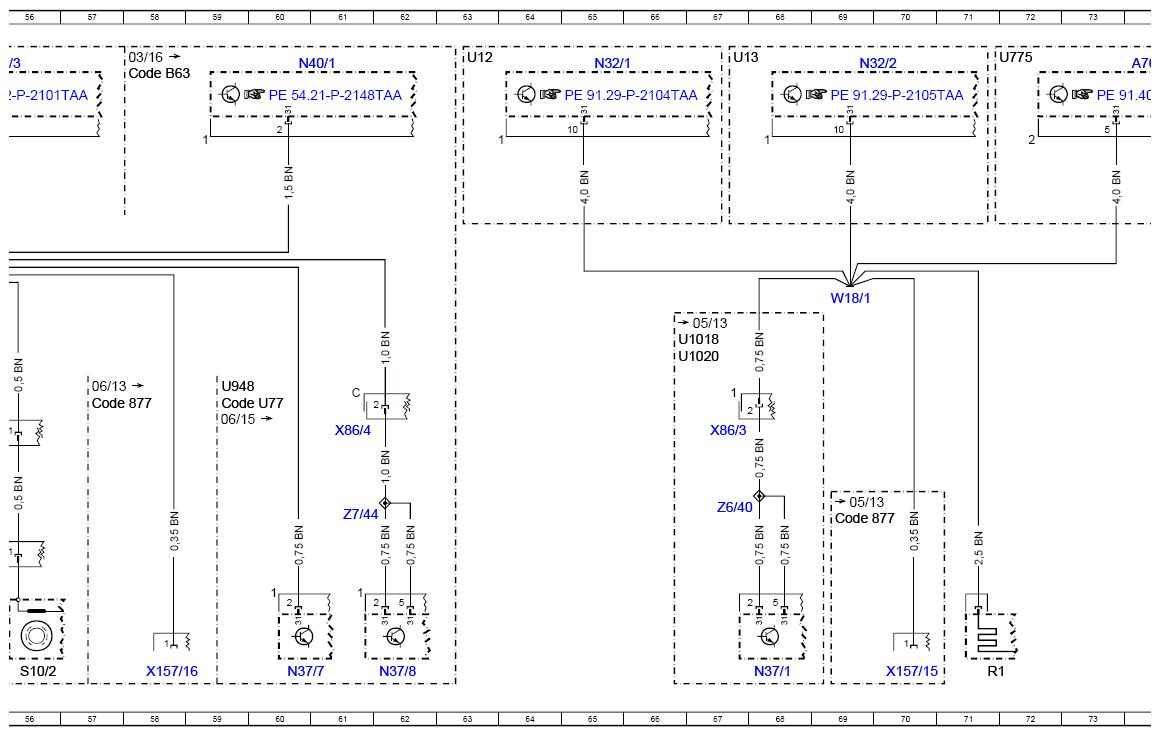

| W18/1 | Center rear crossmember ground point | 69E |
| W19/1 | Right front seat crossmember ground point | 82E |
| X11/4 | Diagnostic connector | 9L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 47H |
| X15/9 | Interior temperature sensor electrical connector | 22H |
| X157/15 | Left illuminated door sill molding electrical connector | 70L |
| X157/16 | Right illuminated door sill molding electrical connector | 33L |
| X157/16 | Right illuminated door sill molding electrical connector | 58L |
| X157/16 | Right illuminated door sill molding electrical connector | 83L |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 30H |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 50H |
| X190 | Instrument panel and electric steering lock electrical connector | 6H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 25G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 53G |
| X29/1 | Glove compartment electrical connector | 34H |
| X42/1 | Anti-theft alarm system/glove compartment switch electrical connector | 37H |
| X62/6 | Front axle electrical connector, right distributor | 5H |
| X62/6 | Front axle electrical connector, right distributor | 55H |
| X86/3 | Left nitrogen oxides control unit electrical connector | 67G |
| X86/4 | Right nitrogen oxides control unit electrical connector | 3G |
| X86/4 | Right nitrogen oxides control unit electrical connector | 41H |
| X86/4 | Right nitrogen oxides control unit electrical connector | 61G |
| Y3/8 | Fully integrated transmission control control unit | 23A |
| Y3/8 | Fully integrated transmission control control unit | 41A |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 25H |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 53H |
| Z6/40 | NOx sensor connector sleeve | 67H |
| Z7/44 | Sensor ground connector sleeve | 3H |
| Z7/44 | Sensor ground connector sleeve | 61H |
