Secure Vehicle On Vehicle Lift - AR00.60-P-0100T

MODEL 171, 172, 203, 209, 211

Shown on model 211

Courtesy of MERCEDES-BENZ USA

	Attach, remove
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
		The vehicle lift safety devices (01) must always be mounted in pairs i.e. at two positions in the vehicle longitudinal members. The vehicle lift safety devices (01) can both be mounted at the front, at the rear or on one side. Vehicle lift safety device	Fig 1
1	Remove plastic screws (2) of vehicle lift, supports (1)
2	Pry vehicle lift supports (1) out of longitudinal members	Do not use any sharp-edge tools, as this will result in damage to the longitudinal member.
3	Insert vehicle lift safety devices (01) into longitudinal members	Vehicle lift safety device	Fig 1
4	Swivel lever (01a) of vehicle lift safety devices (01) to the right	The vehicle lift safety devices (01) are thereby locked onto the longitudinal members.
5	Adjust support plates (4) of vehicle lift support arms (3) to the height of the vehicle lift safety devices (01) or the height of the remaining vehicle lift supports (1)	Rotate support plates (4) until they make contact with the lifting platform safety devices (01) or the lifting platform supports (1 of the longitudinal members.
6	Raise vehicle with vehicle lift
7	Secure vehicle lift safety devices (01) to vehicle lift support arms using tensioning straps
8	Dismantle in the reverse order

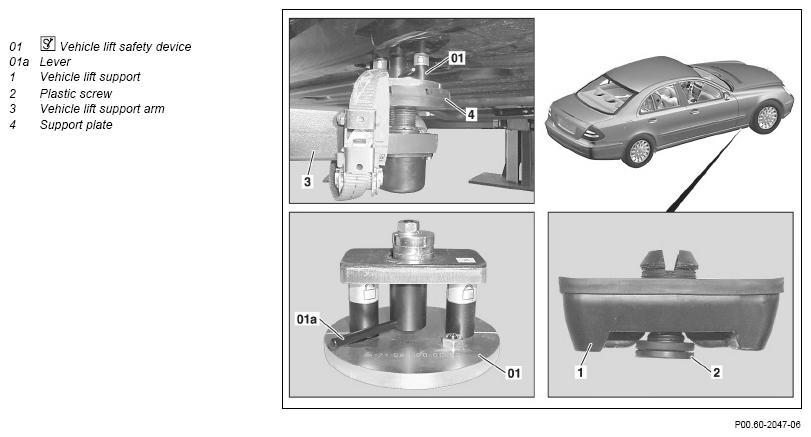

Fig 1: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
