Remove/Install Left Or Right Rear Axle Speed Sensor - AR42.40-P-0820LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293
MODIFICATION NOTES
| 20.04.2021 | Raise vehicle. | Operation step 1.2. |
Shown on model 205
Shown on model 213
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1.1 | Remove rear wheel. | Model 205, 253, 293 | AR40.10-P-1102A |
| 1.2 | Raise vehicle. | Model 205, 213 | AR00.60-P-1006A |

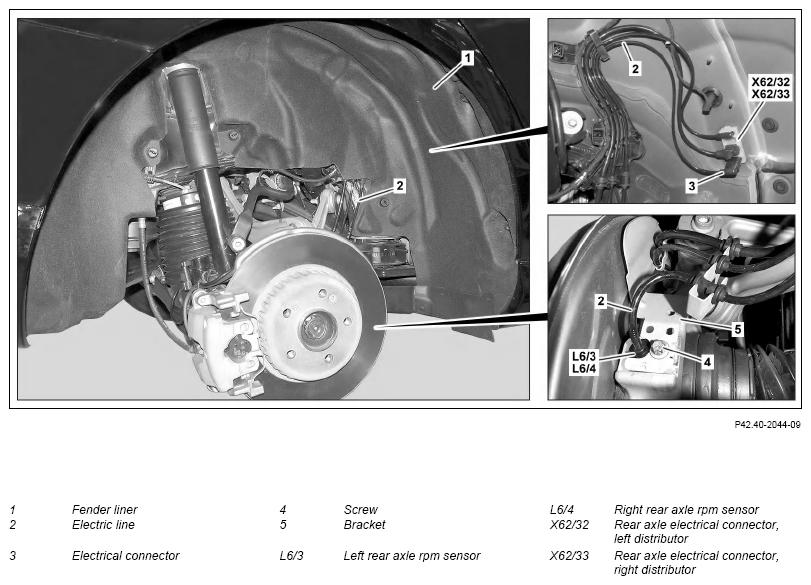

| 2 | Release fender liner (1) in front area until electrical connector (3) is accessible and electric line (2) can be exposed. | Model 205, 253, 293 | AR88.10-P-1400LW |
| 3.1 | Disconnect electrical connector (3) from rear axle left distributor electrical connector (X62/32) or rear axle right distributor electrical connector (X62/33). | Model 205, 253, 293 | |
| 3.2 | Release and disconnect electrical connector (6). | Model 213 | |
| 4 | Unscrew bolt (4). | *BA42.30-P-1001-02K | |

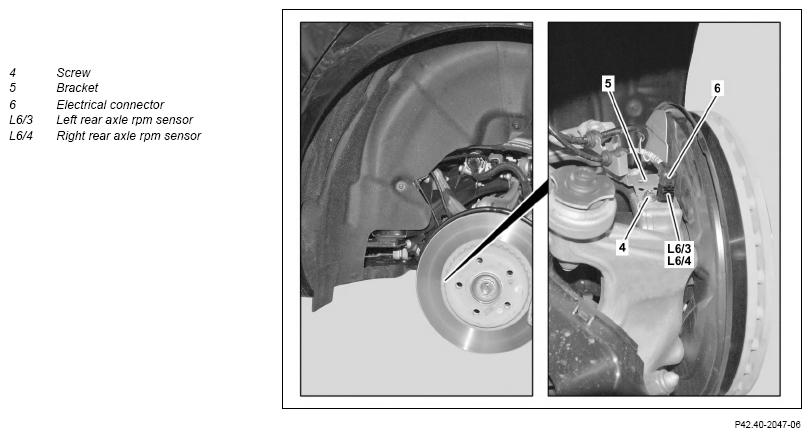

| 5 | Remove holder (5) from left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4) and hook up to one side. | Model 205, 213, 253 (except 253.388/389/988/989), 293 | |
| 6.1 | Expose electric line (2) of left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4) and remove left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4). | Model 205, 253, 293 | |
| 6.2 | Remove left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4). | Model 213 | |
| 7 | Install in the reverse order. | ||
| 8 | Read out fault memory using diagnostic system and delete, if necessary. | ||
| Model 205, 213, 253 | AD00.00-P-2000-04B | ||
| Model 293 | AD00.00-P-2000-06FR |
REAR AXLE RPM SENSOR
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA42.30-P-1001-02K | Bolt, RPM sensor to wheel carrier | Nm | 8 | 8 |
REAR AXLE RPM SENSOR
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA42.30-P-1001-02K | Bolt, RPM sensor to wheel carrier | Nm | 8 | 8 |
