Wiring Diagram Of Front Backup Fuse Box (F32) - PE54.15-P-2502-97TAB
Model 172.4
except code B03 (ECO start/stop function)
Fuse Box (F32/5)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A32 | AC housing | 42L |
| A32m1 | Blower motor | 44L |
| A32m1x1 | Blower motor electrical connector | 44J |
| A32n1 | Blower regulator | 43L |
| A32z1 | Air conditioner housing connector sleeve | 42H |
| A91/1 | Electrohydraulic power steering | 30L |
| Code 421 | 9G-TRONIC | 33F |

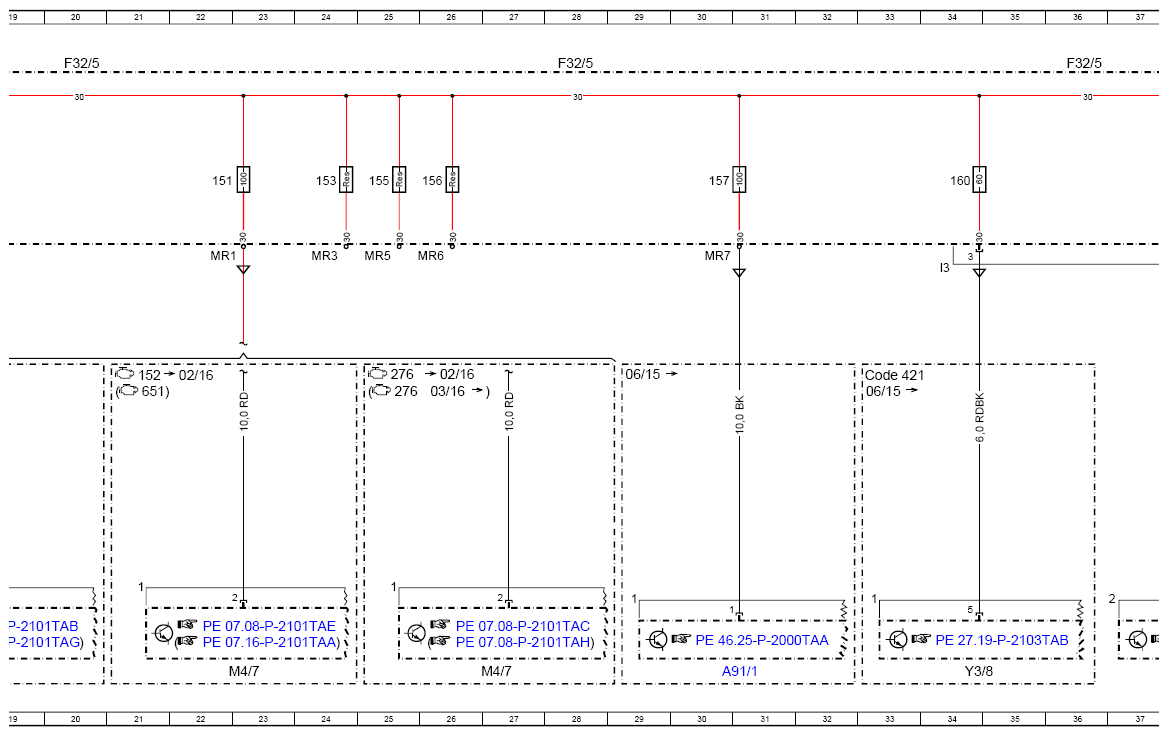

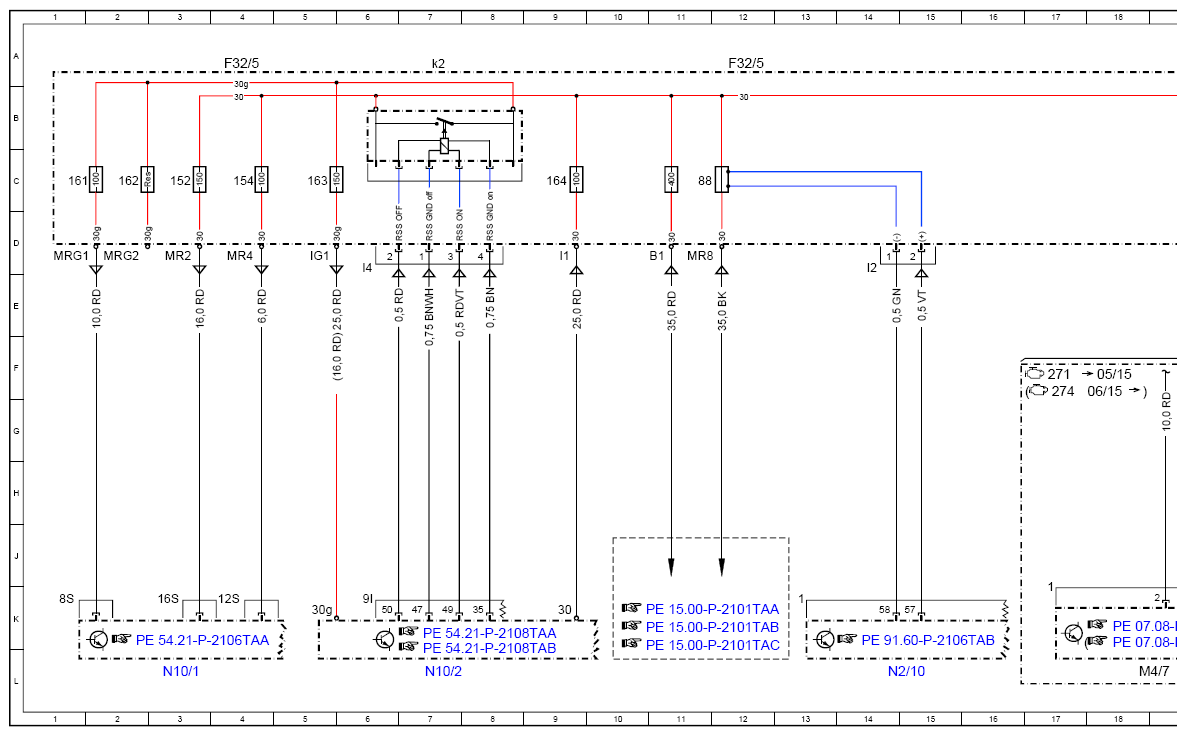

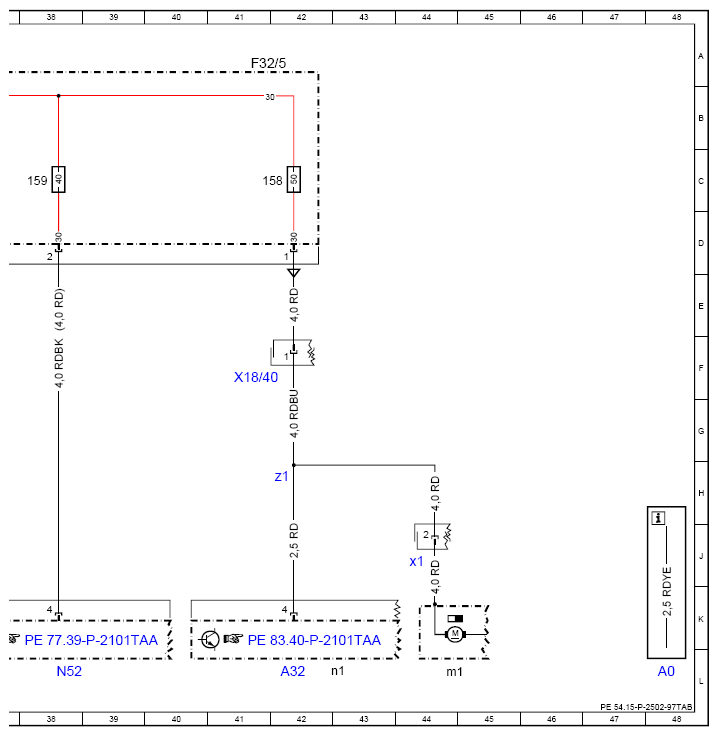

| F32/5 | Pre-fuse box without ECO start/stop function | 4A |
| F32/5 | Pre-fuse box without ECO start/stop function | 12A |
| F32/5 | Pre-fuse box without ECO start/stop function | 20A |
| F32/5 | Pre-fuse box without ECO start/stop function | 28A |
| F32/5 | Pre-fuse box without ECO start/stop function | 36A |
| F32/5 | Pre-fuse box without ECO start/stop function | 41A |
| F32/5f151 | Pre-fuse 151 | 22C |
| F32/5f152 | Pre-fuse 152 | 3C |
| F32/5f153 | Pre-fuse 153 | 24C |
| F32/5f154 | Pre-fuse 154 | 4C |
| F32/5f155 | Pre-fuse 155 | 25C |
| F32/5f156 | Pre-fuse 156 | 26C |
| F32/5f157 | Pre-fuse 157 | 30C |
| F32/5f158 | Pre-fuse 158 | 42C |
| F32/5f159 | Pre-fuse 159 | 38C |
| F32/5f160 | Pre-fuse 160 | 34C |
| F32/5f161 | Pre-fuse 161 | 1C |
| F32/5f162 | Pre-fuse 162 | 2C |
| F32/5f163 | Pre-fuse 163 | 5C |
| F32/5f164 | Pre-fuse 164 | 9C |
| F32/5f88 | Pyro-fuse 88 | 11C |
| F32/5k2 | Quiescent current cutout relay | 7A |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 18L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 23L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 27L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 7L |
| N2/10 | Supplemental restraint system control unit | 14L |
| N52 | Vario roof control control unit | 38L |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 41F |
| Y3/8 | Fully integrated transmission control control unit | 34L |
