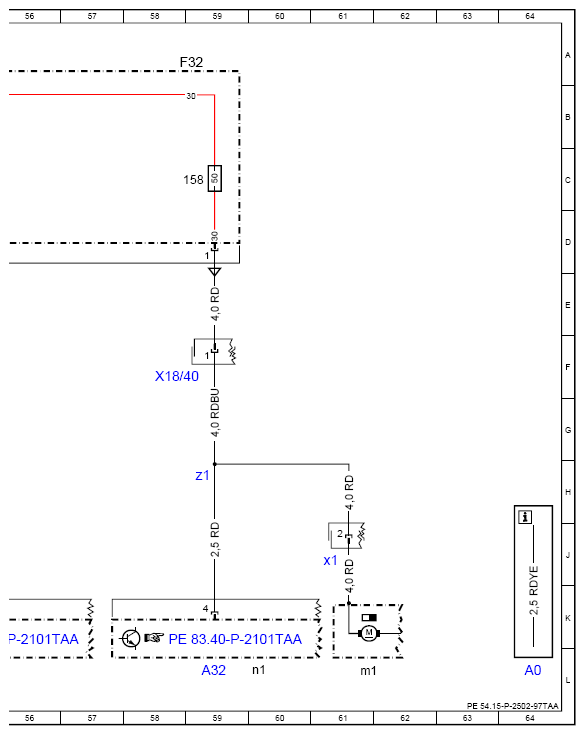

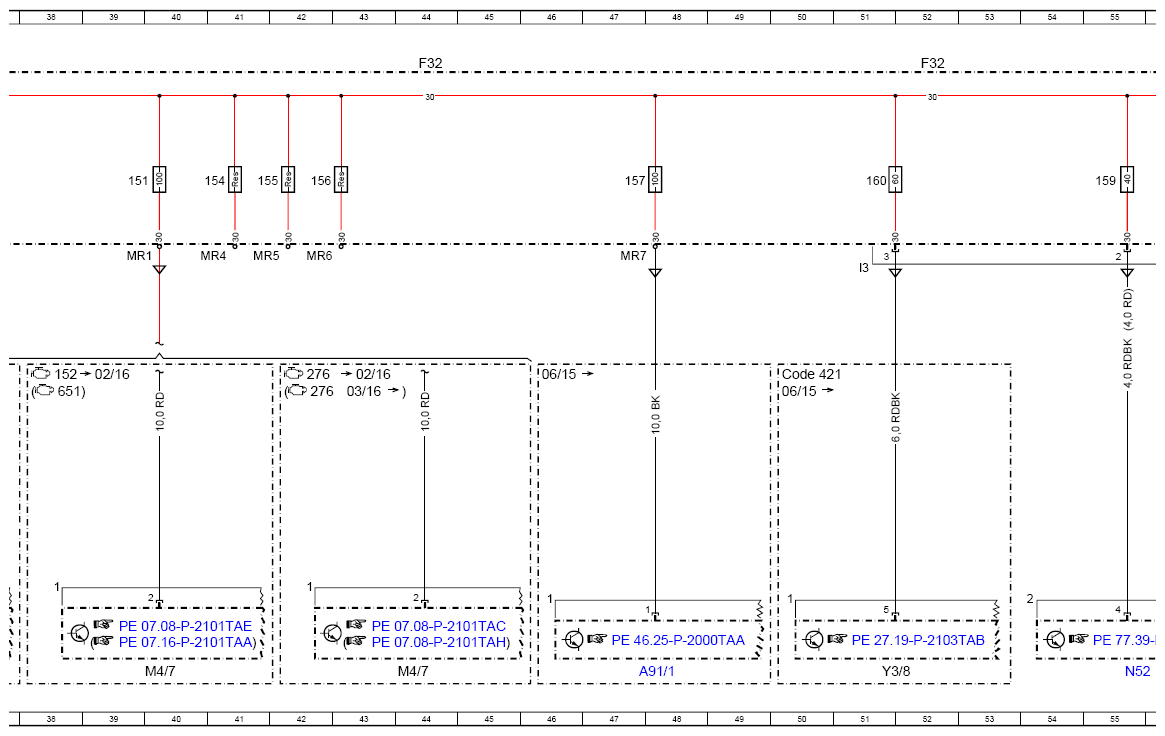

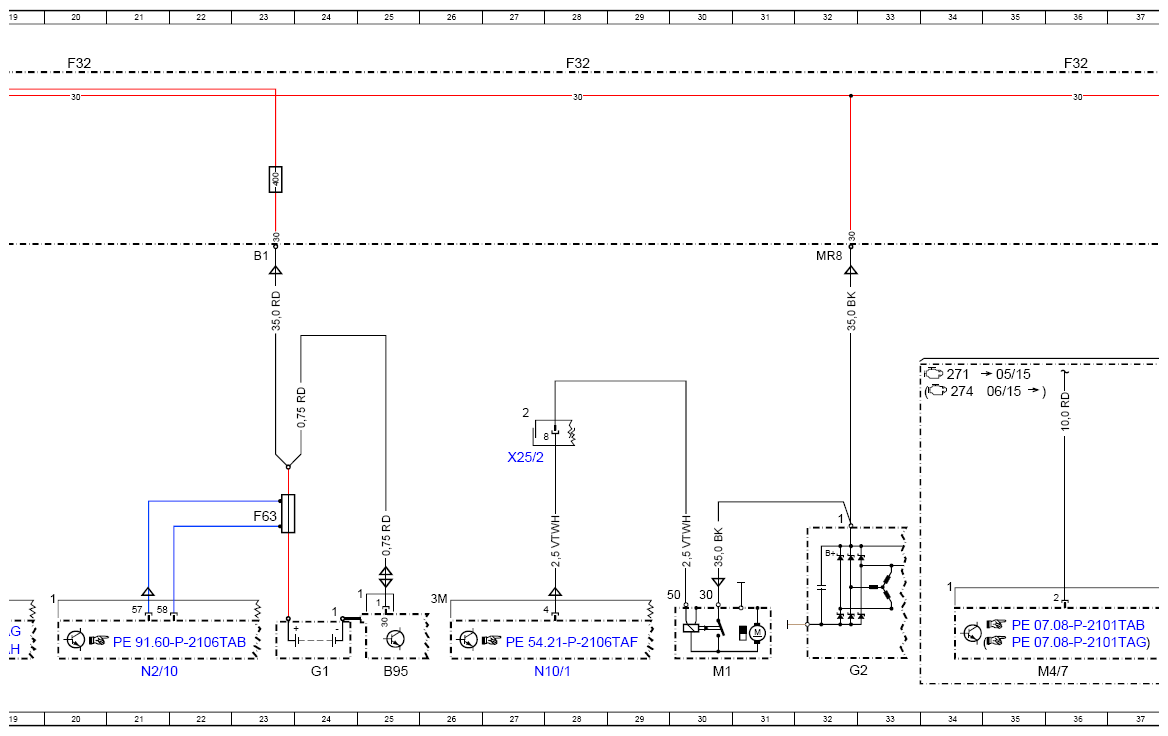

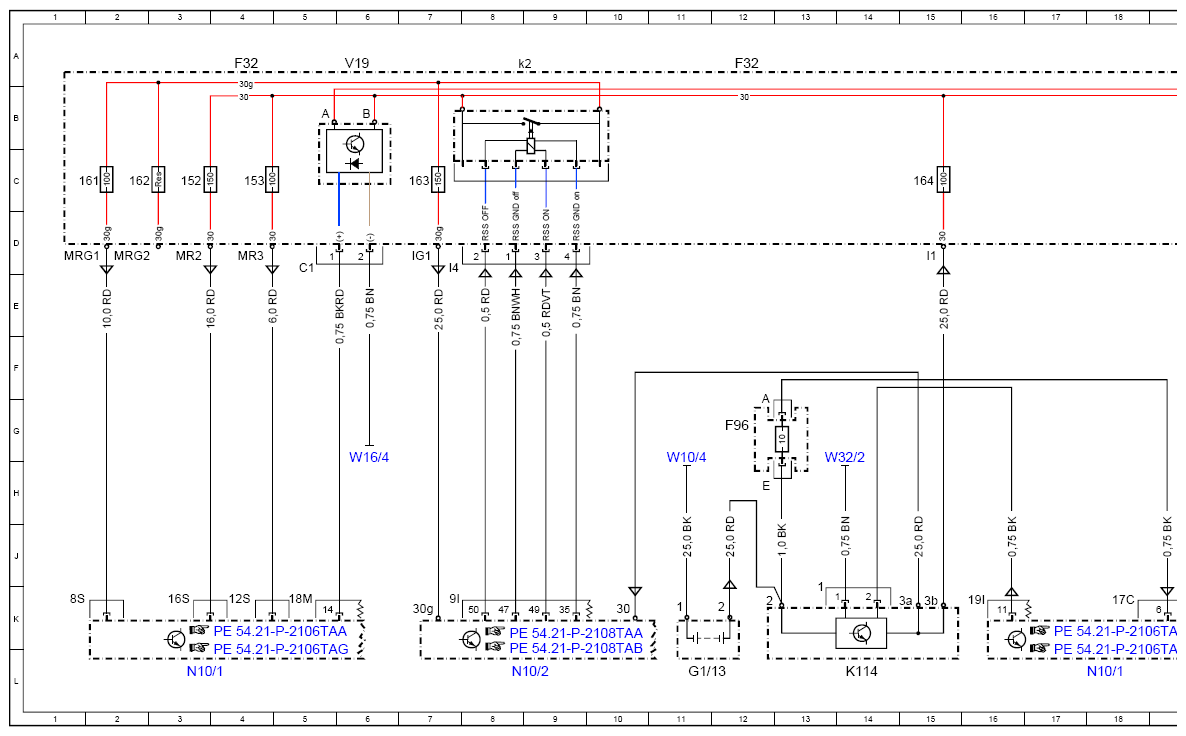

Wiring Diagram Of Front Backup Fuse Box (F32) - PE54.15-P-2502-97TAA
Model 172.4
with code B03 (ECO start/stop function)
Fuse Box (F32)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A32 | AC housing | 59L |
| A32m1 | Blower motor | 61L |
| A32m1x1 | Blower motor electrical connector | 61J |
| A32n1 | Blower regulator | 60L |
| A32z1 | Air conditioner housing connector sleeve | 59H |
| A91/1 | Electrohydraulic power steering | 48L |
| B95 | Battery sensor | 25L |
| Code 421 | 9G-TRONIC | 50F |
| F32 | Front pre-fuse | 4A |
| F32 | Front pre-fuse | 12A |
| F32 | Front pre-fuse | 20A |
| F32 | Front pre-fuse | 28A |
| F32 | Front pre-fuse | 36A |
| F32 | Front pre-fuse | 44A |
| F32 | Front pre-fuse | 52A |
| F32 | Front pre-fuse | 59A |
| F32f151 | Pre-fuse 151 | 39C |
| F32f152 | Pre-fuse 152 | 3C |
| F32f153 | Pre-fuse 153 | 4C |
| F32f154 | Pre-fuse 154 | 41C |
| F32f155 | Pre-fuse 155 | 41C |
| F32f156 | Pre-fuse 156 | 42C |
| F32f157 | Pre-fuse 157 | 47C |
| F32f158 | Pre-fuse 158 | 59C |
| F32f159 | Pre-fuse 159 | 55C |
| F32f160 | Pre-fuse 160 | 51C |
| F32f161 | Pre-fuse 161 | 2C |
| F32f162 | Pre-fuse 162 | 2C |
| F32f163 | Pre-fuse 163 | 7C |
| F32f164 | Pre-fuse 164 | 15C |
| F32k2 | Quiescent current cutout relay | 8A |
| F63 | Pyro-fuse | 23H |
| F96 | Additional battery circuit 30 fuse | 12G |
| G1 | On-board electrical system battery | 24L |
| G1/13 | ECO start/stop function additional battery | 11L |
| G2 | Alternator | 32L |
| K114 | ECO start/stop function additional battery relay | 14L |
| M1 | Starter | 30L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 36L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 40L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 44L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 18L |
| N10/1 | Front SAM control unit with fuse and relay module | 27L |
| N10/2 | Rear SAM control unit with fuse and relay module | 8L |
| N2/10 | Supplemental restraint system control unit | 21L |
| N52 | Vario roof control control unit | 55L |
| V19 | ECO start/stop function diode | 6A |
| W10/4 | 2nd battery ground point | 11G |
| W16/4 | Right major assembly compartment ground point | 6H |
| W32/2 | Right rear panel ground point | 13G |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 58F |
| X25/2 | Engine compartment/vehicle interior electrical connector | 27H |
| Y3/8 | Fully integrated transmission control control unit | 51L |
