Remove/Install Electric Parking Brake Control Unit - AR42.20-P-0610W

Model 172

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.

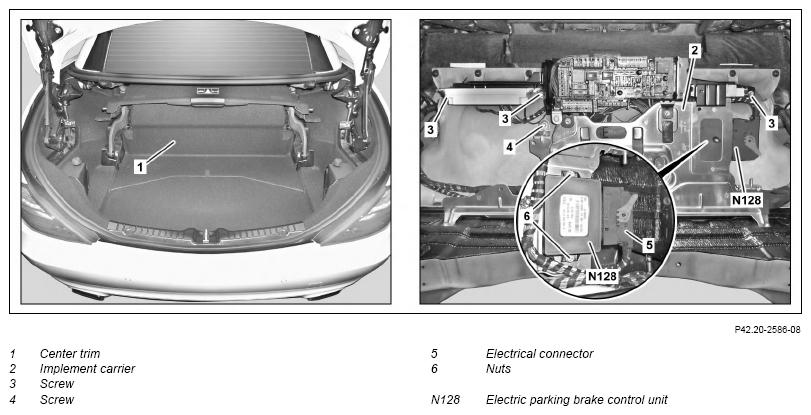

2	Remove center paneling (1)		AR68.30-P-4600W
3	Remove Bolts (3) from equipment carrier (2)	Rechargeable drill/ Screwdriver	*BA54.21-P-1005-01A
4	Remove Bolt (4) and swivel equipment carrier (2) back far enough until nuts (6) are accessible		*BA54.21-P-1006-01A
5	Disconnect electrical connector (5) from electric parking Brake control unit (N128)
6	Unscrew nuts (6) and remove electric parking Brake control unit (N128)	: Make sure that no electrical lines are pinched when inserting the electric parking Brake control unit (N128).	*BA42.20-P-1007-01A
7	Install in the reverse order
8	Perform initial startup of electric parking Brake control unit (N128) using Star Diagnosis	When installing a new electric parking Brake control unit (N128).	AD00.00-P-2000-04A

PARKING BRAKE

Number	Designation		Model 172
BA42.20-P-1007-01A	Nut, electric parking Brake controller unit to bracket	Nm	6

CONTROL UNITS

Number	Designation		Model 172
BA54.21-P-1005-01A	Bolt, equipment carrier to body, retractable partition bracket and tank partition wall	Nm	10
BA54.21-P-1006-01A	Bolt, equipment carrier to body/tank partition wall	Nm	6
