Overview Of System Components, Adaptive Brake (ABR) - GF42.47-P-9997RD
Model 172.4
up to Model year 2017

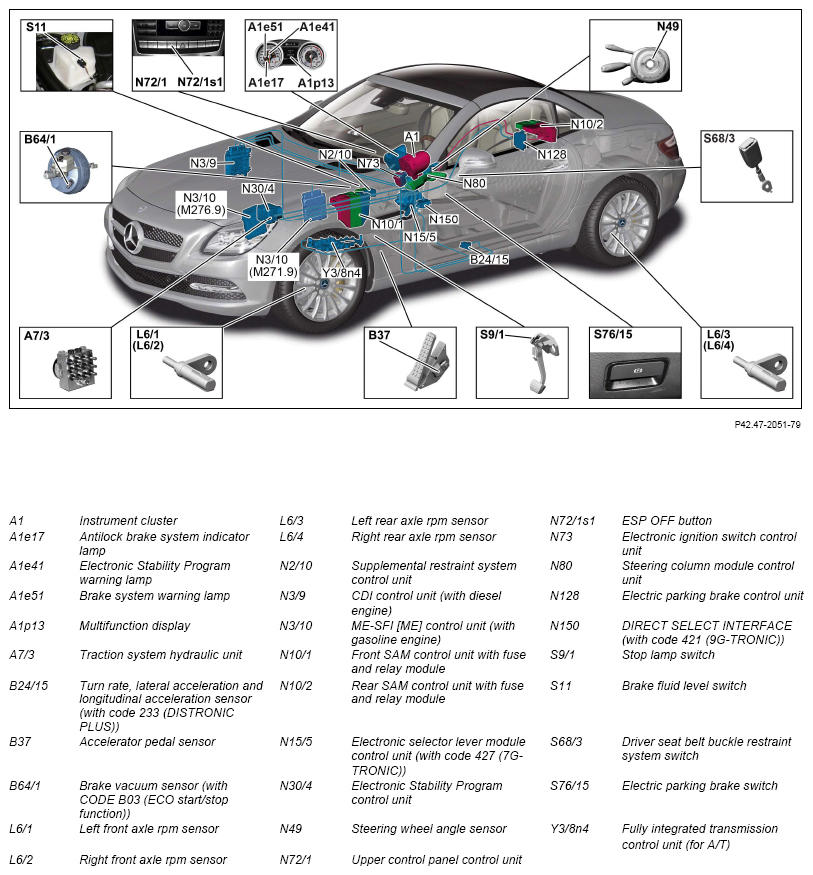

Overview of system components
| Component description for instrument cluster | A1, A1e17, A1e41, A1e51, A1p13 | GF54.30-P-6000RD | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 172.4 up to Model year 2017 with code 233 (DISTRONIC PLUS) B24/15 |
GF42.45-P-4810RD | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 up to Model year 2017 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 271.861 up to Model year 2017 |
GF07.61-P-6000MGA | |
| Model 172.4 with engine 276.9 up to Model year 2017 N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | Model 172 with transmission 722.9 up to Model year 2017 N15/5 |
GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RD | |
| Upper control panel control unit, component description | N72/1 N72/1s1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking Brake control unit, component description | N128 | GF42.20-P-5005RD | |
| DIRECT SELECT interface, component description | Model 172 with transmission 725.0 up to Model year 2017 N150 |
GF27.19-P-1300ANH | |
| Component description for fully integrated transmission control unit | Model 172 with transmission 725.0 up to Model year 2017 |
GF27.60-P-5165ANH | |
| Model 172 with transmission 722.9 up to Model year 2017 Y38n4 |
GF27.60-P-5165AHN | ||
| Table of contents for function description, adaptive Brake (ABR) | GF42.47-P-0999RD |
