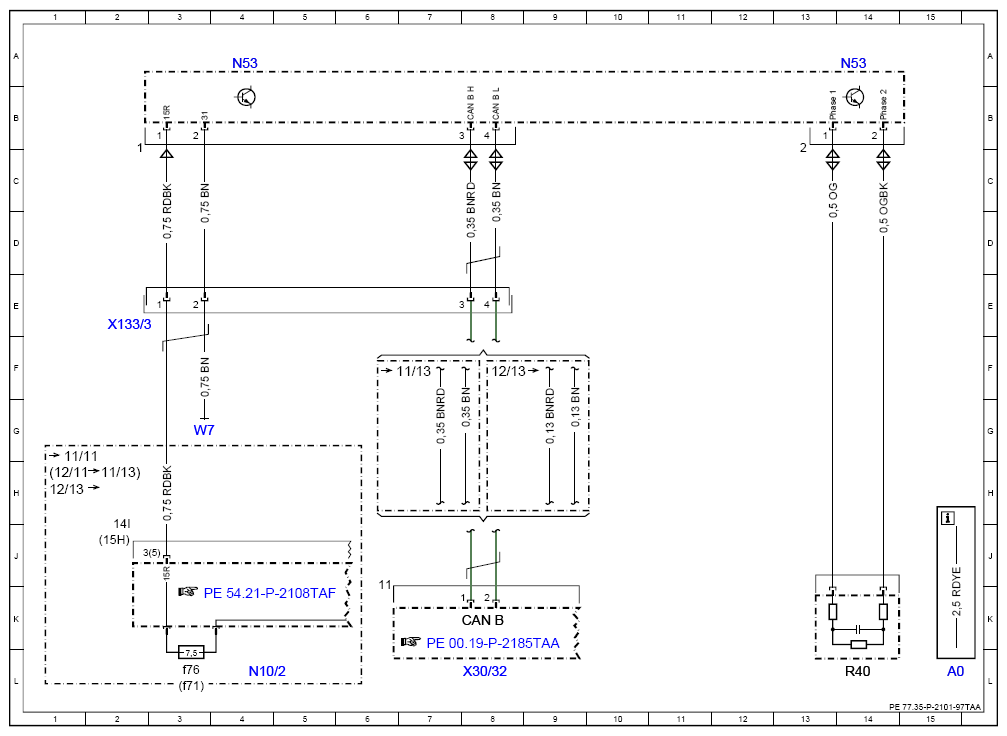

Wiring Diagram For MAGIC SKY CONTROL Control Unit - PE77.35-P-2101-97TAA
MODEL 172.4
with CODE 412 (Glass Vario roof)
Control unit N53
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN B | Interior CAN | 8K |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f71 | Fuse 71 | 3L |
| N10/2f76 | Fuse 76 | 3L |
| N53 | MAGIC SKY CONTROL control unit | 4A |
| N53 | MAGIC SKY CONTROL control unit | 14A |
| R40 | MAGIC SKY CONTROL roof | 14L |
| W7 | Right wheelhouse trunk ground point | 3G |
| X133/3 | MAGIC SKY CONTROL electrical connector | 2E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 8L |
